Ultra-Wideband MMIC Mixer Covers Applications from 5 to 21.5 GHz!

Mini-Circuits MDB-24H+

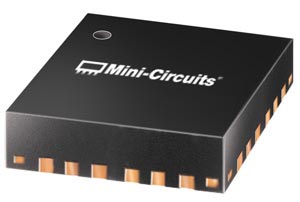

Mini-Circuits’ new MDB-24H+ ultra-wideband double-balanced MMIC frequency mixer provides an RF and LO frequency range from 5 to 21.5 GHz and an IF frequency range from DC to 5 GHz. Ultra-wideband coverage in a single device makes this mixer suitable for wideband systems such as defense communications and radar, as well as a wide variety of narrowband applications from Wi-Fi through Ku band and more!

Mini-Circuits - MDB-24H+

The mixer operates on +15 dBm LO power and provides low conversion loss (6.9 to 10.3 dB), 44 dB L-I isolation, 28 dB L-R isolation, and +21 dBm IP3. Fabricated using InGaP HBT technology, the MDB-24H+ integrates LO and RF baluns and comes housed in a tiny 4 × 4mm 24-pad MCLP package with low inductance, repeatable transitions, and excellent thermal contact to the PCB. This model is also footprint compatible with Hittite model HMC144LC4, making it suitable for use as a replacement part in legacy systems.

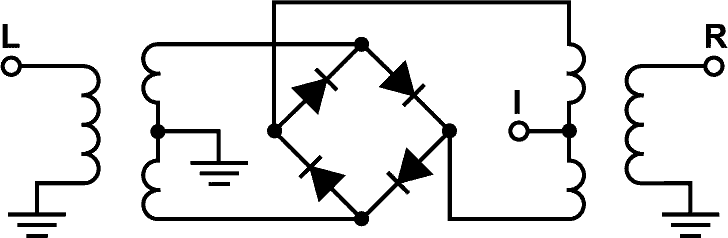

 Simplified MDB-24H+ schematic
Simplified MDB-24H+ schematic.

 The MDB-24H+ ultra-wideband MMIC mixer is available from stock for $7.45 each (qty. 50). Place your order online today for delivery as soon as tomorrow!
