Broadcom Announces Industry's Most Efficient and Robust Current Sensing Optocoupler Solution for Servo Drives and Motors

Broadcom ACPL-C799

New Optically Isolated Sigma-Delta Modulator Eliminates 75% of Shunt Resistor’s Power Losses

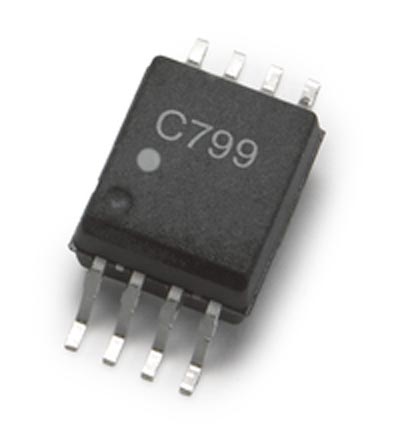

Broadcom Limited announced a new optically isolated sigma-delta modulator device, the Avago ACPL-C799, designed for a wide range of industrial applications including servo drives and motors. The new device features a low differential input range of ±50 mV allowing designers to reduce power dissipation across a current-sensing shunt resistor in servo drive and motor applications.

Broadcom - Avago ACPL-C799

Compared to previous generation products with an input range of ±200 mV, the ACPL-C799 enables the use of a smaller shunt resistor with one-quarter the value, thereby eliminating 75 percent (75%) of shunt resistor’s power losses. Despite the reduced input voltage range, the device delivers superb SNR, ENOB and offset drift performance, enabling a high precision motor control in space constrained, high temperature environments.

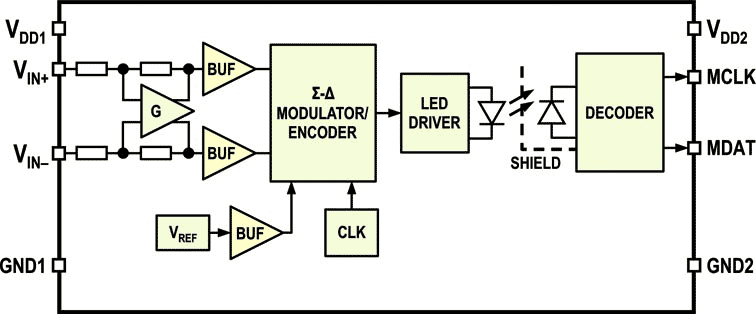

The ACPL-C799 Functional Block Diagram
The ACPL-C799 Functional Block Diagram.

Product Highlights

  • ±50 mV linear input range
    • Low power dissipation across shunt resistor
    • Extended range of current measurements
  • High performance 1-bit, 2nd order sigma-delta modulator
    • 77 dB SNR typical
    • 16-bit resolution with no missing codes (12-bit ENOB)
    • 1.3 µV/°C maximum offset drift over temperature
    • 10 MHz internal clock
  • Robust optical isolation and insulation
    • 25 kV/µs minimum common mode transient immunity (CMTI)
    • Wide creepage and clearance of 8.3 mm meeting stringent system level safety regulation
    • High reinforced insulation voltage of VIORM = 1414 VPEAK for reliable fail-safe protection in high voltage applications
    • Safety approvals from CSA, UL and IEC enabling fast system level safety clearance and time to market.
  • Compact stretched SO-8 package
  • Operating temperature from –40 °C to +105 °C

Availability

Samples and production quantities of the ACPL-C799 are now available through the Broadcom direct sales channel and via worldwide distribution partners. Please contact your local Broadcom sales representative for pricing.
