Rail-to-Rail Op Amps Feature Precision & Power Efficiency

Linear Technology LTC6258 LTC6259 LTC6260 LTC6261 LTC6262 LTC6263

Linear Technology introduces the LTC6258/59/60 and LTC6261/62/63, single/dual/quad op amps, extending its line of power efficient, low noise, precision operational amplifiers. These devices are part of a family of power efficient op amps ranging from 1.3 MHz GBW product at 20 μA supply current to 720 MHz GBW product at 3.3 mA supply current. The latest family members operate on 1.8 V to 5.25 V supply, feature rail-to-rail inputs and outputs, and include versions with shutdown mode, further reducing power consumption during periods of inactivity. Input offset voltage is just 400 μV max. The devices are fully specified over the industrial (I) (–40 °C to 85 °C) and extended (H) (–40 °C to 125 °C) temperature ranges.

Linear Technology - LTC6258, LTC6259, LTC6260, LTC6261, LTC6262, LTC6263

With supply current of only 20 μA per amplifier, the LTC6258/59/60 achieve 1.3 MHz gain bandwidth product and 240 V/ms slew rate. They include input EMI filters which provide 45 dB rejection at 1 GHz. They are stable for any gain and with any capacitive load. The LTC6261/62/63 achieve 30 MHz GBW product and 7 V/μs slew rate, drawing just 240 μA per amplifier. Wideband voltage noise is just 13 nV/√Hz. They are stable for any gain and for capacitive loads up to 1 nF.

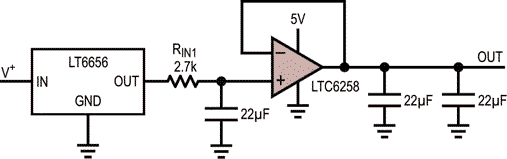

Typical Application: Low Noise Reference
Typical Application: Low Noise Reference.

The single LTC6258 and LTC6261 are available in a space saving 2 mm × 2 mm DFN package, priced starting at $1.24 each in quantities of 1000 pieces. The dual LTC6259 and LTC6262 are available in the same size DFN package, as well as 8-lead SOT-23, MSOP-8, and MSOP-10 with shutdown mode. The quad LTC6260 and LTC6263 are available in the MSOP-16 package.

Summary of Features: LTC6258/59/60/61/62/63

  • Offset Voltage: 400 μV Maximum
  • Rail-to-Rail Input & Output
  • Supply Voltage Range: 1.8 V to 5.25 V
  • Operating Temperature Range: –40 °C to 125 °C
  • Packages:
    • Single in 2 mm × 2 mm DFN
    • Dual in 8-Lead MS8, MS10, TSOT-23, 2 mm × 2 mm DFN
    • Quad in MS16

LTC6258/59/60

  • Gain Bandwidth Product: 1.3 MHz
  • Low Quiescent Current: 20 μA
  • C-Load™ Op Amp Drives all Capacitive Loads
  • EMI Rejection Ratio: 45 dB at 1 GHz
  • Input Bias Current: 75 nA Maximum
  • CMRR/PSRR: 95 dB/90 dB
  • Shutdown Current: 7 μA Maximum

LTC6261/62/63

  • Gain Bandwidth Product: 30 MHz
  • Low Quiescent Current: 240 μA
  • Drives Capacitive Loads up to 1 nF
  • Input Bias Current: 100 nA Maximum
  • CMRR/PSRR: 100 dB/95 dB
  • Shutdown Current: 9 μA Maximum
