05-10-2017

Vishay Intertechnology Releases Space-Saving Super Red, Red, Amber, and Yellow Ultrabright LEDs in Compact Packages With Dome Lenses

Vishay » VLDS1535x, VLDR1535x, VLDK1535x, VLDY1535x

Featuring Latest AllnGaP on Si Technology, Devices Deliver High Luminous Intensity to 14000 mcd and Emission Angle of ±22°

The Optoelectronics group of Vishay Intertechnology has introduced a new series of super red, red, amber, and yellow ultrabright LEDs in compact untinted surface-mount packages with dome lenses. Utilizing the latest ultrabright AllnGaP on Si chip technology, the space-saving Vishay Semiconductors VLDx1535x series delivers extremely high brightness with luminous intensity to 14000 mcd and an emission angle of ±22° without the need for an external lens.

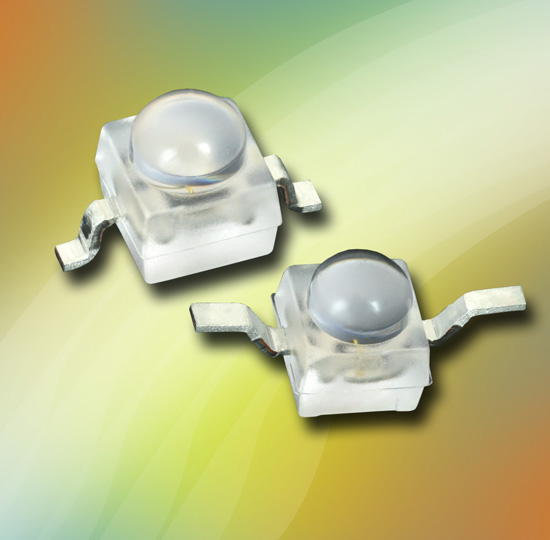

Vishay - VLDx1535x

With their high brightness and small 2.3 mm by 2.3 mm by 2.6 mm footprints, the LEDs are the perfect choice for reliable performance in a wide range of applications, including traffic signals and signs, interior and exterior lighting, and indicators and backlighting for audio and video equipment, LCD switches, and illuminated advertising.

Available in gullwing and reverse gullwing versions, the devices offer high luminous flux and incorporate larger chip sizes to withstand drive currents up to 70 mA. The LEDs withstand ESD voltages up to 2 kV in accordance with JESD22-A114-B, and are luminous- and color-categorized per packing unit.

RoHS-compliant, halogen-free, and Vishay Green, LEDs are compatible with reflow soldering processes per J-STD-020 and preconditioned according to JEDEC Level 2a.

Samples and production quantities of the VLDx1535x series are available now, with lead times of eight weeks.

Device Specification Table:

Part # Color Luminous
intensity
range (mcd)
@IF
(mA)
Wavelength
typ
 (nm)
Forward
voltage typ.
(V)
@ IF
(mA)
VLDS1535x Super red 2800 to 9000 50 630 2.2 50
VLDR1535x Red 3550 to 11200 50 624 2.2 50
VLDK1535x Amber 4500 to 14000 50 616 2.25 50
VLDY1535x Yellow 4500 to 14000 50 589 2.3 50
