Silent Switcher, 42VIN, 2.5A μModule Regulator in 6.25mm x 6.25mm BGA Package

Analog Devices » LTM8065

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8065, a μModule® (power module) step-down regulator with up to 40 V input voltage (42 V abs max), which can safely operate from unregulated or fluctuating 12 V to 36 V input supplies in noisy environments such as industrial robotics, test and measurement, medical, factory automation and avionics systems. The Silent Switcher® architecture minimizes EMC/EMI emissions enabling the LTM8065 to pass CISPR 22 class B for use in noise-sensitive signal processing applications, including imaging and RF systems. The LTM8065’s small 6.25 mm × 6.25 mm × 2.32 mm BGA package includes a switching regulator controller, power switches, inductor and other supporting components. With only two 0805 sized capacitors and two 0603 sized resistors, the LTM8065’s solution occupies approximately 100 mm2, about half the size of equivalent power level module solutions.

Analog Devices - LTM8065

The LTM8065 can deliver 2.5 A of continuous (3.5 A peak) output current to a 5 V load from a 12 V input at up to 85 °C ambient without a heat sink or airflow. The output voltage is adjustable with one resistor from 0.97 V to 18 V. This wide output voltage range provides versatility, using one product to generate common system bus voltage of 3.3 V, 5 V, 12 V and 15 V. The switching frequency is adjustable by an external single resistor or can be synchronized to an external clock from 200 kHz to 3 MHz. It enables customer operation of the device in or out of the specific frequency. The LTM8065 has four modes: Burst Mode® operation, pulse-skipping mode, pulse-skip mode with spread spectrum modulation and external synchronization mode. The quiescent current at burst mode is 8 μA, making it ideal for battery operating systems.

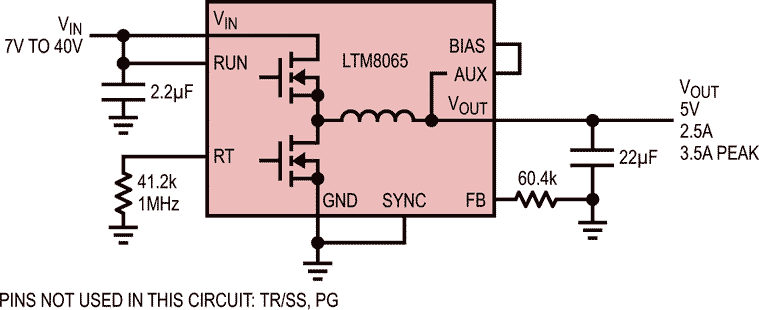

5 VOUT from 7 VIN to 40 VIN Step-Down Converter
5 VOUT from 7 VIN to 40 VIN Step-Down Converter.

The LTM8065 operating temperature range is –40 °C to 125 °C. 1,000-piece pricing starts at $7.75 each.

Efficiency vs Load Current
Efficiency vs Load Current.

Summary of Features: LTM8065

  • Wide Input Voltage Range: 3.4 V to 40 V
  • Wide Output Voltage Range: 0.97 V to 18 V
  • 2.5 A Continuous Output Current, 3.5 A Peak
  • Selectable Switching Frequency: 200 kHz to 3 MHz
  • External Synchronization
  • Low Quiescent Current: 8 μA
  • Tiny, Low Profile 6.25 mm × 6.25 mm × 2.32 mm RoHS Compliant BGA Package
