10-17-2017

40VIN, 2A Silent Switcher μModule Regulator in 6.25mm x 4mm BGA Package

Analog Devices » LTM8063

Analog Devices, which recently acquired Linear Technology Corporation, announces the LTM8063, a 40 VIN, 2 A μModule® stepdown regulator in a tiny 6.25 mm × 4 mm BGA package. The package size is 75% smaller than the existing equivalent product. With two 0805 size capacitors and two 0603 size resistors, the solution is only 70 mm2. The Silent Switcher® architecture minimizes EMI emissions, enabling the LTM8063 to pass the CISPR 22 class B EMC standard.

Analog Devices - LTM8063

The LTM8063 can deliver 2 A (2.5 A peak) of continuous output current from 12 VIN to 5 VOUT at an ambient temperature of 85 °C. Its 40 V input voltage allows it to safely operate from unregulated or fluctuating 12 V to 24 V input supplies in noisy environments such as avionics, factory automation and industrial robotics. The output voltage is adjustable with one resistor from 0.8 V to 15 V. This wide output voltage range provides the versatility of using one product to generate low voltage rails such as I/O and auxiliary voltages of digital ICs and common system bus voltages of 3.3 V, 5 V and 12 V.

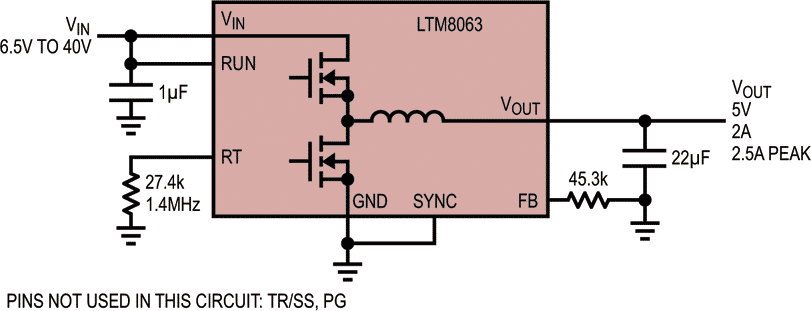

5 VOUT from 6.5 VIN to 40 VIN Step-Down Converter
5 VOUT from 6.5 VIN to 40 VIN Step-Down Converter.

The switching frequency can be set by an external single resistor ranging from 200 kHz to 2.2 MHz or can be synchronized to an external clock. The LTM8063 has four operating modes: Burst Mode® operation, pulse-skipping mode, pulse-skipping mode with spread spectrum modulation and external sync mode. The combination of Silent Switcher architecture, wide operating frequency range, and multiple operating modes minimizes the risk of electromagnetic interference, ideal for noise- sensitive signal processing applications including imaging and RF systems.

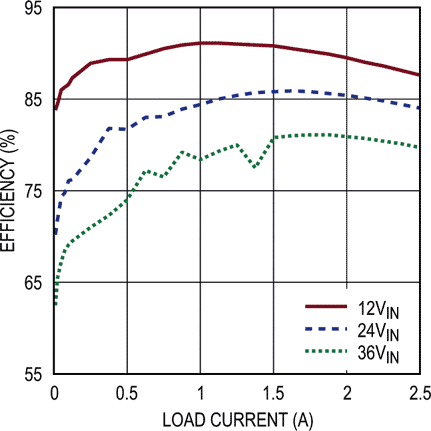

Efficiency vs Load Current
Efficiency vs Load Current.

The LTM8063 operating temperature range is –40 °C to 125 °C. 1,000-piece pricing starts at $6.95 each.

Summary of Features: LTM8063

  • Low Noise Silent Switcher® Architecture
  • Wide Input Voltage Range: 3.2 V to 40 V
  • Wide Output Voltage Range: 0.8 V to 15 V
  • 2 A Continuous Output Current, 2.5 A Peak
  • Selectable Switching Frequency: 200 kHz to 2.2 MHz
  • External Synchronization
  • Programmable Soft-Start
  • Tiny, Low Profile 6.25 mm × 4 mm × 2.22 mm RoHS Compliant BGA Package
