Evaluation Module Texas Instruments HDC1000EVM

Texas Instruments » HDC1000EVM

Main Features of Kit or Board
ParameterValue
Base componentTexas Instruments
Board peripherals
  • I/O pins
  • I2C interface
  • USB
  • temperature sensor
  • humidity sensor

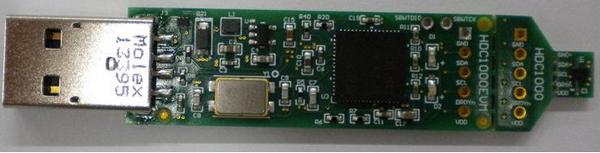

The HDC1000EVM evaluation kit is a plug and play system to test and evaluate the HDC1000 humidity and temperature sensor. The EVM is a breakable PCB which consists of 3 sections. The first section is a USB  to I2C converter based on MSP430F5528 microcontroller,  the second section is a conversion board  (WCSP to SIL 100mil pitch) with the HDC1000 and the third section is a narrow 5mm x 5,5mm pcb with the HDC1000 (WCSP to SIL 50mil pitch) which allows to reduce the thermal mass of the system (sensor + pcb). Both second and third section can be used for remote measurements. The HDC1000EVM does not need additional hardware, calibration nor does it require any software programming - only the HDC1000EVM GUI has to be installed. The software is able to configure the HDC1000's registers, display temperature and relative humidity in two graphs and export data in CSV format.

Evaluation Module  Texas Instruments HDC1000EVM

The HDC1000 is an integrated humidity and temperature sensor that provides excellent measurement accuracy at very low power. The device measures humidity based on a novel capacitive sensor. The humidity and temperature sensors are factory calibrated. The innovative WLCSP (Wafer Level Chip Scale Package) simplifies board design with the use of an ultra-compact package. The sensing element of the HDC1000 is placed on the bottom part of the device, which makes the HDC1000 more robust against dirt, dust, and other environmental contaminants. The HDC1000 is functional within the full –40°C to +125°C temperature range.

Features

  • Plug & Play
  • Complete HR and Temperature data logger
  • Size scalable according to evaluation needs
  • HDC1000 Features
    • Relative Humidity (RH) Operating Range 0% to 100%
    • 14 Bit Measurement Resolution
    • Relative Humidity Accuracy ±3%
    • Temperature Range
      • Operating –20°C to 85°C
      • Functional –40°C to 125°C
      • Temperature Accuracy ±0.2°C
    • 200nA Sleep Mode Current
    • Average Supply Current:
      • 820nA @ 1sps, 11 bit RH Measurement
      • 1.2µA @ 1sps, 11 bit RH and Temperature Measurement
    • Supply Voltage 3V to 5V
    • Tiny 2mm × 1.6mm Device Footprint
    • I2C Interface

The EVM contains one HDC1000.

User Guide and Schematic Diagram
