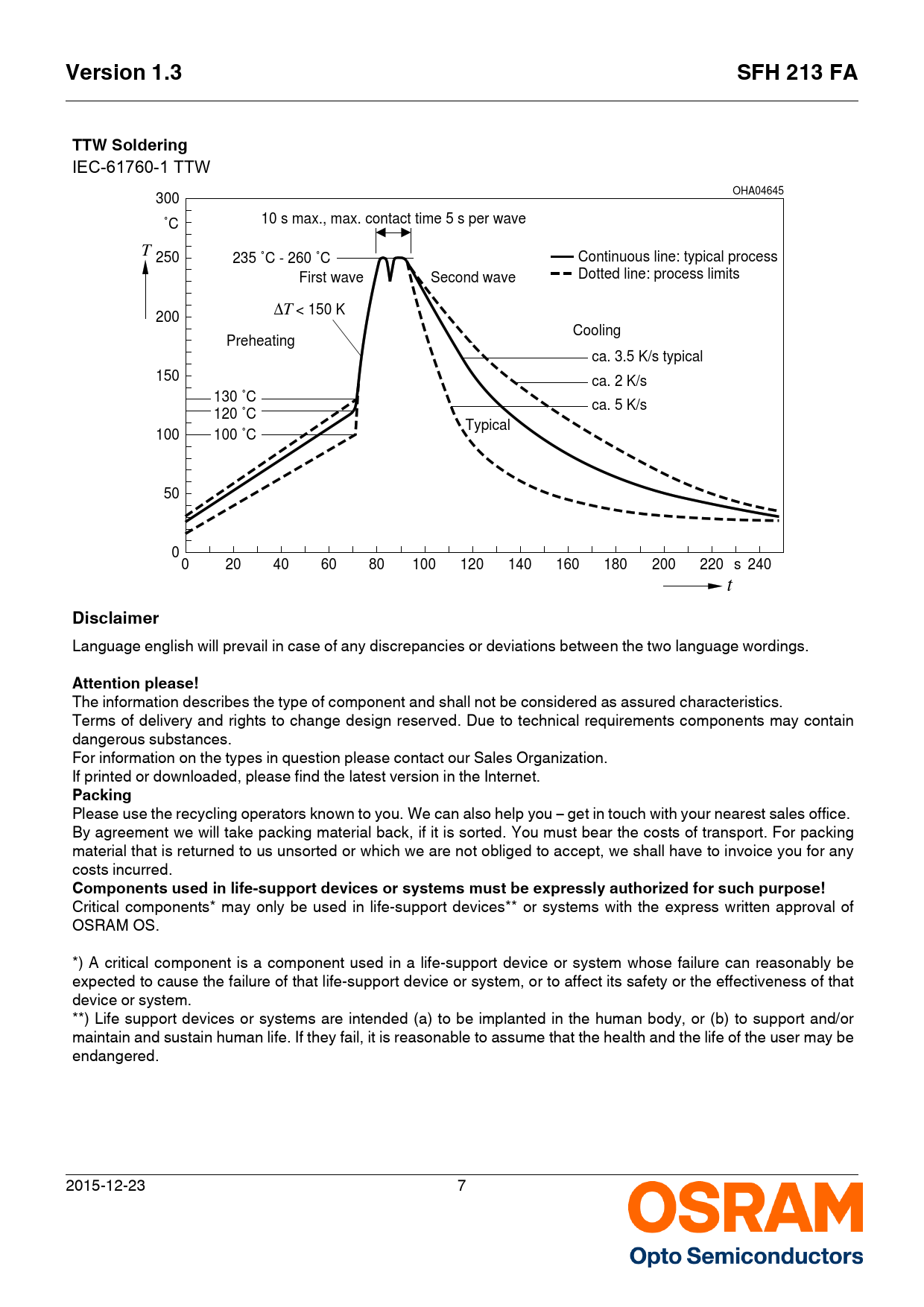

Version 1.3 SFH 213 FA TTW Soldering
IEC-61760-1 TTW OHA04645 300 ˚C 10 s max., max. contact time 5 s per wave T 250 235 ˚C - 260 ˚C Continuous line: typical process First wave Second wave Dotted line: process limits ∆T < 150 K 200 Cooling Preheating ca. 3.5 K/s typical 150 ca. 2 K/s 130 ˚C ca. 5 K/s 120 ˚C Typical 100 100 ˚C 50 0 0 20 40 60 80 100 120 140 160 180 200 220 s 240 t
Disclaimer
Language english will prevail in case of any discrepancies or deviations between the two language wordings.
Attention please!
The information describes the type of component and shall not be considered as assured characteristics. Terms of delivery and rights to change design reserved. Due to technical requirements components may contain dangerous substances. For information on the types in question please contact our Sales Organization. If printed or downloaded, please find the latest version in the Internet.
Packing
Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office. By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs incurred.
Components used in life-support devices or systems must be expressly authorized for such purpose!
Critical components* may only be used in life-support devices** or systems with the express written approval of OSRAM OS. *) A critical component is a component used in a life-support device or system whose failure can reasonably be expected to cause the failure of that life-support device or system, or to affect its safety or the effectiveness of that device or system. **) Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain and sustain human life. If they fail, it is reasonable to assume that the health and the life of the user may be endangered. 2015-12-23 7 Document Outline Features: Applications Ordering Information Maximum Ratings Characteristics Relative Spectral Sensitivity Photocurrent / Open-Circuit Voltage Dark Current Capacitance Dark Current Directional Characteristics Package Outline Disclaimer Glossary
