Datasheet LT6108-1, LT6108-2 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | High Side Current Sense Amplifier with Reference and Comparator |
| Pages / Page | 30 / 5 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| File Format / Size | PDF / 361 Kb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LT6108AHMS8-1#PBF LT6108AHMS8-1#PBF LT6108AHMS8-1#TRPBF LT6108AHMS8-1#TRPBF LT6108AHMS8-2#PBF LT6108AHMS8-2#PBF LT6108AHMS8-2#TRPBF LT6108AHMS8-2#TRPBF LT6108AIMS8-1#PBF LT6108AIMS8-1#PBF LT6108AIMS8-1#TRPBF LT6108AIMS8-1#TRPBF LT6108AIMS8-2#PBF LT6108AIMS8-2#PBF LT6108AIMS8-2#TRPBF LT6108AIMS8-2#TRPBF LT6108HDCB-1#PBF LT6108HDCB-1#TRMPBF LT6108HDCB-1#TRMPBF LT6108HDCB-1#TRPBF LT6108HDCB-1#TRPBF LT6108HDCB-2#PBF LT6108HDCB-2#TRMPBF LT6108HDCB-2#TRMPBF LT6108HDCB-2#TRPBF LT6108HDCB-2#TRPBF LT6108HMS8-1#PBF LT6108HMS8-1#PBF LT6108HMS8-1#TRPBF LT6108HMS8-1#TRPBF LT6108HMS8-2#PBF LT6108HMS8-2#PBF LT6108HMS8-2#TRPBF LT6108HMS8-2#TRPBF LT6108IDCB-1#PBF LT6108IDCB-1#TRMPBF LT6108IDCB-1#TRMPBF LT6108IDCB-1#TRPBF LT6108IDCB-1#TRPBF LT6108IDCB-2#PBF LT6108IDCB-2#TRMPBF LT6108IDCB-2#TRMPBF LT6108IDCB-2#TRPBF LT6108IDCB-2#TRPBF LT6108IMS8-1#PBF LT6108IMS8-1#PBF LT6108IMS8-1#TRPBF LT6108IMS8-1#TRPBF LT6108IMS8-2#PBF LT6108IMS8-2#PBF LT6108IMS8-2#TRPBF LT6108IMS8-2#TRPBF
Text Version of Document
LT6108-1/LT6108-2

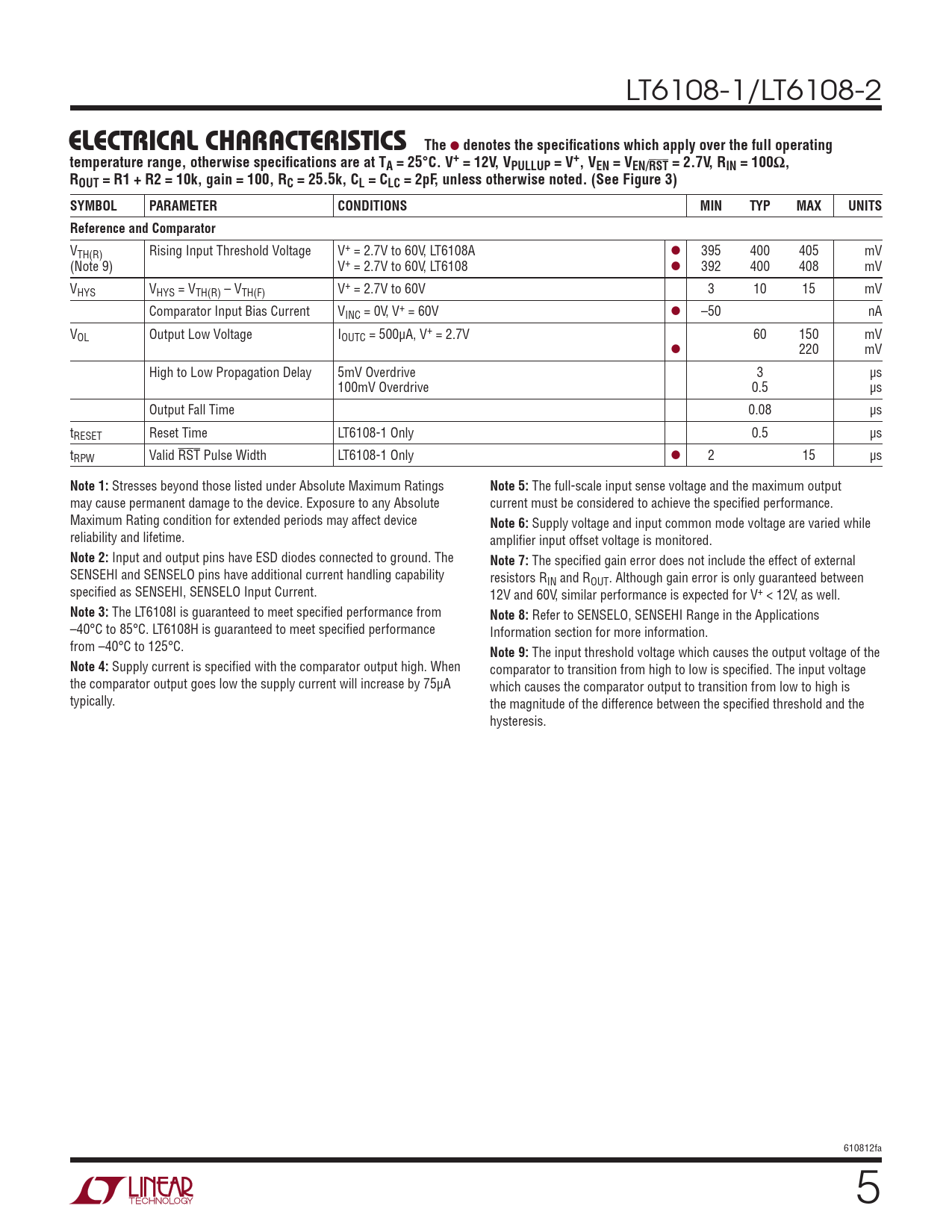

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. V+ = 12V, VPULLUP = V+, VEN = VEN/RST = 2.7V, RIN = 100Ω, ROUT = R1 + R2 = 10k, gain = 100, RC = 25.5k, CL = CLC = 2pF, unless otherwise noted. (See Figure 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Reference and Comparator
VTH(R) Rising Input Threshold Voltage V+ = 2.7V to 60V, LT6108A l 395 400 405 mV (Note 9) V+ = 2.7V to 60V, LT6108 l 392 400 408 mV VHYS VHYS = VTH(R) – VTH(F) V+ = 2.7V to 60V 3 10 15 mV Comparator Input Bias Current VINC = 0V, V+ = 60V l –50 nA VOL Output Low Voltage IOUTC = 500µA, V+ = 2.7V 60 150 mV l 220 mV High to Low Propagation Delay 5mV Overdrive 3 µs 100mV Overdrive 0.5 µs Output Fall Time 0.08 µs tRESET Reset Time LT6108-1 Only 0.5 µs tRPW Valid RST Pulse Width LT6108-1 Only l 2 15 µs
