LT6108-1/LT6108-2

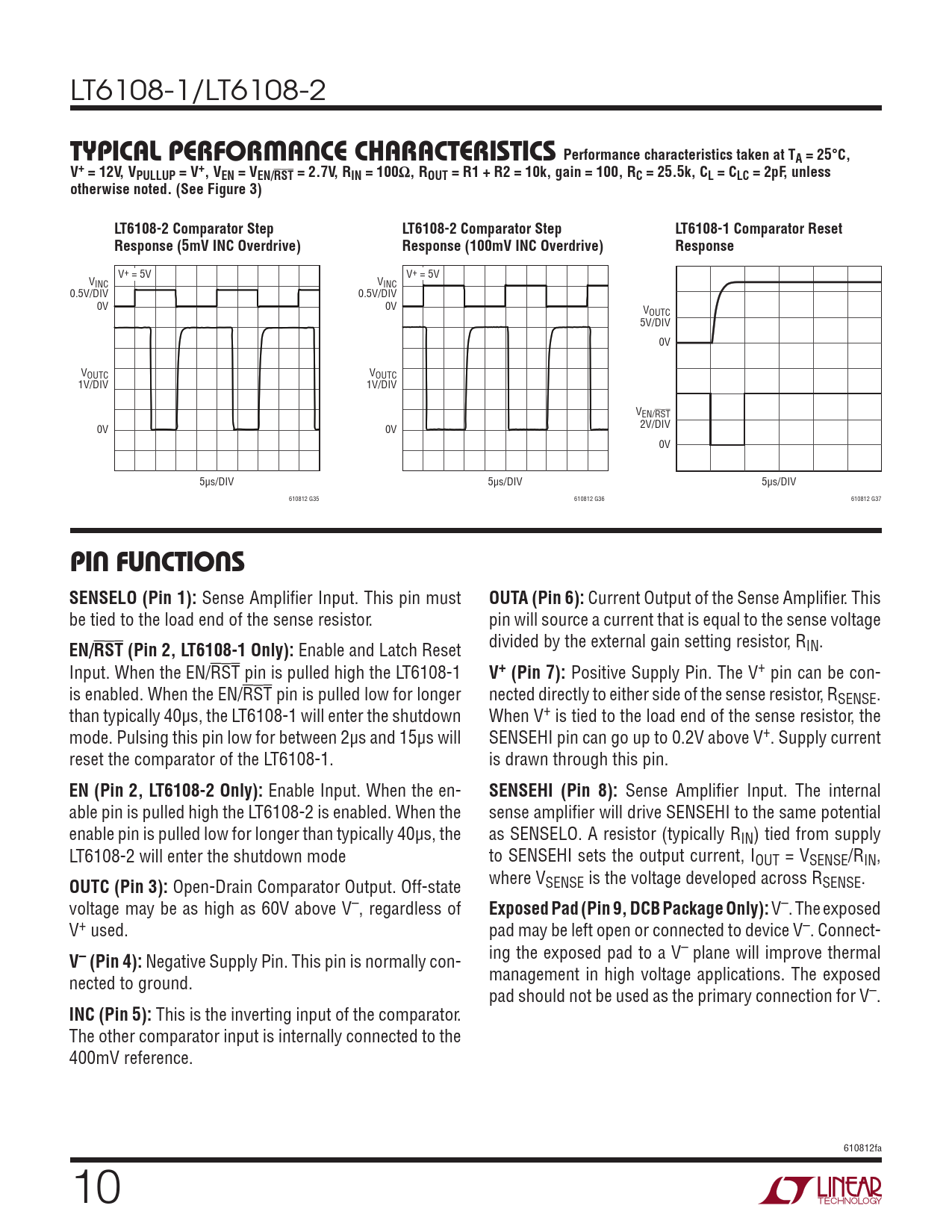

TYPICAL PERFORMANCE CHARACTERISTICS Performance characteristics taken at TA = 25°C, V+ = 12V, VPULLUP = V+, VEN = VEN/RST = 2.7V, RIN = 100Ω, ROUT = R1 + R2 = 10k, gain = 100, RC = 25.5k, CL = CLC = 2pF, unless otherwise noted. (See Figure 3) LT6108-2 Comparator Step LT6108-2 Comparator Step LT6108-1 Comparator Reset Response (5mV INC Overdrive) Response (100mV INC Overdrive) Response
V+ = 5V V+ = 5V VINC VINC 0.5V/DIV 0.5V/DIV 0V 0V VOUTC 5V/DIV 0V VOUTC VOUTC 1V/DIV 1V/DIV VEN/RST 0V 0V 2V/DIV 0V 5µs/DIV 5µs/DIV 5µs/DIV 610812 G35 610812 G36 610812 G37
