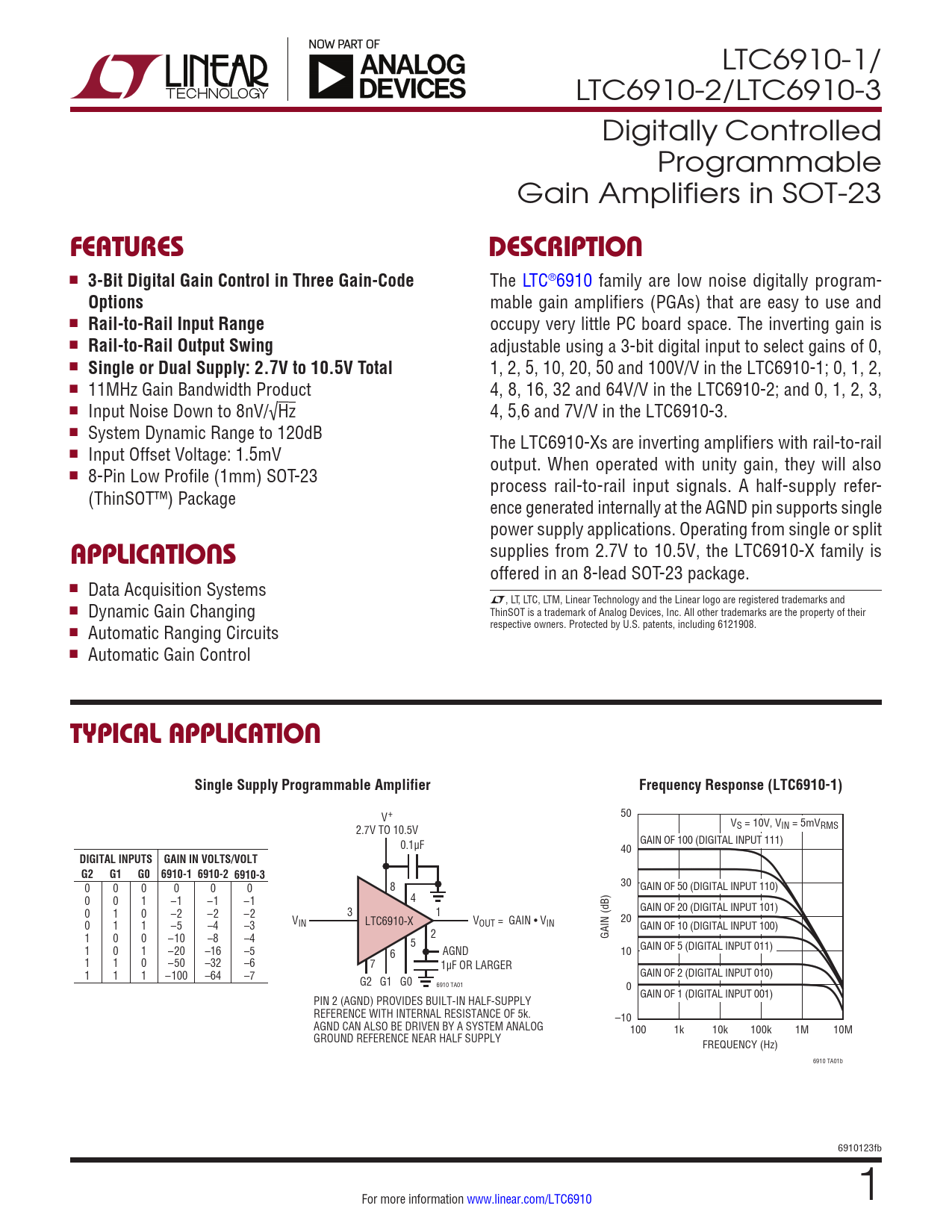

LTC6910-1/ LTC6910-2/LTC6910-3 Digitally Controlled Programmable Gain Amplifiers in SOT-23
FeaTures DescripTion
n
3-Bit Digital Gain Control in Three Gain-Code
The LTC®6910 family are low noise digitally program-
Options
mable gain amplifiers (PGAs) that are easy to use and n
Rail-to-Rail Input Range
occupy very little PC board space. The inverting gain is n
Rail-to-Rail Output Swing
adjustable using a 3-bit digital input to select gains of 0, n
Single or Dual Supply: 2.7V to 10.5V Total
1, 2, 5, 10, 20, 50 and 100V/V in the LTC6910-1; 0, 1, 2, n 11MHz Gain Bandwidth Product 4, 8, 16, 32 and 64V/V in the LTC6910-2; and 0, 1, 2, 3, n Input Noise Down to 8nV/√Hz 4, 5,6 and 7V/V in the LTC6910-3. n System Dynamic Range to 120dB The LTC6910-Xs are inverting amplifiers with rail-to-rail n Input Offset Voltage: 1.5mV output. When operated with unity gain, they will also n 8-Pin Low Profile (1mm) SOT-23 process rail-to-rail input signals. A half-supply refer- (ThinSOT™) Package ence generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V, the LTC6910-X family is
applicaTions
offered in an 8-lead SOT-23 package. n Data Acquisition Systems L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and n Dynamic Gain Changing ThinSOT is a trademark of Analog Devices, Inc. All other trademarks are the property of their respective owners. Protected by U.S. patents, including 6121908. n Automatic Ranging Circuits n Automatic Gain Control
