Datasheet MIC7300 (Microchip) - 10
| Manufacturer | Microchip |
| Description | The MIC7300 is a high-performance CMOS operational amplifier featuring rail-to-rail input and output with strong output drive capability |
| Pages / Page | 12 / 10 — Package Information. SOT-23-5 (M5). 8-Pin MSOP (MM) |
| File Format / Size | PDF / 68 Kb |
| Document Language | English |
Package Information. SOT-23-5 (M5). 8-Pin MSOP (MM)
Model Line for this Datasheet
Text Version of Document
MIC7300 Micrel

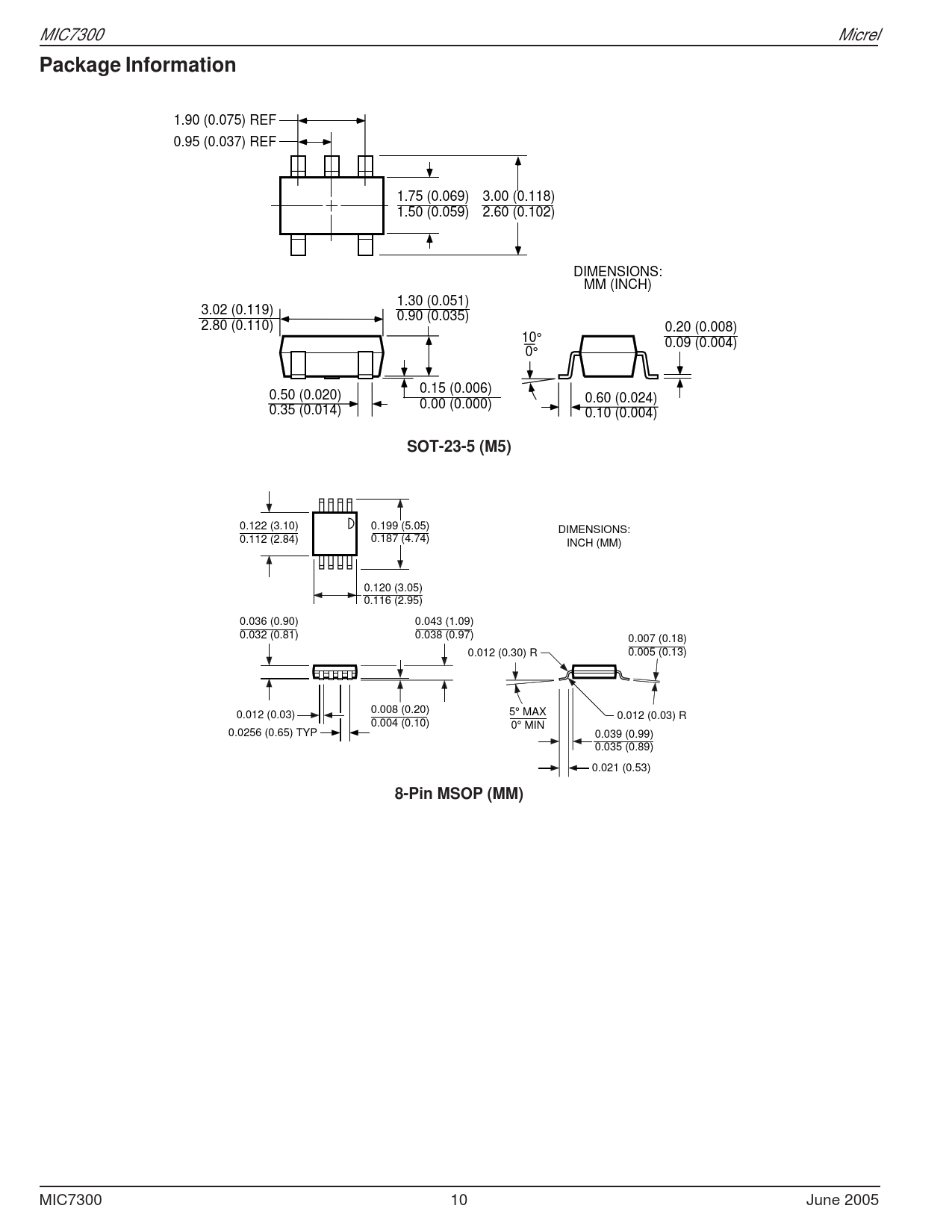

Package Information
1.90 (0.075) REF 0.95 (0.037) REF 1.75 (0.069) 3.00 (0.118) 1.50 (0.059) 2.60 (0.102) DIMENSIONS: MM (INCH) 1.30 (0.051) 3.02 (0.119) 0.90 (0.035) 2.80 (0.110) 0.20 (0.008) 10° 0.09 (0.004) 0° 0.15 (0.006) 0.50 (0.020) 0.60 (0.024) 0.00 (0.000) 0.35 (0.014) 0.10 (0.004)
SOT-23-5 (M5)
0.122 (3.10) 0.199 (5.05) DIMENSIONS: 0.112 (2.84) 0.187 (4.74) INCH (MM) 0.120 (3.05) 0.116 (2.95) 0.036 (0.90) 0.043 (1.09) 0.032 (0.81) 0.038 (0.97) 0.007 (0.18) 0.012 (0.30) R 0.005 (0.13) 0.008 (0.20) 5 0.012 (0.03) ° MAX 0.012 (0.03) R 0.004 (0.10) 0° MIN 0.0256 (0.65) TYP 0.039 (0.99) 0.035 (0.89) 0.021 (0.53)
8-Pin MSOP (MM)
MIC7300 10 June 2005
Package Information
1.90 (0.075) REF 0.95 (0.037) REF 1.75 (0.069) 3.00 (0.118) 1.50 (0.059) 2.60 (0.102) DIMENSIONS: MM (INCH) 1.30 (0.051) 3.02 (0.119) 0.90 (0.035) 2.80 (0.110) 0.20 (0.008) 10° 0.09 (0.004) 0° 0.15 (0.006) 0.50 (0.020) 0.60 (0.024) 0.00 (0.000) 0.35 (0.014) 0.10 (0.004)
SOT-23-5 (M5)
0.122 (3.10) 0.199 (5.05) DIMENSIONS: 0.112 (2.84) 0.187 (4.74) INCH (MM) 0.120 (3.05) 0.116 (2.95) 0.036 (0.90) 0.043 (1.09) 0.032 (0.81) 0.038 (0.97) 0.007 (0.18) 0.012 (0.30) R 0.005 (0.13) 0.008 (0.20) 5 0.012 (0.03) ° MAX 0.012 (0.03) R 0.004 (0.10) 0° MIN 0.0256 (0.65) TYP 0.039 (0.99) 0.035 (0.89) 0.021 (0.53)
8-Pin MSOP (MM)
MIC7300 10 June 2005
