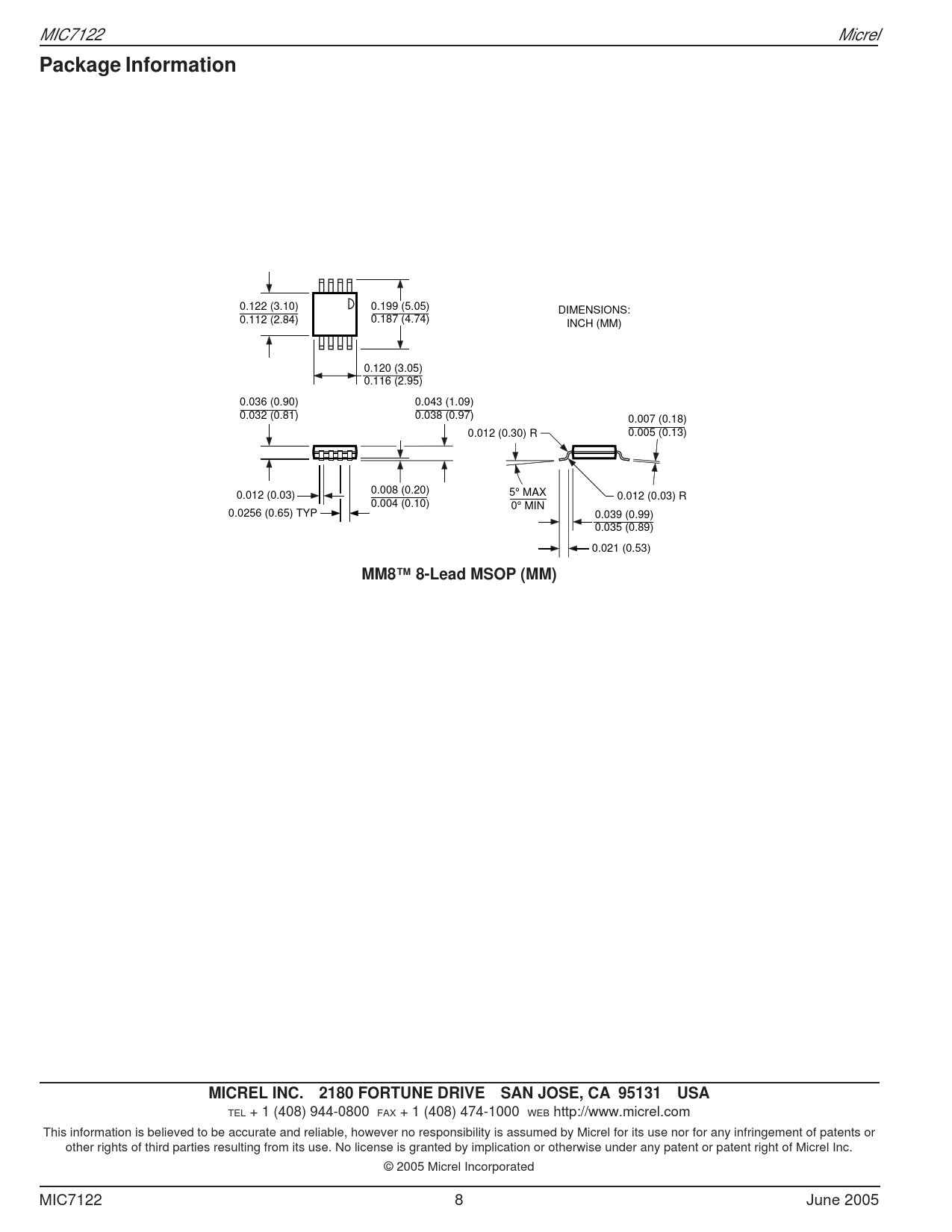

Package Information. MM8™ 8-Lead MSOP (MM). MICREL INC. 2180 FORTUNE DRIVE. SAN JOSE, CA 95131. USA
Model Line for this Datasheet
Text Version of Document
MIC7122 Micrel
Package Information
0.122 (3.10) 0.199 (5.05) DIMENSIONS: 0.112 (2.84) 0.187 (4.74) INCH (MM) 0.120 (3.05) 0.116 (2.95) 0.036 (0.90) 0.043 (1.09) 0.032 (0.81) 0.038 (0.97) 0.007 (0.18) 0.012 (0.30) R 0.005 (0.13) 0.008 (0.20) 5 0.012 (0.03) ° MAX 0.012 (0.03) R 0.004 (0.10) 0° MIN 0.0256 (0.65) TYP 0.039 (0.99) 0.035 (0.89) 0.021 (0.53)
MM8™ 8-Lead MSOP (MM) MICREL INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131 USA
TEL + 1 (408) 944-0800 FAX + 1 (408) 474-1000 WEB http://www.micrel.com This information is believed to be accurate and reliable, however no responsibility is assumed by Micrel for its use nor for any infringement of patents or other rights of third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent right of Micrel Inc. © 2005 Micrel Incorporated MIC7122 8 June 2005
