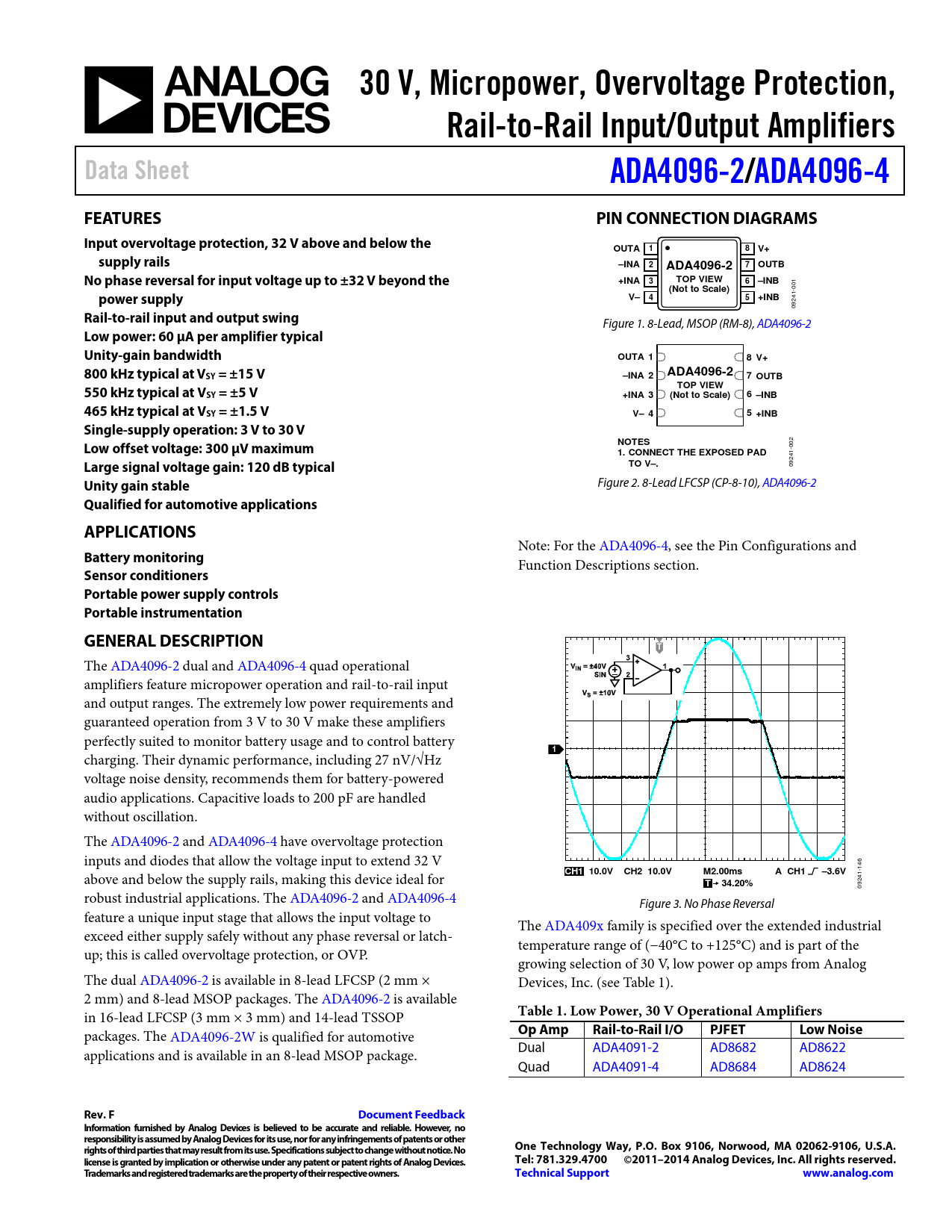

30 V, Micropower, Overvoltage Protection, Rail-to-Rail Input/Output Amplifiers Data Sheet ADA4096-2/ ADA4096-4 FEATURES PIN CONNECTION DIAGRAMS Input overvoltage protection, 32 V above and below the OUTA 1 8 V+ supply rails –INA 2 7 OUTB ADA4096-2 No phase reversal for input voltage up to ±32 V beyond the +INA 3 TOP VIEW 6 –INB (Not to Scale)
001
power supply V– 4 5 +INB
09241-
Rail-to-rail input and output swing
Figure 1. 8-Lead, MSOP (RM-8), ADA4096-2
Low power: 60 µA per amplifier typical Unity-gain bandwidth OUTA 1 8 V+ 800 kHz typical at VSY = ±15 V ADA4096-2 –INA 2 7 OUTB 550 kHz typical at V TOP VIEW SY = ±5 V +INA 3 (Not to Scale) 6 –INB 465 kHz typical at VSY = ±1.5 V V– 4 5 +INB Single-supply operation: 3 V to 30 V Low offset voltage: 300 µV maximum NOTES
002
1. CONNECT THE EXPOSED PAD Large signal voltage gain: 120 dB typical TO V–.
09241-
Unity gain stable
Figure 2. 8-Lead LFCSP (CP-8-10), ADA4096-2
Qualified for automotive applications APPLICATIONS
Note: For the ADA4096-4, see the Pin Configurations and
Battery monitoring
Function Descriptions section.
Sensor conditioners Portable power supply controls Portable instrumentation GENERAL DESCRIPTION T
The ADA4096-2 dual and ADA4096-4 quad operational amplifiers feature micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed operation from 3 V to 30 V make these amplifiers perfectly suited to monitor battery usage and to control battery
1
charging. Their dynamic performance, including 27 nV/√Hz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscil ation. The ADA4096-2 and ADA4096-4 have overvoltage protection inputs and diodes that al ow the voltage input to extend 32 V 146 above and below the supply rails, making this device ideal for
CH1 10.0V CH2 10.0V M2.00ms A CH1 –3.6V T 34.20%
09241- robust industrial applications. The ADA4096-2 and ADA4096-4 Figure 3. No Phase Reversal feature a unique input stage that al ows the input voltage to The ADA409x family is specified over the extended industrial exceed either supply safely without any phase reversal or latch- temperature range of (−40°C to +125°C) and is part of the up; this is called overvoltage protection, or OVP. growing selection of 30 V, low power op amps from Analog The dual ADA4096-2 is available in 8-lead LFCSP (2 mm × Devices, Inc. (see Table 1). 2 mm) and 8-lead MSOP packages. The ADA4096-2 is available in 16-lead LFCSP (3 mm × 3 mm) and 14-lead TSSOP
Table 1. Low Power, 30 V Operational Amplifiers
packages. The ADA4096-2W is qualified for automotive
Op Amp Rail-to-Rail I/O PJFET Low Noise
applications and is available in an 8-lead MSOP package. Dual ADA4091-2 AD8682 AD8622 Quad ADA4091-4 AD8684 AD8624
