Datasheet ADA4096-2, ADA4096-4 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 30 V, Micropower, Overvoltage Protection, Rail-to-Rail Input/Output Quad Op Amplifier |
| Pages / Page | 24 / 7 — Data Sheet. ADA4096-2/ADA4096-4. PIN CONFIGURATIONS AND FUNCTION … |
| Revision | G |
| File Format / Size | PDF / 676 Kb |
| Document Language | English |

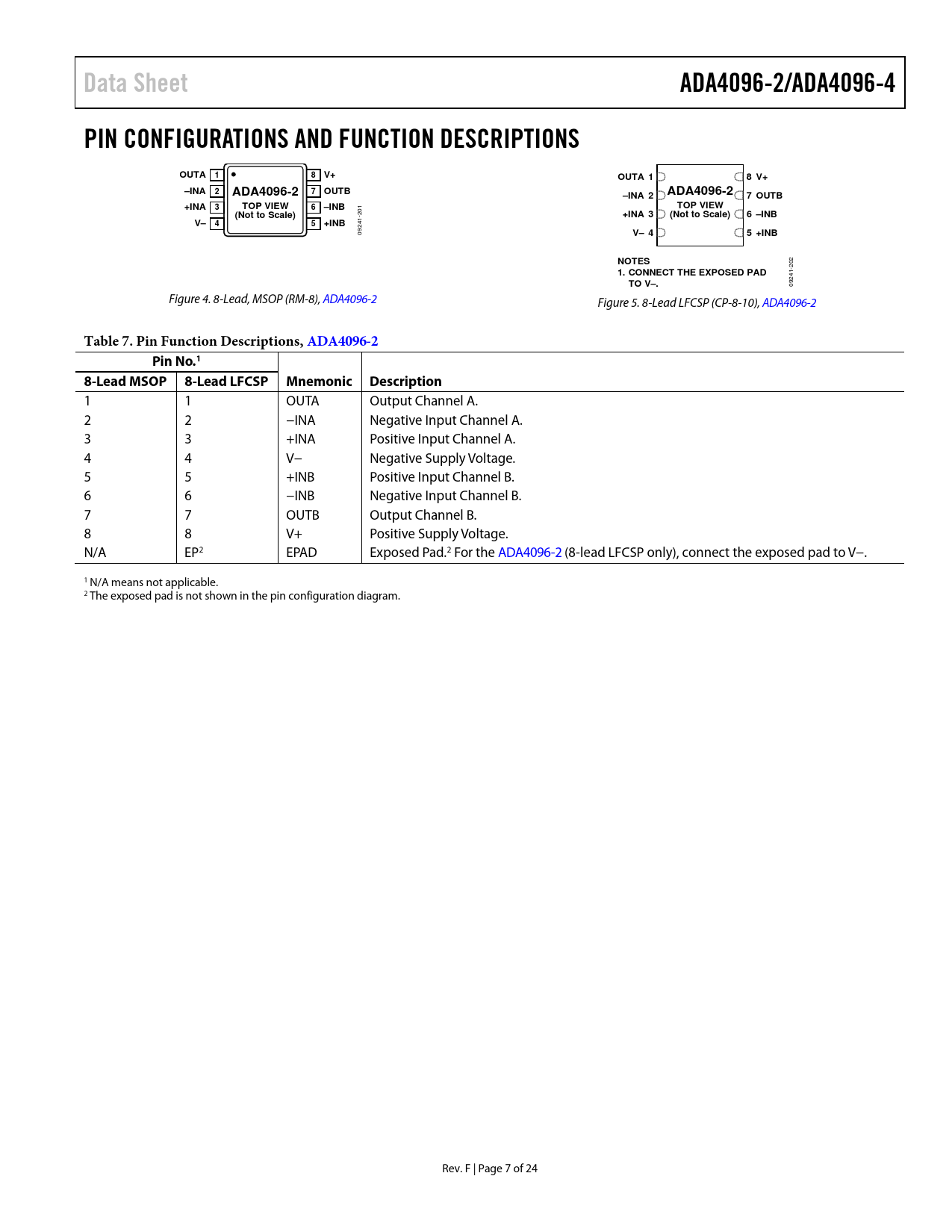

Data Sheet. ADA4096-2/ADA4096-4. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. OUTA. OUTA 1. 8 V+. –INA. OUTB. ADA4096-2. –INA 2. 7 OUTB
Text Version of Document
Data Sheet ADA4096-2/ADA4096-4 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS OUTA 1 8 V+ OUTA 1 8 V+ –INA 2 7 OUTB ADA4096-2 ADA4096-2 –INA 2 7 OUTB +INA 3 TOP VIEW 6 –INB TOP VIEW (Not to Scale)
201
+INA 3 (Not to Scale) 6 –INB V– 4 5 +INB
09241-
V– 4 5 +INB NOTES
202
1. CONNECT THE EXPOSED PAD TO V–.
09241- Figure 4. 8-Lead, MSOP (RM-8), ADA4096-2 Figure 5. 8-Lead LFCSP (CP-8-10), ADA4096-2
Table 7. Pin Function Descriptions, ADA4096-2 Pin No.1 8-Lead MSOP 8-Lead LFCSP Mnemonic Description
1 1 OUTA Output Channel A. 2 2 −INA Negative Input Channel A. 3 3 +INA Positive Input Channel A. 4 4 V− Negative Supply Voltage. 5 5 +INB Positive Input Channel B. 6 6 −INB Negative Input Channel B. 7 7 OUTB Output Channel B. 8 8 V+ Positive Supply Voltage. N/A EP2 EPAD Exposed Pad.2 For the ADA4096-2 (8-lead LFCSP only), connect the exposed pad to V−. 1 N/A means not applicable. 2 The exposed pad is not shown in the pin configuration diagram. Rev. F | Page 7 of 24 Document Outline FEATURES APPLICATIONS PIN CONNECTION DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS, VSY = ±1.5 V ELECTRICAL SPECIFICATIONS, VSY = ±5 V ELECTRICAL SPECIFICATIONS, VSY = ±15 V ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS ±1.5 V CHARACTERISTICS ±5 V CHARACTERISTICS ±15 V CHARACTERISTICS COMPARATIVE VOLTAGE AND VARIABLE VOLTAGE GRAPHS THEORY OF OPERATION INPUT STAGE PHASE INVERSION INPUT OVERVOLTAGE PROTECTION COMPARATOR OPERATION OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
