Datasheet AD8665, AD8666, AD8668 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 16 V, 4 MHz Rail-to-Rail Single Op Amp |
| Pages / Page | 16 / 5 — AD8665/AD8666/AD8668. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table … |
| Revision | B |
| File Format / Size | PDF / 629 Kb |
| Document Language | English |

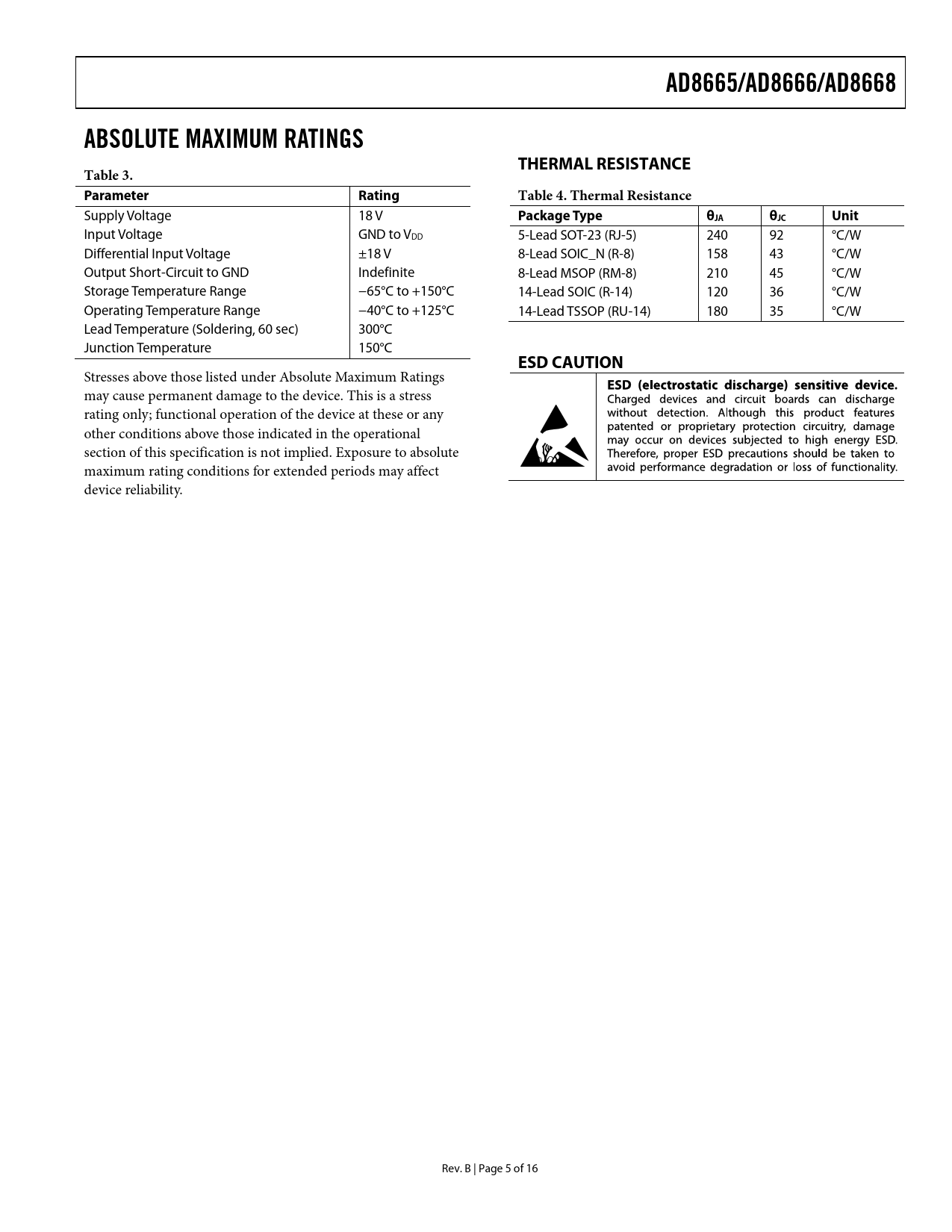

AD8665/AD8666/AD8668. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter. Rating. Table 4. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
AD8665/AD8666/AD8668 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3. Parameter Rating Table 4. Thermal Resistance
Supply Voltage 18 V
Package Type θJA θJC Unit
Input Voltage GND to VDD 5-Lead SOT-23 (RJ-5) 240 92 °C/W Differential Input Voltage ±18 V 8-Lead SOIC_N (R-8) 158 43 °C/W Output Short-Circuit to GND Indefinite 8-Lead MSOP (RM-8) 210 45 °C/W Storage Temperature Range −65°C to +150°C 14-Lead SOIC (R-14) 120 36 °C/W Operating Temperature Range −40°C to +125°C 14-Lead TSSOP (RU-14) 180 35 °C/W Lead Temperature (Soldering, 60 sec) 300°C Junction Temperature 150°C
ESD CAUTION
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 5 of 16 Document Outline Features Applications General Description Pin Configurations Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
