Rail-to-Rail, High Output. Current Amplifier. AD8397. FEATURES. PIN CONFIGURATION. Dual operational amplifier. OUT1. +VS
Text Version of Document

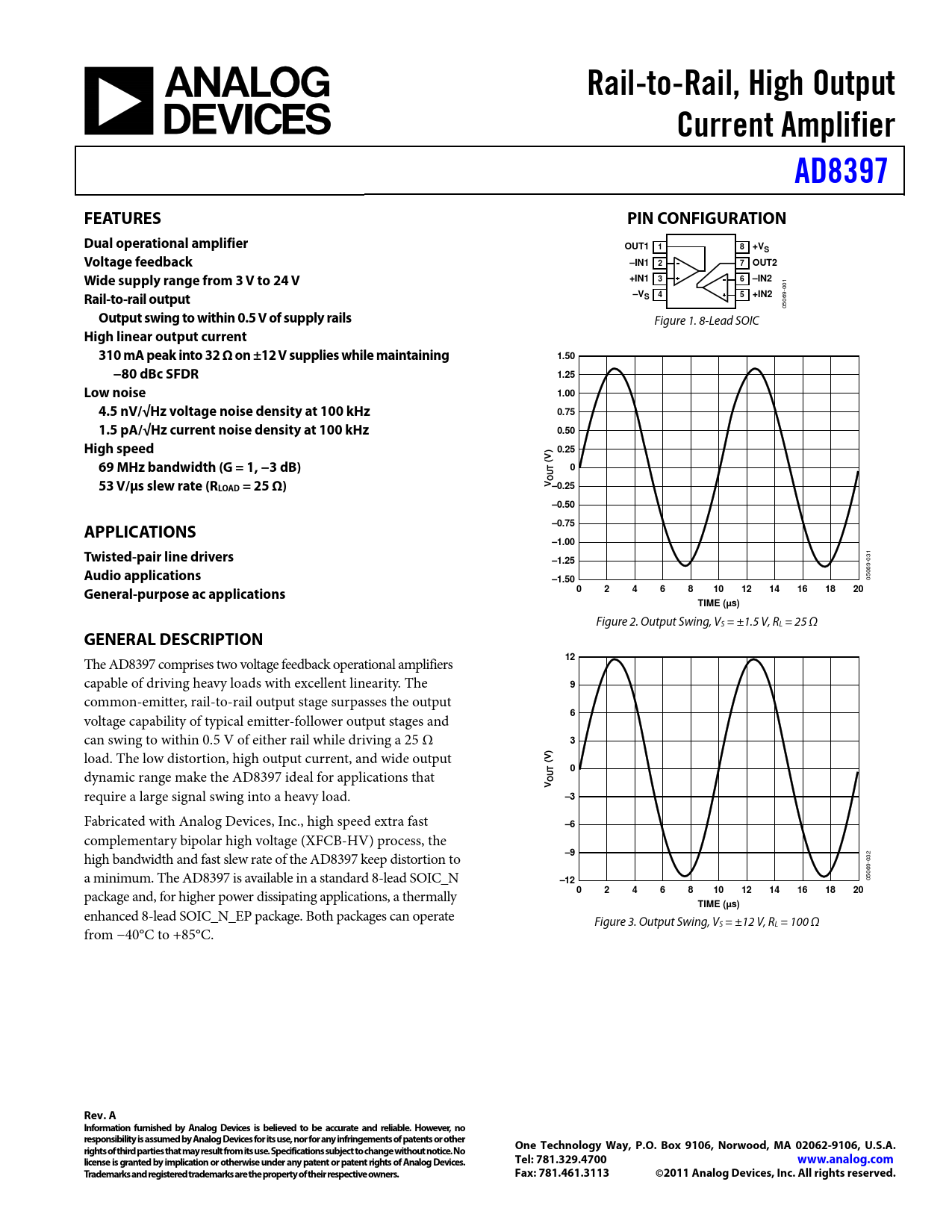

Rail-to-Rail, High Output Current Amplifier AD8397 FEATURES PIN CONFIGURATION Dual operational amplifier OUT1 1 8 +VS Voltage feedback –IN1 2 7 OUT2 Wide supply range from 3 V to 24 V +IN1 3 6 –IN2
001
Rail-to-rail output –VS 4 5 +IN2
05069-
Output swing to within 0.5 V of supply rails
Figure 1. 8-Lead SOIC
High linear output current 310 mA peak into 32 Ω on ±12 V supplies while maintaining 1.50 −80 dBc SFDR 1.25 Low noise 1.00 4.5 nV/√Hz voltage noise density at 100 kHz 0.75 1.5 pA/√Hz current noise density at 100 kHz 0.50 High speed ) 0.25 69 MHz bandwidth (G = 1, −3 dB) (V T 0 OU 53 V/μs slew rate (RLOAD = 25 Ω) V –0.25 –0.50 –0.75 APPLICATIONS –1.00 Twisted-pair line drivers
1
–1.25
03 9-
Audio applications
06
–1.50
05
General-purpose ac applications 0 2 4 6 8 10 12 14 16 18 20 TIME (µs)
Figure 2. Output Swing, VS = ±1.5 V, RL = 25 Ω
GENERAL DESCRIPTION 12
The AD8397 comprises two voltage feedback operational amplifiers capable of driving heavy loads with excellent linearity. The
9
common-emitter, rail-to-rail output stage surpasses the output
6
voltage capability of typical emitter-follower output stages and can swing to within 0.5 V of either rail while driving a 25 Ω
3
load. The low distortion, high output current, and wide output
(V) T 0
dynamic range make the AD8397 ideal for applications that
OU V
require a large signal swing into a heavy load.
–3
Fabricated with Analog Devices, Inc., high speed extra fast
–6
complementary bipolar high voltage (XFCB-HV) process, the
–9
high bandwidth and fast slew rate of the AD8397 keep distortion to -032 69 a minimum. The AD8397 is available in a standard 8-lead SOIC_N
–12
050
0 2 4 6 8 10 12 14 16 18 20
package and, for higher power dissipating applications, a thermally
TIME (µs)
enhanced 8-lead SOIC_N_EP package. Both packages can operate Figure 3. Output Swing, VS = ±12 V, RL = 100 Ω from −40°C to +85°C.
