Datasheet OP196, OP296, OP496 (Analog Devices)

a

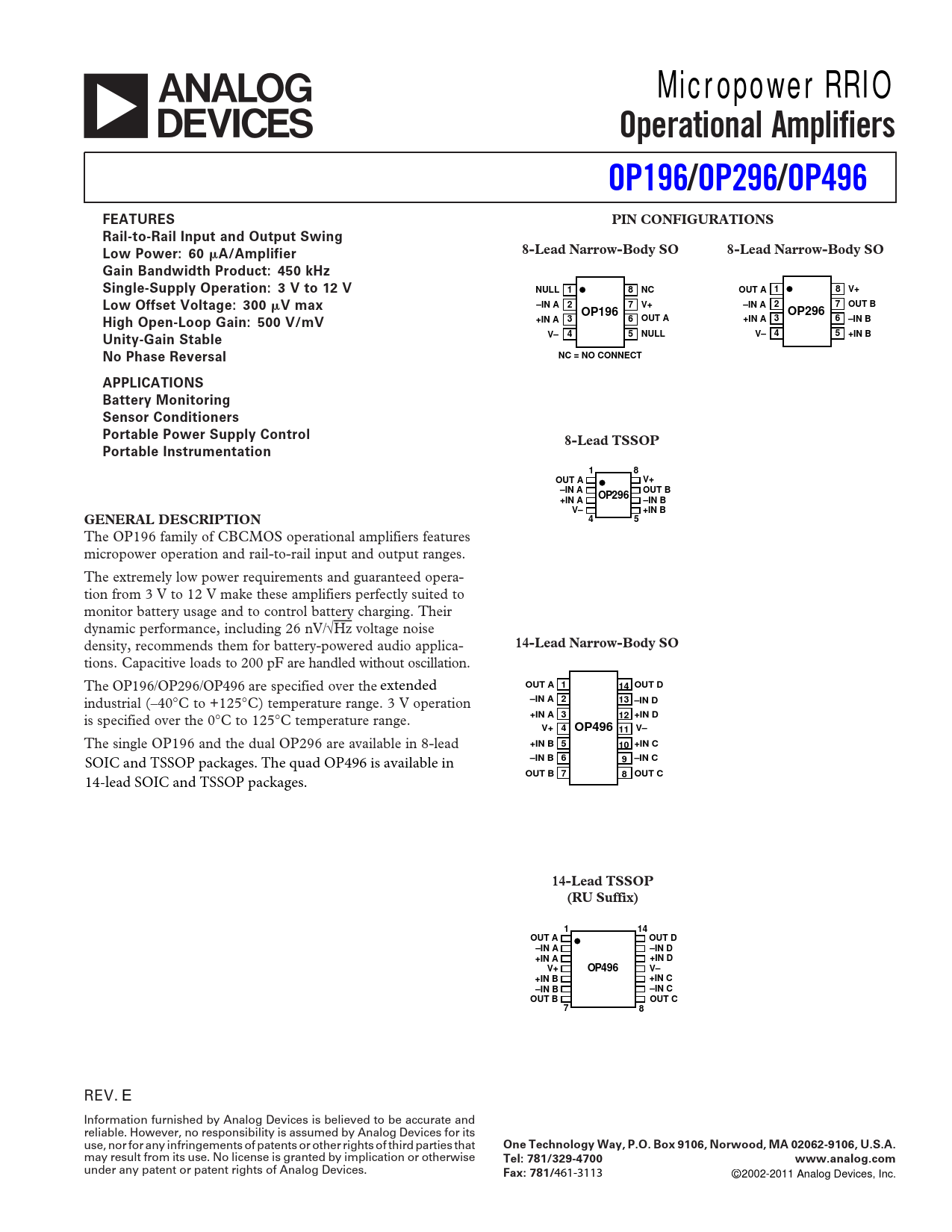

Micropower RRIO Operational Amplifiers OP196/ OP296/ OP496 FEATURES PIN CONFIGURATIONS Rail-to-Rail Input and Output Swing Low Power: 60
␮
A/Amplifier 8-Lead Narrow-Body SO 8-Lead Narrow-Body SO Gain Bandwidth Product: 450 kHz Single-Supply Operation: 3 V to 12 V NULL 1 8 NC OUT A 1 8 V+ Low Offset Voltage: 300
␮
V max –IN A 2 7 V+ –IN A 2 7 OUT B OP196 OP296 High Open-Loop Gain: 500 V/mV +IN A 3 6 OUT A +IN A 3 6 –IN B V– 4 5 Unity-Gain Stable V– 4 5 NULL +IN B No Phase Reversal NC = NO CONNECT APPLICATIONS Battery Monitoring Sensor Conditioners Portable Power Supply Control 8-Lead TSSOP Portable Instrumentation 1 8 OUT A V+ –IN A OUT B OP296 +IN A –IN B V– +IN B GENERAL DESCRIPTION 4 5
The OP196 family of CBCMOS operational amplifiers features micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed opera- tion from 3 V to 12 V make these amplifiers perfectly suited to monitor battery usage and to control battery charging. Their dynamic performance, including 26 nV/√Hz voltage noise density, recommends them for battery-powered audio applica-
14-Lead Narrow-Body SO
tions. Capacitive loads to 200 pF are handled without oscillation. The OP196/OP296/OP496 are specified over the
OUT A 1 14 OUT D
extended industrial (–40°C to +125°C) temperature range. 3 V operation
–IN A 2 13 –IN D
is specified over the 0°C to 125°C temperature range.
+IN A 3 12 +IN D V+ 4 OP496 11 V–
The single OP196 and the dual OP296 are available in 8-lead
+IN B 5 10 +IN C –IN B 6 9 –IN C
SOIC and TSSOP packages. The quad OP496 is available in
OUT B 7 8 OUT C
14-lead SOIC and TSSOP packages.
14-Lead TSSOP (RU Suffix) 1 14 OUT A OUT D –IN A –IN D +IN A +IN D V+ OP496 V– +IN B +IN C –IN B –IN C OUT B OUT C 7 8
REV. E Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
may result from its use. No license is granted by implication or otherwise
Tel: 781/329-4700 www.analog.com
under any patent or patent rights of Analog Devices.
Fax: 781/
461-3113 ©2002-2011 Analog Devices, Inc. 14 of 14 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION OP196/OP296/OP496--SPECIFICATIONS Electrical Specifications (@Vs = 5.0 V) Electrical Specifications (@Vs = 3.0 V) Electrical Specifications (@Vs = 12.0 V) ABSOLUTE MAXIMUM RATINGS ESD Caution TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION Functional Description Input Overvoltage Protection Output Phase Reversal Input Offset Voltage Nulling Driving Capacitive Loads A Micropower False-Ground Generator Single-Supply Half-Wave and Full-Wave Rectifiers Square Wave Oscillator A 3 V Low Dropout, Linear Voltage Regulator Buffering a DAC Output A High-Side Current Monitor A Single-Supply RTD Amplifier OUTLINE DIMENSIONS Ordering Guide REVISION HISTORY
