Datasheet OP113, OP213, OP413 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Low Noise, Low Drift Single-Supply Operational Amplifiers |
| Pages / Page | 24 / 6 — OP113/OP213/OP413. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. … |
| Revision | F |
| File Format / Size | PDF / 491 Kb |
| Document Language | English |

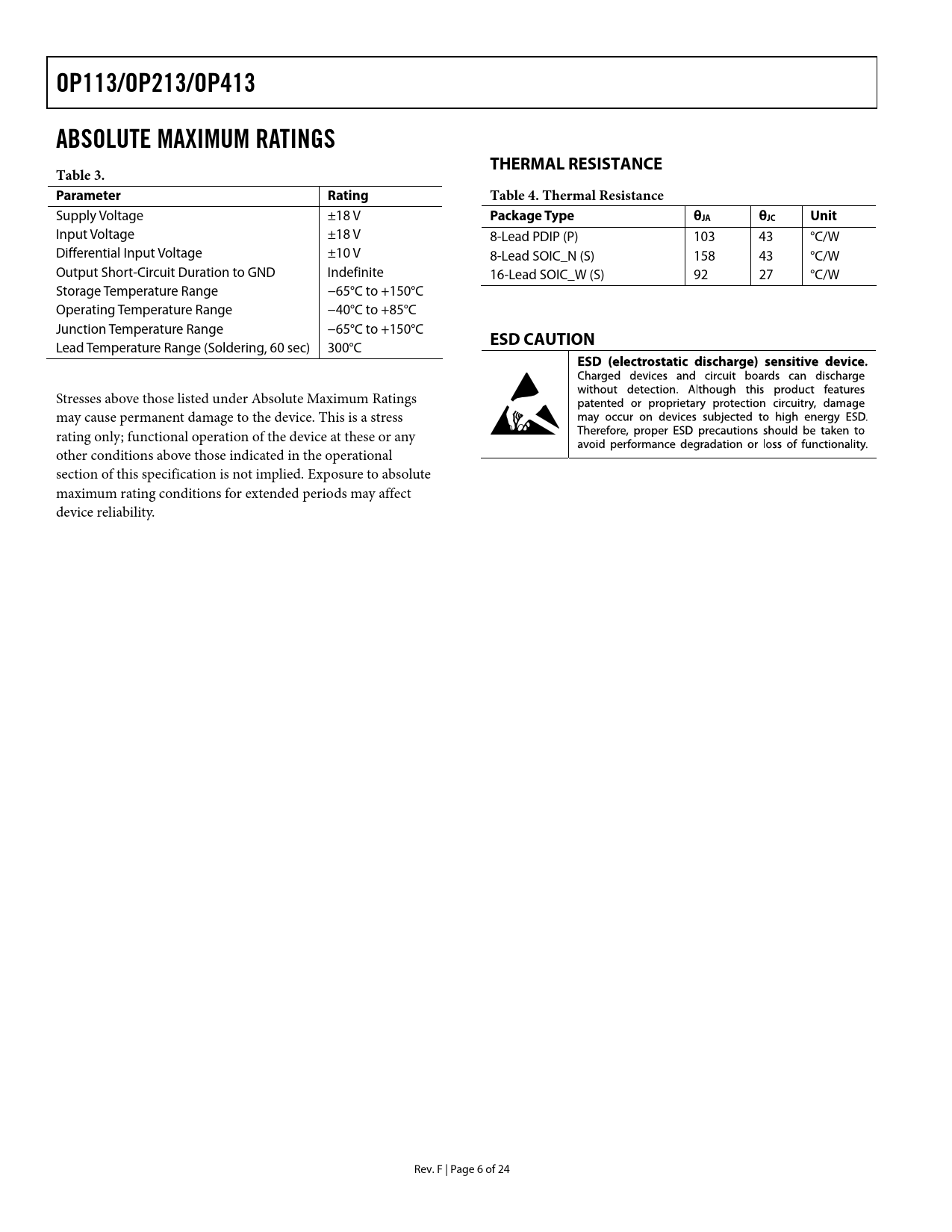

OP113/OP213/OP413. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter Rating. Table 4. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
OP113/OP213/OP413 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3. Parameter Rating Table 4. Thermal Resistance
Supply Voltage ±18 V
Package Type θJA θJC Unit
Input Voltage ±18 V 8-Lead PDIP (P) 103 43 °C/W Differential Input Voltage ±10 V 8-Lead SOIC_N (S) 158 43 °C/W Output Short-Circuit Duration to GND Indefinite 16-Lead SOIC_W (S) 92 27 °C/W Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +85°C Junction Temperature Range −65°C to +150°C
ESD CAUTION
Lead Temperature Range (Soldering, 60 sec) 300°C Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. F | Page 6 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS PHASE REVERSAL OP113 OFFSET ADJUST APPLICATION CIRCUITS A HIGH PRECISION INDUSTRIAL LOAD-CELL SCALE AMPLIFIER A LOW VOLTAGE, SINGLE SUPPLY STRAIN GAGE AMPLIFIER A HIGH ACCURACY LINEARIZED RTD THERMOMETER AMPLIFIER A HIGH ACCURACY THERMOCOUPLE AMPLIFIER AN ULTRALOW NOISE, SINGLE SUPPLY INSTRUMENTATION AMPLIFIER SUPPLY SPLITTER CIRCUIT LOW NOISE VOLTAGE REFERENCE 5 V ONLY STEREO DAC FOR MULTIMEDIA LOW VOLTAGE HEADPHONE AMPLIFIERS LOW NOISE MICROPHONE AMPLIFIER FOR MULTIMEDIA PRECISION VOLTAGE COMPARATOR OUTLINE DIMENSIONS ORDERING GUIDE
