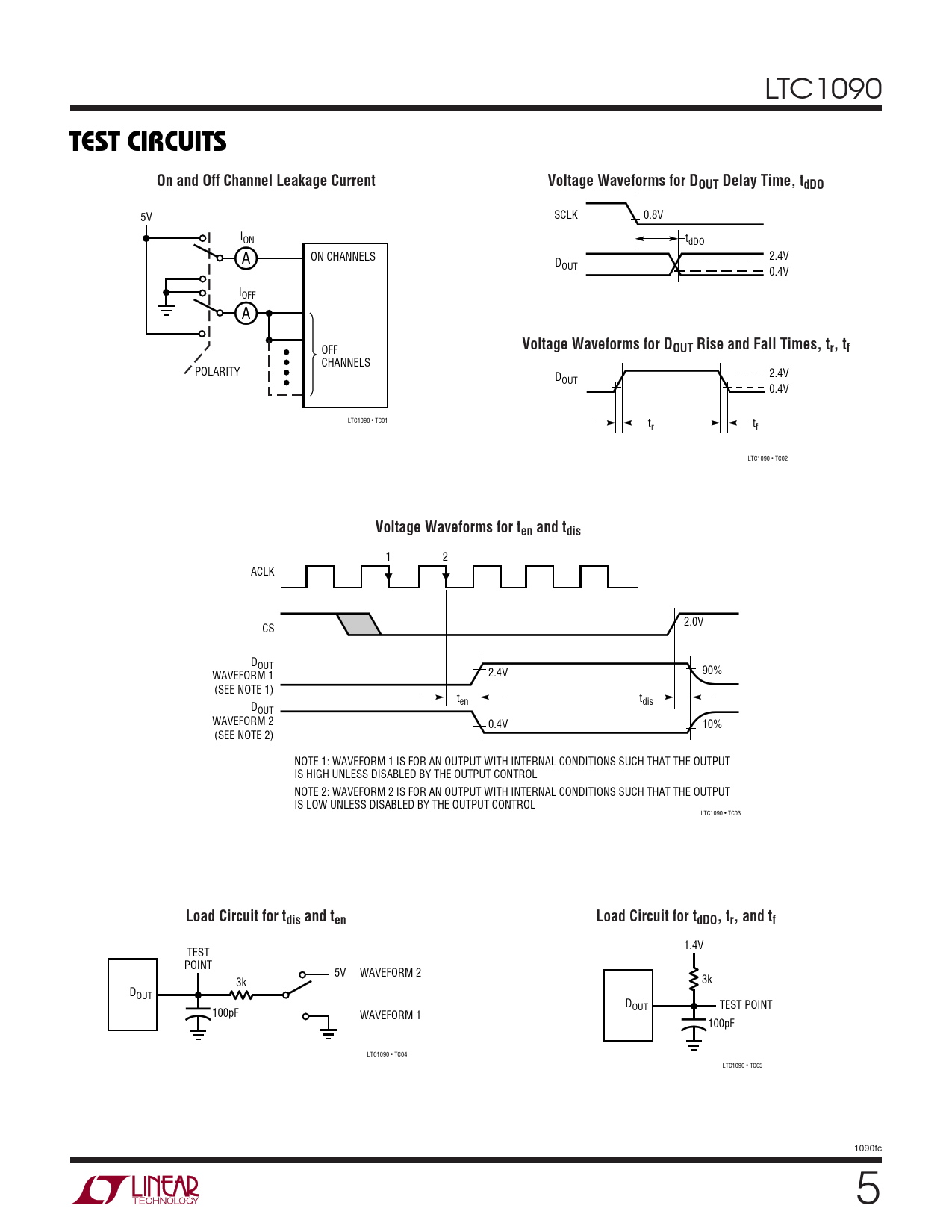

TEST CIRCUITS. On and Off Channel Leakage Current. Voltage Waveforms for DOUT Delay Time, tdDO. Voltage Waveforms for D
Model Line for this Datasheet
Text Version of Document
LTC1090
TEST CIRCUITS On and Off Channel Leakage Current Voltage Waveforms for DOUT Delay Time, tdDO
5V SCLK 0.8V ION tdDO ON CHANNELS 2.4V A DOUT 0.4V IOFF A
Voltage Waveforms for D
OFF
OUT Rise and Fall Times, tr, tf
CHANNELS POLARITY 2.4V DOUT 0.4V LTC1090 • TC01 tr tf LTC1090 • TC02
Voltage Waveforms for ten and tdis
1 2 ACLK 2.0V CS DOUT WAVEFORM 1 2.4V 90% (SEE NOTE 1) ten tdis DOUT WAVEFORM 2 0.4V 10% (SEE NOTE 2) NOTE 1: WAVEFORM 1 IS FOR AN OUTPUT WITH INTERNAL CONDITIONS SUCH THAT THE OUTPUT IS HIGH UNLESS DISABLED BY THE OUTPUT CONTROL NOTE 2: WAVEFORM 2 IS FOR AN OUTPUT WITH INTERNAL CONDITIONS SUCH THAT THE OUTPUT IS LOW UNLESS DISABLED BY THE OUTPUT CONTROL LTC1090 • TC03
Load Circuit for tdis and ten Load Circuit for tdDO, tr, and tf
1.4V TEST POINT 5V WAVEFORM 2 3k 3k DOUT DOUT TEST POINT 100pF WAVEFORM 1 100pF LTC1090 • TC04 LTC1090 • TC05 1090fc 5
