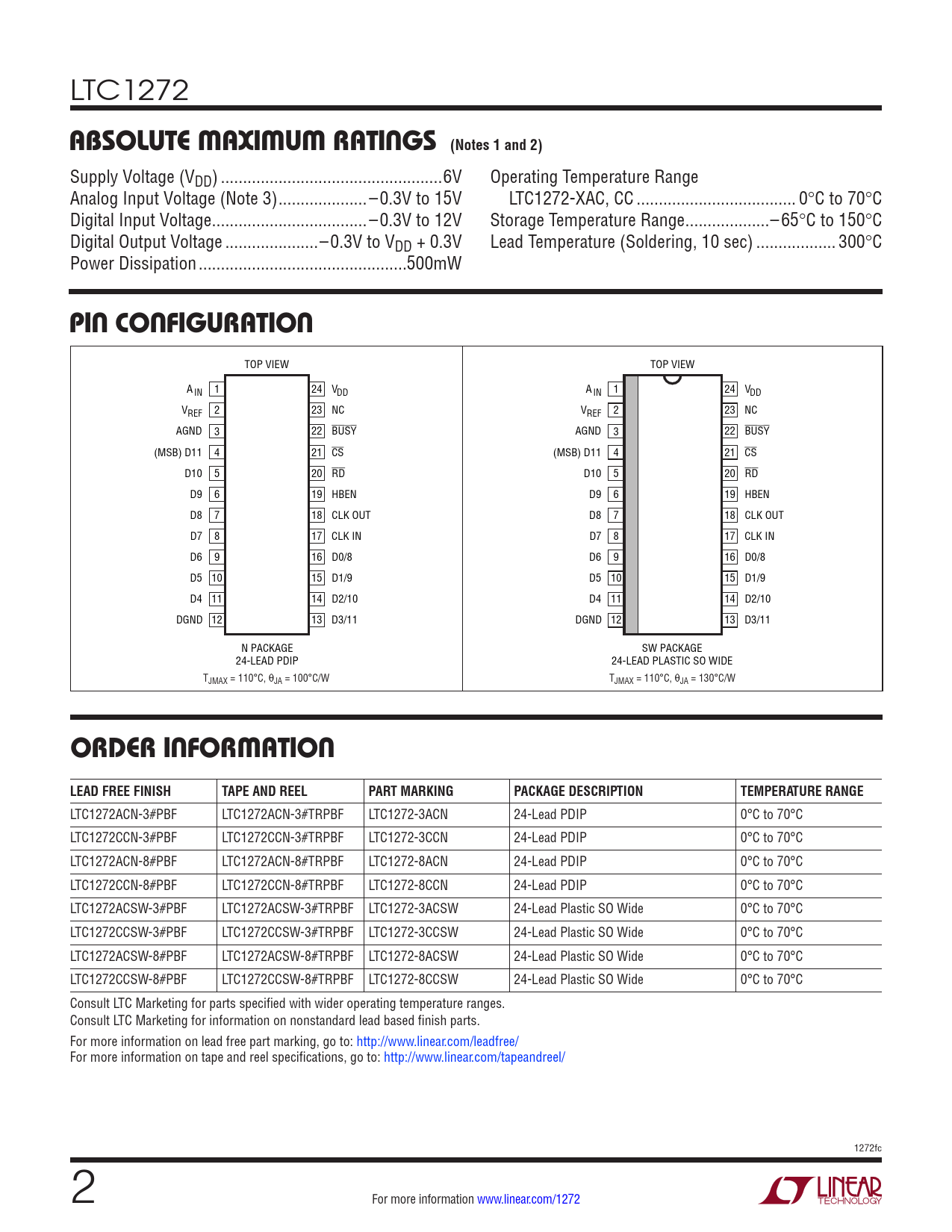

LTC1272 ABSOLUTE MAXIMUM RATINGS (Notes 1 and 2) Supply Voltage (VDD) ..6V Operating Temperature Range Analog Input Voltage (Note 3) ..–0.3V to 15V LTC1272-XAC, CC .. 0°C to 70°C Digital Input Voltage ...–0.3V to 12V Storage Temperature Range ...–65°C to 150°C Digital Output Voltage ...–0.3V to VDD + 0.3V Lead Temperature (Soldering, 10 sec) .. 300°C Power Dissipation ...500mW PIN CONFIGURATION TOP VIEW TOP VIEW A 1 24 IN VDD A 1 24 IN VDD V 2 23 REF NC V 2 23 REF NC AGND 3 22 BUSY AGND 3 22 BUSY (MSB) D11 4 21 CS (MSB) D11 4 21 CS D10 5 20 RD D10 5 20 RD D9 6 19 HBEN D9 6 19 HBEN D8 7 18 CLK OUT D8 7 18 CLK OUT D7 8 17 CLK IN D7 8 17 CLK IN D6 9 16 D0/8 D6 9 16 D0/8 D5 10 15 D1/9 D5 10 15 D1/9 D4 11 14 D2/10 D4 11 14 D2/10 DGND 12 13 D3/11 DGND 12 13 D3/11 N PACKAGE SW PACKAGE 24-LEAD PDIP 24-LEAD PLASTIC SO WIDE TJMAX = 110°C, θJA = 100°C/W TJMAX = 110°C, θJA = 130°C/W ORDER INFORMATIONLEAD FREE FINISHTAPE AND REELPART MARKINGPACKAGE DESCRIPTIONTEMPERATURE RANGE LTC1272ACN-3#PBF LTC1272ACN-3#TRPBF LTC1272-3ACN 24-Lead PDIP 0°C to 70°C LTC1272CCN-3#PBF LTC1272CCN-3#TRPBF LTC1272-3CCN 24-Lead PDIP 0°C to 70°C LTC1272ACN-8#PBF LTC1272ACN-8#TRPBF LTC1272-8ACN 24-Lead PDIP 0°C to 70°C LTC1272CCN-8#PBF LTC1272CCN-8#TRPBF LTC1272-8CCN 24-Lead PDIP 0°C to 70°C LTC1272ACSW-3#PBF LTC1272ACSW-3#TRPBF LTC1272-3ACSW 24-Lead Plastic SO Wide 0°C to 70°C LTC1272CCSW-3#PBF LTC1272CCSW-3#TRPBF LTC1272-3CCSW 24-Lead Plastic SO Wide 0°C to 70°C LTC1272ACSW-8#PBF LTC1272ACSW-8#TRPBF LTC1272-8ACSW 24-Lead Plastic SO Wide 0°C to 70°C LTC1272CCSW-8#PBF LTC1272CCSW-8#TRPBF LTC1272-8CCSW 24-Lead Plastic SO Wide 0°C to 70°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 1272fc 2 For more information www.linear.com/1272 Document Outline FEATURES APPLICATIONS DESCRIPTION TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION CONVERTER CHARACTERISTICS INTERNAL REFERENCE CHARACTERISTICS DIGITAL AND DC ELECTRICAL CHARACTERISTICS DYNAMIC ACCURACY ANALOG INPUT TIMING CHARACTERISTICS PIN FUNCTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION REVISION HISTORY PACKAGE DESCRIPTION
