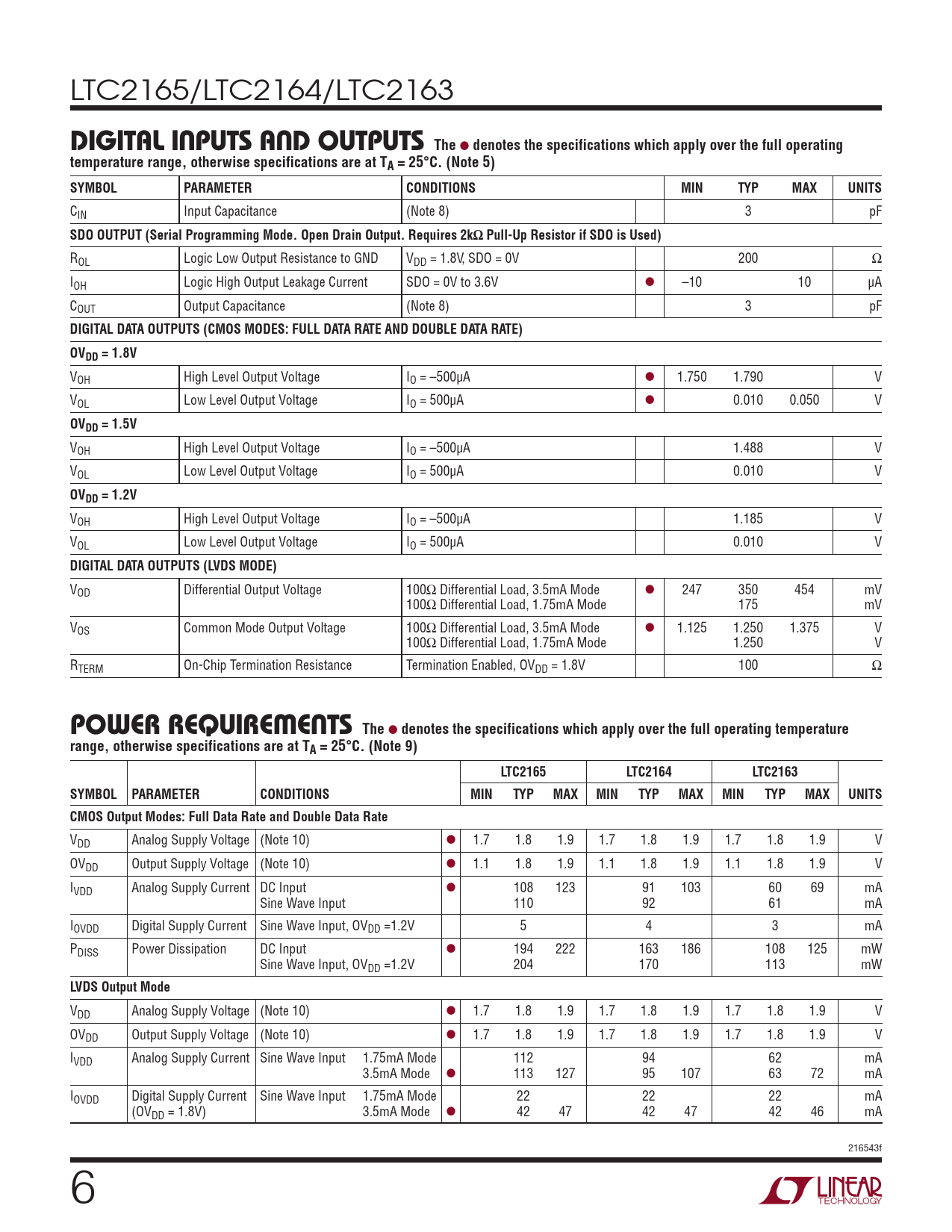

DigiTal inpuTs anD ouTpuTs. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LTC2163CUK#PBF LTC2163CUK#PBF LTC2163CUK#TRPBF LTC2163CUK#TRPBF LTC2163IUK#PBF LTC2163IUK#PBF LTC2163IUK#TRPBF LTC2163IUK#TRPBF
Text Version of Document
LTC2165/LTC2164/LTC2163
DigiTal inpuTs anD ouTpuTs The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
CIN Input Capacitance (Note 8) 3 pF
SDO OUTPUT (Serial Programming Mode. Open Drain Output. Requires 2kΩ Pull-Up Resistor if SDO is Used)
ROL Logic Low Output Resistance to GND VDD = 1.8V, SDO = 0V 200 Ω IOH Logic High Output Leakage Current SDO = 0V to 3.6V l –10 10 µA COUT Output Capacitance (Note 8) 3 pF
DIGITAL DATA OUTPUTS (CMOS MODES: FULL DATA RATE AND DOUBLE DATA RATE) OVDD = 1.8V
VOH High Level Output Voltage IO = –500µA l 1.750 1.790 V VOL Low Level Output Voltage IO = 500µA l 0.010 0.050 V
OVDD = 1.5V
VOH High Level Output Voltage IO = –500µA 1.488 V VOL Low Level Output Voltage IO = 500µA 0.010 V
OVDD = 1.2V
VOH High Level Output Voltage IO = –500µA 1.185 V VOL Low Level Output Voltage IO = 500µA 0.010 V
DIGITAL DATA OUTPUTS (LVDS MODE)
VOD Differential Output Voltage 100Ω Differential Load, 3.5mA Mode l 247 350 454 mV 100Ω Differential Load, 1.75mA Mode 175 mV VOS Common Mode Output Voltage 100Ω Differential Load, 3.5mA Mode l 1.125 1.250 1.375 V 100Ω Differential Load, 1.75mA Mode 1.250 V RTERM On-Chip Termination Resistance Termination Enabled, OVDD = 1.8V 100 Ω
power requireMenTs The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 9) LTC2165 LTC2164 LTC2163 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS CMOS Output Modes: Full Data Rate and Double Data Rate
VDD Analog Supply Voltage (Note 10) l 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V OVDD Output Supply Voltage (Note 10) l 1.1 1.8 1.9 1.1 1.8 1.9 1.1 1.8 1.9 V IVDD Analog Supply Current DC Input l 108 123 91 103 60 69 mA Sine Wave Input 110 92 61 mA IOVDD Digital Supply Current Sine Wave Input, OVDD =1.2V 5 4 3 mA PDISS Power Dissipation DC Input l 194 222 163 186 108 125 mW Sine Wave Input, OVDD =1.2V 204 170 113 mW
LVDS Output Mode
VDD Analog Supply Voltage (Note 10) l 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V OVDD Output Supply Voltage (Note 10) l 1.7 1.8 1.9 1.7 1.8 1.9 1.7 1.8 1.9 V IVDD Analog Supply Current Sine Wave Input 1.75mA Mode 112 94 62 mA 3.5mA Mode l 113 127 95 107 63 72 mA IOVDD Digital Supply Current Sine Wave Input 1.75mA Mode 22 22 22 mA (OVDD = 1.8V) 3.5mA Mode l 42 47 42 47 42 46 mA 216543f 6 Document Outline Features Applications Description Absolute Maximum Ratings Typical Application Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Electrical Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
