TYPICAL PERFOR A CE CHARACTERISTICS. LTC2220: 8192 Point FFT,. fIN = 30MHz, –1dB, 2V Range,. fIN = 30MHz, –1dB, 1V Range,
Model Line for this Datasheet
Text Version of Document
LTC2220/LTC2221

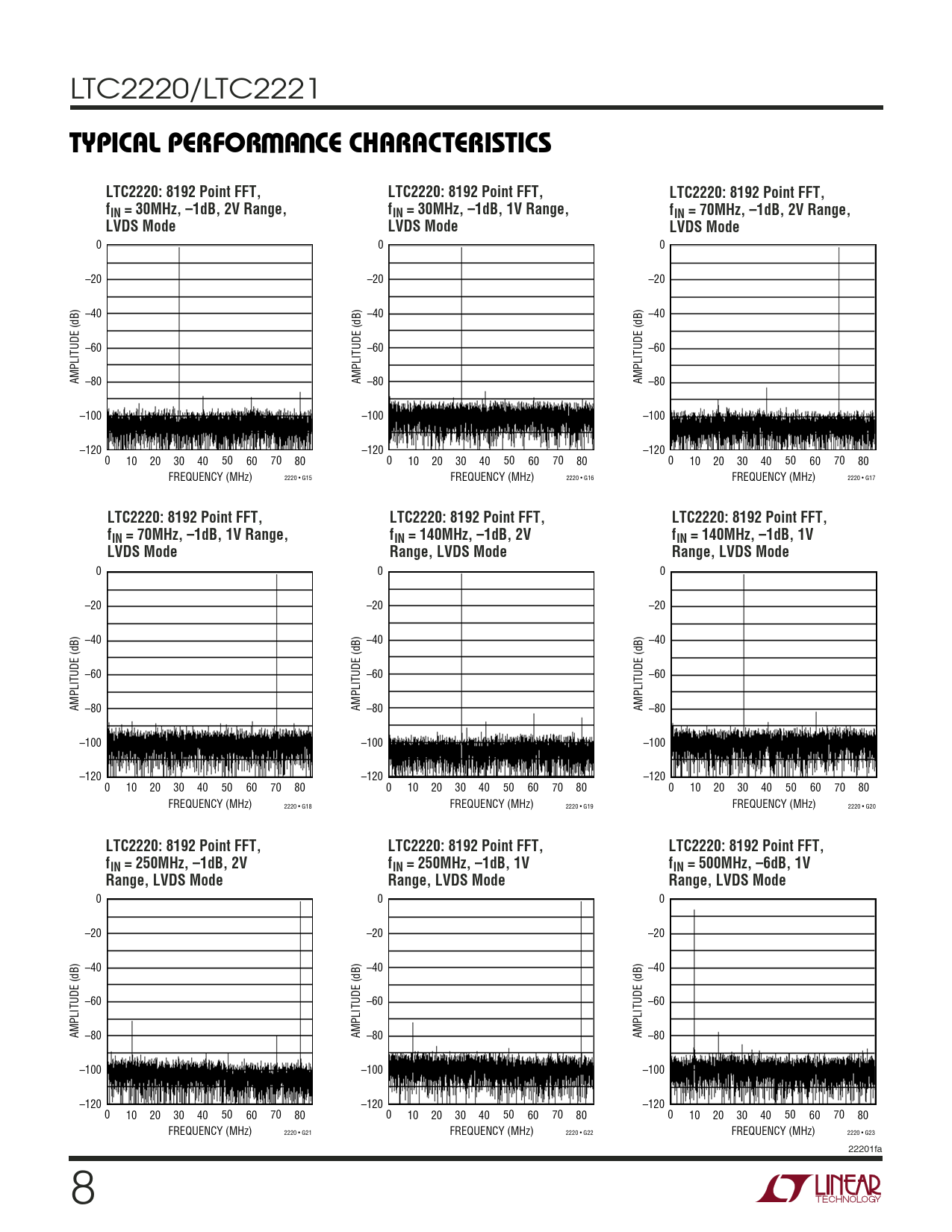

W U TYPICAL PERFOR A CE CHARACTERISTICS LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, fIN = 30MHz, –1dB, 2V Range, fIN = 30MHz, –1dB, 1V Range, fIN = 70MHz, –1dB, 2V Range, LVDS Mode LVDS Mode LVDS Mode
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 –100 –100 –100 –120 –120 –120 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 FREQUENCY (MHz) 2220 • G15 FREQUENCY (MHz) 2220 • G16 FREQUENCY (MHz) 2220 • G17
LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, fIN = 70MHz, –1dB, 1V Range, fIN = 140MHz, –1dB, 2V fIN = 140MHz, –1dB, 1V LVDS Mode Range, LVDS Mode Range, LVDS Mode
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 –100 –100 –100 –120 –120 –120 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 FREQUENCY (MHz) 2220 • G18 FREQUENCY (MHz) 2220 • G19 FREQUENCY (MHz) 2220 • G20
LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, fIN = 250MHz, –1dB, 2V fIN = 250MHz, –1dB, 1V fIN = 500MHz, –6dB, 1V Range, LVDS Mode Range, LVDS Mode Range, LVDS Mode
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 –100 –100 –100 –120 –120 –120 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 FREQUENCY (MHz) 2220 • G21 FREQUENCY (MHz) 2220 • G22 FREQUENCY (MHz) 2220 • G23 22201fa 8
W U TYPICAL PERFOR A CE CHARACTERISTICS LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, fIN = 30MHz, –1dB, 2V Range, fIN = 30MHz, –1dB, 1V Range, fIN = 70MHz, –1dB, 2V Range, LVDS Mode LVDS Mode LVDS Mode
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 –100 –100 –100 –120 –120 –120 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 FREQUENCY (MHz) 2220 • G15 FREQUENCY (MHz) 2220 • G16 FREQUENCY (MHz) 2220 • G17
LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, fIN = 70MHz, –1dB, 1V Range, fIN = 140MHz, –1dB, 2V fIN = 140MHz, –1dB, 1V LVDS Mode Range, LVDS Mode Range, LVDS Mode
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 –100 –100 –100 –120 –120 –120 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 FREQUENCY (MHz) 2220 • G18 FREQUENCY (MHz) 2220 • G19 FREQUENCY (MHz) 2220 • G20
LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, LTC2220: 8192 Point FFT, fIN = 250MHz, –1dB, 2V fIN = 250MHz, –1dB, 1V fIN = 500MHz, –6dB, 1V Range, LVDS Mode Range, LVDS Mode Range, LVDS Mode
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 AMPLITUDE (dB) –80 –100 –100 –100 –120 –120 –120 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 0 10 20 30 40 50 60 70 80 FREQUENCY (MHz) 2220 • G21 FREQUENCY (MHz) 2220 • G22 FREQUENCY (MHz) 2220 • G23 22201fa 8
