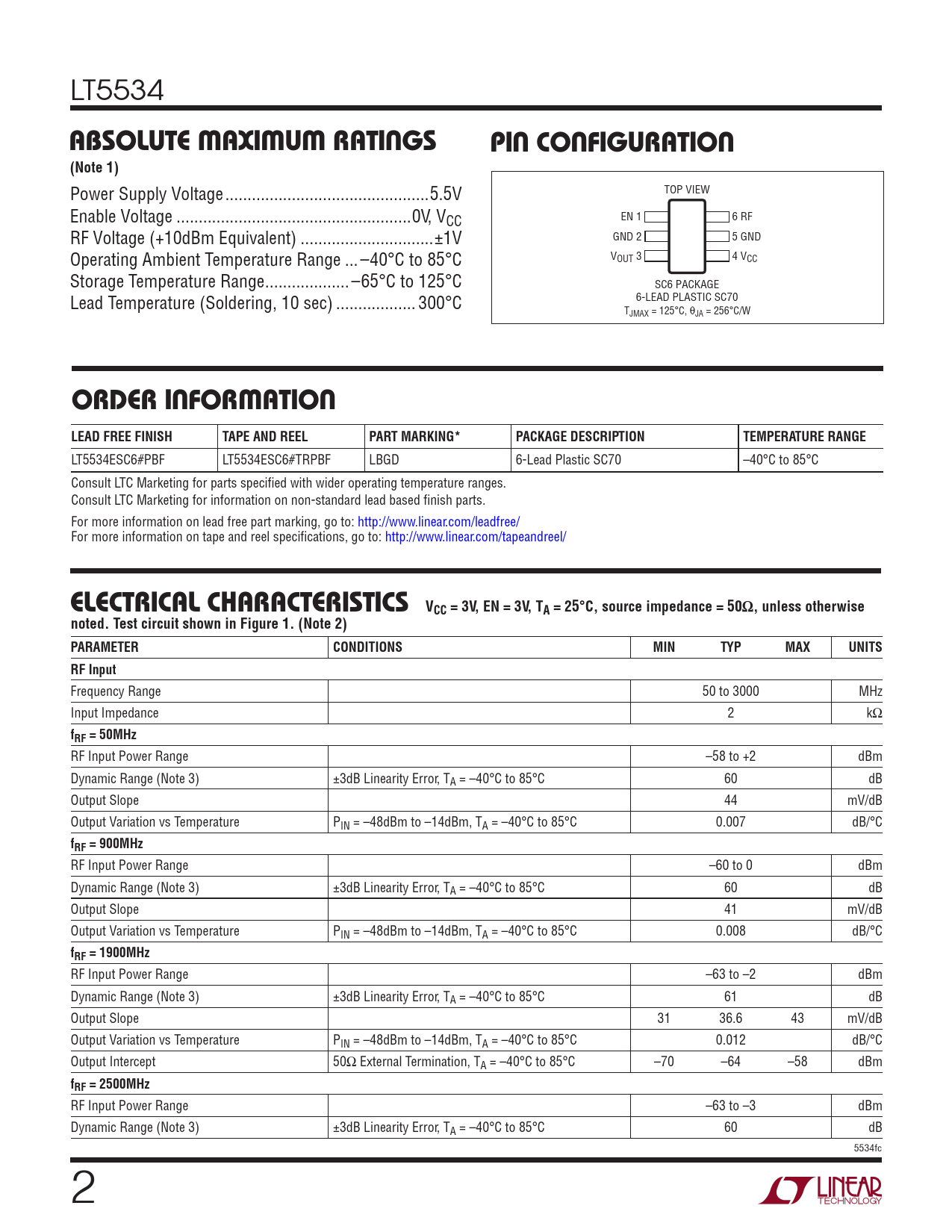

LT5534
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Power Supply Voltage ..5.5V TOP VIEW Enable Voltage ...0V, VCC EN 1 6 RF RF Voltage (+10dBm Equivalent) ..±1V GND 2 5 GND Operating Ambient Temperature Range ...–40°C to 85°C VOUT 3 4 VCC Storage Temperature Range ...–65°C to 125°C SC6 PACKAGE Lead Temperature (Soldering, 10 sec) .. 300°C 6-LEAD PLASTIC SC70 TJMAX = 125°C, θJA = 256°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT5534ESC6#PBF LT5534ESC6#TRPBF LBGD 6-Lead Plastic SC70 –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS VCC = 3V, EN = 3V, TA = 25°C, source impedance = 50Ω, unless otherwise noted. Test circuit shown in Figure 1. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS RF Input
Frequency Range 50 to 3000 MHz Input Impedance 2 kΩ
fRF = 50MHz
RF Input Power Range –58 to +2 dBm Dynamic Range (Note 3) ±3dB Linearity Error, TA = –40°C to 85°C 60 dB Output Slope 44 mV/dB Output Variation vs Temperature PIN = –48dBm to –14dBm, TA = –40°C to 85°C 0.007 dB/°C
fRF = 900MHz
RF Input Power Range –60 to 0 dBm Dynamic Range (Note 3) ±3dB Linearity Error, TA = –40°C to 85°C 60 dB Output Slope 41 mV/dB Output Variation vs Temperature PIN = –48dBm to –14dBm, TA = –40°C to 85°C 0.008 dB/°C
fRF = 1900MHz
RF Input Power Range –63 to –2 dBm Dynamic Range (Note 3) ±3dB Linearity Error, TA = –40°C to 85°C 61 dB Output Slope 31 36.6 43 mV/dB Output Variation vs Temperature PIN = –48dBm to –14dBm, TA = –40°C to 85°C 0.012 dB/°C Output Intercept 50Ω External Termination, TA = –40°C to 85°C –70 –64 –58 dBm
fRF = 2500MHz
RF Input Power Range –63 to –3 dBm Dynamic Range (Note 3) ±3dB Linearity Error, TA = –40°C to 85°C 60 dB 5534fc 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram TEST CIRCUIT Applications Information Revision History Package Description Related Parts
