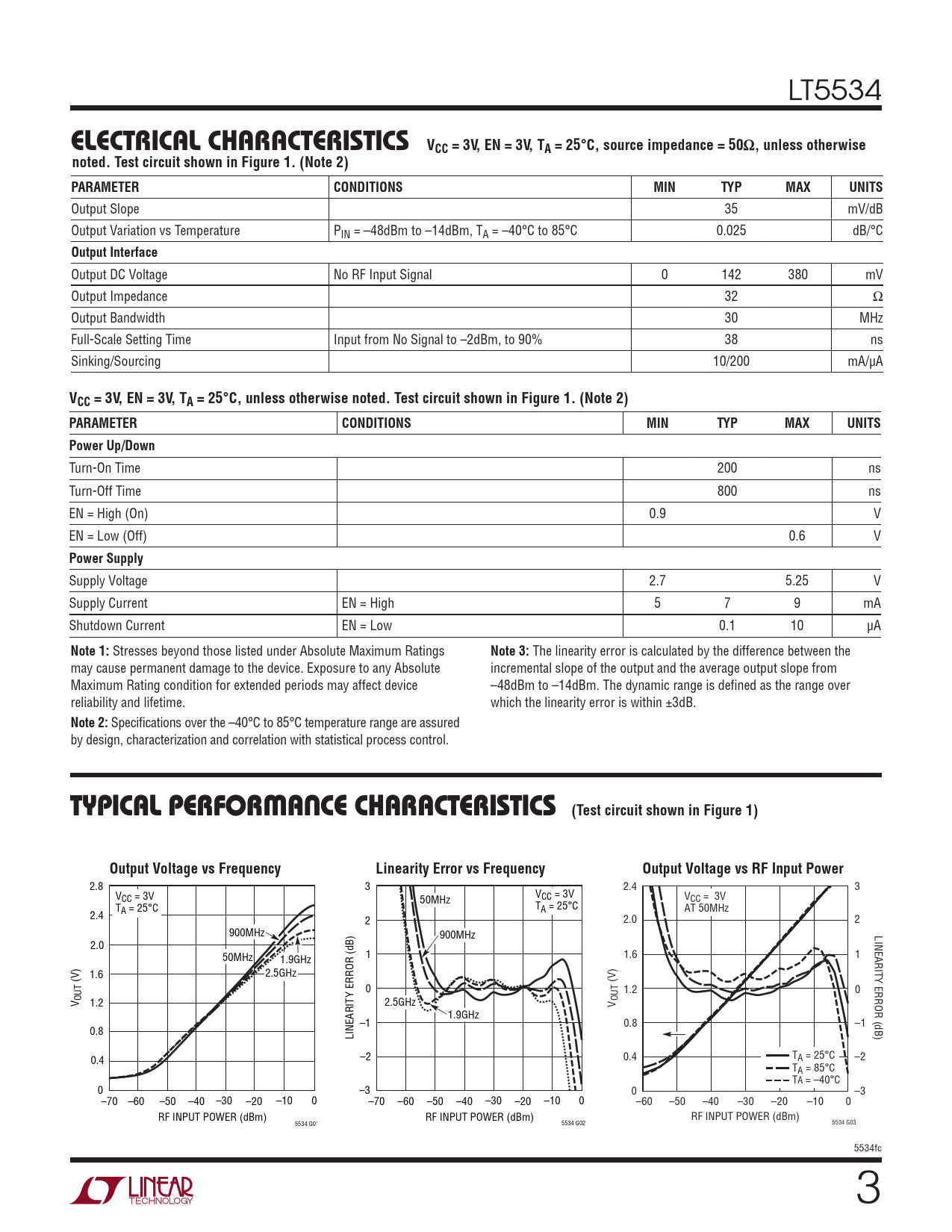

ELECTRICAL CHARACTERISTICS. VCC = 3V, EN = 3V, TA = 25°C, source impedance = 50Ω, unless otherwise
Model Line for this Datasheet
Text Version of Document
LT5534
ELECTRICAL CHARACTERISTICS VCC = 3V, EN = 3V, TA = 25°C, source impedance = 50Ω, unless otherwise noted. Test circuit shown in Figure 1. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Output Slope 35 mV/dB Output Variation vs Temperature PIN = –48dBm to –14dBm, TA = –40°C to 85°C 0.025 dB/°C
Output Interface
Output DC Voltage No RF Input Signal 0 142 380 mV Output Impedance 32 Ω Output Bandwidth 30 MHz Full-Scale Setting Time Input from No Signal to –2dBm, to 90% 38 ns Sinking/Sourcing 10/200 mA/µA
VCC = 3V, EN = 3V, TA = 25°C, unless otherwise noted. Test circuit shown in Figure 1. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS Power Up/Down
Turn-On Time 200 ns Turn-Off Time 800 ns EN = High (On) 0.9 V EN = Low (Off) 0.6 V
Power Supply
Supply Voltage 2.7 5.25 V Supply Current EN = High 5 7 9 mA Shutdown Current EN = Low 0.1 10 µA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
The linearity error is calculated by the difference between the may cause permanent damage to the device. Exposure to any Absolute incremental slope of the output and the average output slope from Maximum Rating condition for extended periods may affect device –48dBm to –14dBm. The dynamic range is defined as the range over reliability and lifetime. which the linearity error is within ±3dB.
Note 2:
Specifications over the –40°C to 85°C temperature range are assured by design, characterization and correlation with statistical process control.
TYPICAL PERFORMANCE CHARACTERISTICS (Test circuit shown in Figure 1) Output Voltage vs Frequency Linearity Error vs Frequency Output Voltage vs RF Input Power
2.8 3 2.4 3 VCC = 3V 50MHz VCC = 3V VCC = 3V T T AT 50MHz 2.4 A = 25°C A = 25°C 2 2.0 2 900MHz 900MHz LINEARITY ERROR (dB) 2.0 50MHz 1.9GHz 1 1.6 1 1.6 2.5GHz (V) (V) 0 1.2 0 V OUT 1.2 2.5GHz V OUT 1.9GHz –1 0.8 –1 0.8 LINEARITY ERROR (dB) 0.4 –2 0.4 TA = 25°C –2 TA = 85°C TA = –40°C 0 –3 0 –3 –70 –60 –50 –40 –30 –20 –10 0 –70 –60 –50 –40 –30 –20 –10 0 –60 –50 –40 –30 –20 –10 0 RF INPUT POWER (dBm) RF INPUT POWER (dBm) RF INPUT POWER (dBm) 5534 G01 5534 G02 5534 G03 5534fc 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram TEST CIRCUIT Applications Information Revision History Package Description Related Parts
