LTC2265-14/ LTC2264-14/LTC2263-14

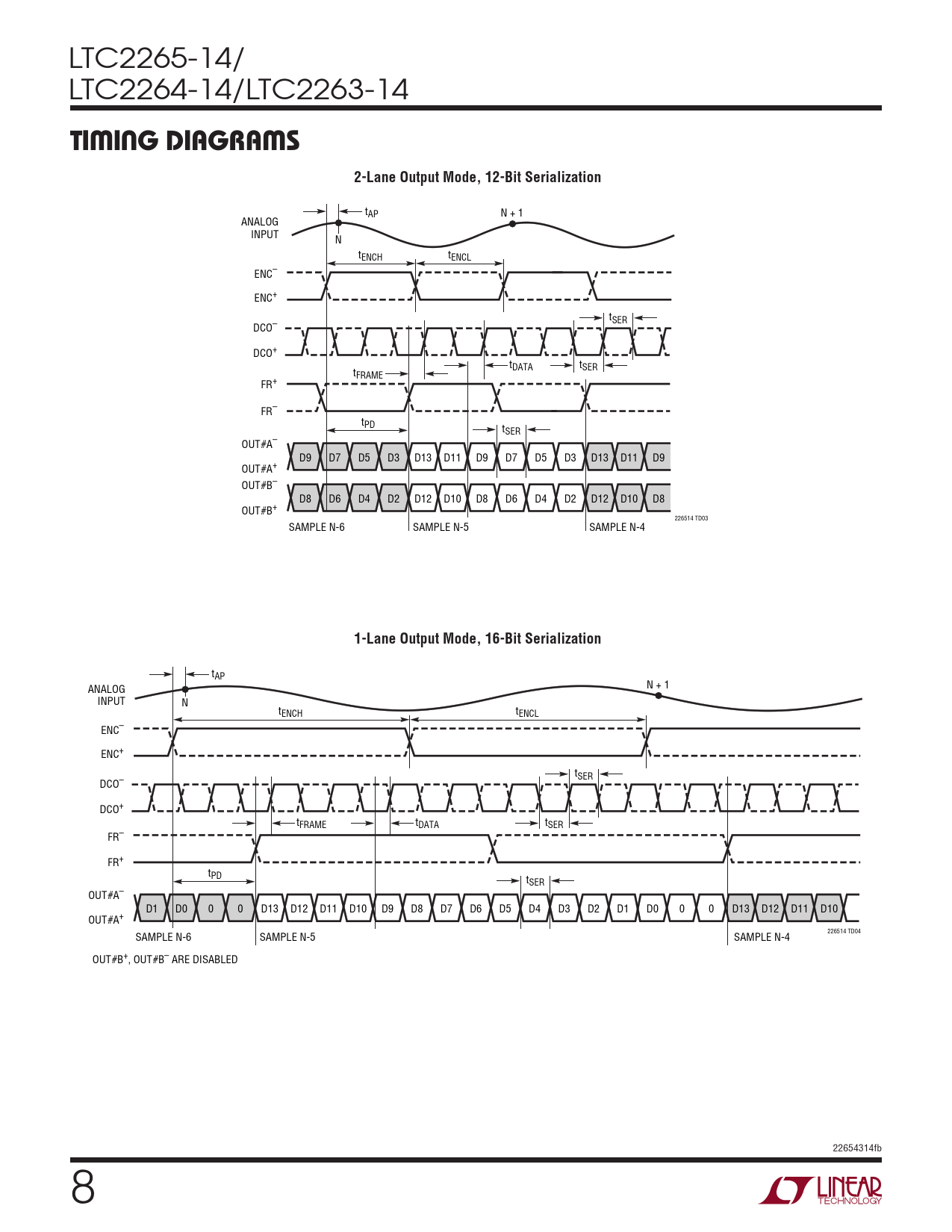

TIMING DIAGRAMS 2-Lane Output Mode, 12-Bit Serialization
tAP N + 1 ANALOG INPUT N tENCH tENCL ENC– ENC+ tSER DCO– DCO+ t t DATA tSER FRAME FR+ FR– tPD tSER OUT#A– D9 D7 D5 D3 D13 D11 D9 D7 D5 D3 D13 D11 D9 OUT#A+ OUT#B– D8 D6 D4 D2 D12 D10 D8 D6 D4 D2 D12 D10 D8 OUT#B+ 226514 TD03 SAMPLE N-6 SAMPLE N-5 SAMPLE N-4
1-Lane Output Mode, 16-Bit Serialization
tAP N + 1 ANALOG INPUT N tENCH tENCL ENC– ENC+ tSER DCO– DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D1 D0 0 0 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 0 0 D13 D12 D11 D10 OUT#A+ 226514 TD04 SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 OUT#B+, OUT#B– ARE DISABLED 22654314fb 8 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts
TIMING DIAGRAMS 2-Lane Output Mode, 12-Bit Serialization
tAP N + 1 ANALOG INPUT N tENCH tENCL ENC– ENC+ tSER DCO– DCO+ t t DATA tSER FRAME FR+ FR– tPD tSER OUT#A– D9 D7 D5 D3 D13 D11 D9 D7 D5 D3 D13 D11 D9 OUT#A+ OUT#B– D8 D6 D4 D2 D12 D10 D8 D6 D4 D2 D12 D10 D8 OUT#B+ 226514 TD03 SAMPLE N-6 SAMPLE N-5 SAMPLE N-4
1-Lane Output Mode, 16-Bit Serialization
tAP N + 1 ANALOG INPUT N tENCH tENCL ENC– ENC+ tSER DCO– DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D1 D0 0 0 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 0 0 D13 D12 D11 D10 OUT#A+ 226514 TD04 SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 OUT#B+, OUT#B– ARE DISABLED 22654314fb 8 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Functional Block Diagram Applications Information Typical Applications Package Description Revision History Related Parts
