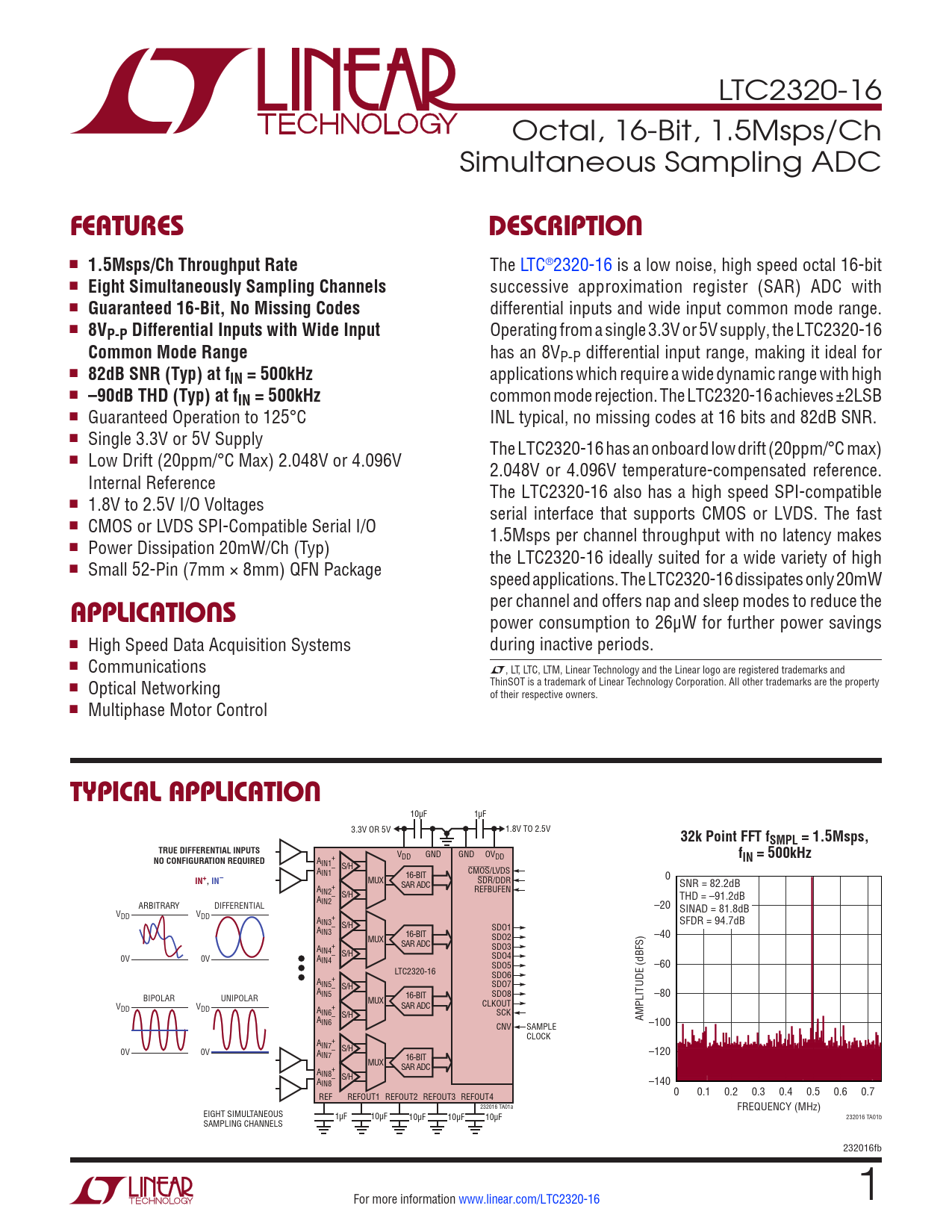

LTC2320-16 Octal, 16-Bit, 1.5Msps/Ch Simultaneous Sampling ADC
FEATURES DESCRIPTION
n
1.5Msps/Ch Throughput Rate
The LTC®2320-16 is a low noise, high speed octal 16-bit n
Eight Simultaneously Sampling Channels
successive approximation register (SAR) ADC with n
Guaranteed 16-Bit, No Missing Codes
differential inputs and wide input common mode range. n
8VP-P Differential Inputs with Wide Input
Operating from a single 3.3V or 5V supply, the LTC2320-16
Common Mode Range
has an 8VP-P differential input range, making it ideal for n
82dB SNR (Typ) at fIN = 500kHz
applications which require a wide dynamic range with high n
–90dB THD (Typ) at fIN = 500kHz
common mode rejection. The LTC2320-16 achieves ±2LSB n Guaranteed Operation to 125°C INL typical, no missing codes at 16 bits and 82dB SNR. n Single 3.3V or 5V Supply The LTC2320-16 has an onboard low drift (20ppm/°C max) n Low Drift (20ppm/°C Max) 2.048V or 4.096V 2.048V or 4.096V temperature-compensated reference. Internal Reference The LTC2320-16 also has a high speed SPI-compatible n 1.8V to 2.5V I/O Voltages serial interface that supports CMOS or LVDS. The fast n CMOS or LVDS SPI-Compatible Serial I/O 1.5Msps per channel throughput with no latency makes n Power Dissipation 20mW/Ch (Typ) the LTC2320-16 ideally suited for a wide variety of high n Small 52-Pin (7mm × 8mm) QFN Package speed applications. The LTC2320-16 dissipates only 20mW per channel and offers nap and sleep modes to reduce the
APPLICATIONS
power consumption to 26μW for further power savings n High Speed Data Acquisition Systems during inactive periods. n Communications L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property n Optical Networking of their respective owners. n Multiphase Motor Control
