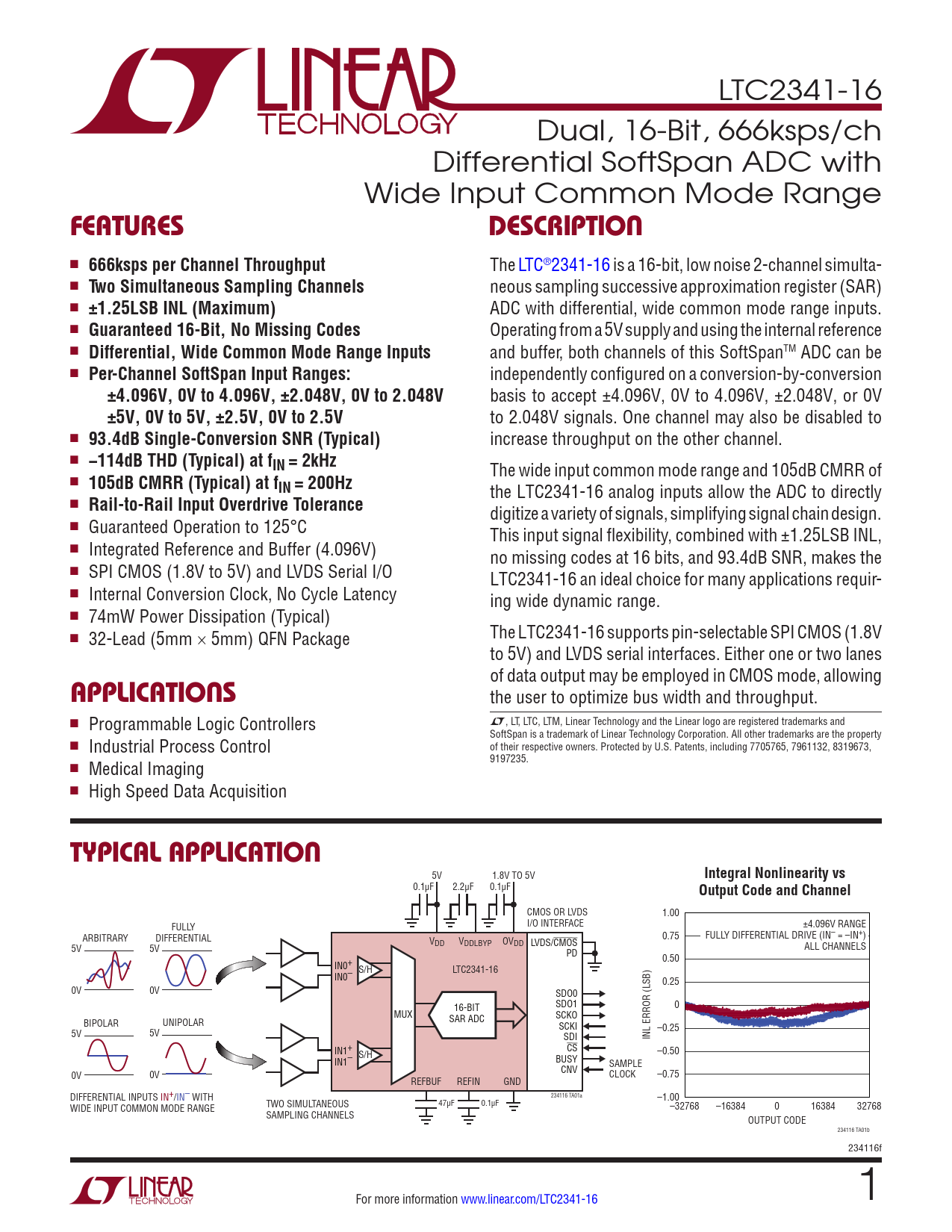

FEATURES. DESCRIPTION. 666ksps per Channel Throughput. Two Simultaneous Sampling Channels. ±1.25LSB INL (Maximum)
Model Line for this Datasheet
Text Version of Document
LTC2341-16 Dual, 16-Bit, 666ksps/ch Differential SoftSpan ADC with Wide Input Common Mode Range
FEATURES DESCRIPTION
n
666ksps per Channel Throughput
The LTC®2341-16 is a 16-bit, low noise 2-channel simulta- n
Two Simultaneous Sampling Channels
neous sampling successive approximation register (SAR) n
±1.25LSB INL (Maximum)
ADC with differential, wide common mode range inputs. n
Guaranteed 16-Bit, No Missing Codes
Operating from a 5V supply and using the internal reference n
Differential, Wide Common Mode Range Inputs
and buffer, both channels of this SoftSpanTM ADC can be n
Per-Channel SoftSpan Input Ranges:
independently configured on a conversion-by-conversion
±4.096V, 0V to 4.096V, ±2.048V, 0V to 2.048V
basis to accept ±4.096V, 0V to 4.096V, ±2.048V, or 0V
±5V, 0V to 5V, ±2.5V, 0V to 2.5V
to 2.048V signals. One channel may also be disabled to n
93.4dB Single-Conversion SNR (Typical)
increase throughput on the other channel. n
−114dB THD (Typical) at fIN = 2kHz
The wide input common mode range and 105dB CMRR of n
105dB CMRR (Typical) at fIN = 200Hz
the LTC2341-16 analog inputs allow the ADC to directly n
Rail-to-Rail Input Overdrive Tolerance
digitize a variety of signals, simplifying signal chain design. n Guaranteed Operation to 125°C This input signal flexibility, combined with ±1.25LSB INL, n Integrated Reference and Buffer (4.096V) no missing codes at 16 bits, and 93.4dB SNR, makes the n SPI CMOS (1.8V to 5V) and LVDS Serial I/O LTC2341-16 an ideal choice for many applications requir- n Internal Conversion Clock, No Cycle Latency ing wide dynamic range. n 74mW Power Dissipation (Typical) n The LTC2341-16 supports pin-selectable SPI CMOS (1.8V 32-Lead (5mm × 5mm) QFN Package to 5V) and LVDS serial interfaces. Either one or two lanes of data output may be employed in CMOS mode, allowing
APPLICATIONS
the user to optimize bus width and throughput. L n , LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and Programmable Logic Controllers SoftSpan is a trademark of Linear Technology Corporation. All other trademarks are the property n of their respective owners. Protected by U.S. Patents, including 7705765, 7961132, 8319673, Industrial Process Control 9197235. n Medical Imaging n High Speed Data Acquisition
TYPICAL APPLICATION
5V 1.8V TO 5V
Integral Nonlinearity vs
0.1µF 2.2µF 0.1µF
Output Code and Channel vs Output Code and Channel
CMOS OR LVDS 1.00 FULLY I/O INTERFACE ±4.096V RANGE ARBITRARY DIFFERENTIAL V 0.75 FULLY DIFFERENTIAL DRIVE (IN– = –IN+) DD VDDLBYP OVDD LVDS/CMOS 5V 5V ALL CHANNELS PD 0.50 IN0+ S/H LTC2341-16 IN0– 0.25 0V 0V SDO0 SDO1 16-BIT 0 MUX SCKO BIPOLAR UNIPOLAR SAR ADC SCKI –0.25 5V 5V SDI INL ERROR (LSB) CS IN1+ S/H –0.50 BUSY IN1– SAMPLE 0V 0V CNV CLOCK –0.75 REFBUF REFIN GND 234116 TA01a DIFFERENTIAL INPUTS IN+/IN– WITH –1.00 TWO SIMULTANEOUS WIDE INPUT COMMON MODE RANGE 47µF 0.1µF –32768 –16384 0 16384 32768 SAMPLING CHANNELS OUTPUT CODE 234116 TA01b 234116f For more information www.linear.com/LTC2341-16 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Configuration Tables Functional Block Diagram Timing Diagram Applications Information Board Layout Package Description Typical Application Related Parts
