Datasheet LTC2365, LTC2366 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 3Msps, 12-Bit Serial Sampling ADCs in TSOT |
| Pages / Page | 24 / 10 — block DiagraM. tiMing DiagraMs. Figure 1. SDO Into Hi-Z State After SCK … |
| File Format / Size | PDF / 381 Kb |
| Document Language | English |
block DiagraM. tiMing DiagraMs. Figure 1. SDO Into Hi-Z State After SCK Falling Edge
Model Line for this Datasheet
- LTC2365CS6#PBF LTC2365CS6#TRMPBF LTC2365CS6#TRMPBF LTC2365CS6#TRPBF LTC2365CS6#TRPBF LTC2365CTS8#PBF LTC2365CTS8#TRMPBF LTC2365CTS8#TRMPBF LTC2365CTS8#TRPBF LTC2365CTS8#TRPBF LTC2365HS6#PBF LTC2365HS6#TRMPBF LTC2365HS6#TRMPBF LTC2365HS6#TRPBF LTC2365HS6#TRPBF LTC2365HTS8#PBF LTC2365HTS8#TRMPBF LTC2365HTS8#TRMPBF LTC2365HTS8#TRPBF LTC2365HTS8#TRPBF LTC2365IS6#PBF LTC2365IS6#TRMPBF LTC2365IS6#TRMPBF LTC2365IS6#TRPBF LTC2365IS6#TRPBF LTC2365ITS8#PBF LTC2365ITS8#TRMPBF LTC2365ITS8#TRMPBF LTC2365ITS8#TRPBF LTC2365ITS8#TRPBF
- LTC2366CS6#PBF LTC2366CS6#TRMPBF LTC2366CS6#TRMPBF LTC2366CS6#TRPBF LTC2366CS6#TRPBF LTC2366CTS8#PBF LTC2366CTS8#TRMPBF LTC2366CTS8#TRMPBF LTC2366CTS8#TRPBF LTC2366CTS8#TRPBF LTC2366HS6#PBF LTC2366HS6#TRMPBF LTC2366HS6#TRMPBF LTC2366HS6#TRPBF LTC2366HS6#TRPBF LTC2366HTS8#PBF LTC2366HTS8#TRMPBF LTC2366HTS8#TRMPBF LTC2366HTS8#TRPBF LTC2366HTS8#TRPBF LTC2366IS6#PBF LTC2366IS6#TRMPBF LTC2366IS6#TRMPBF LTC2366IS6#TRPBF LTC2366IS6#TRPBF LTC2366ITS8#PBF LTC2366ITS8#TRMPBF LTC2366ITS8#TRMPBF LTC2366ITS8#TRPBF LTC2366ITS8#TRPBF
Text Version of Document
LTC2365/LTC2366

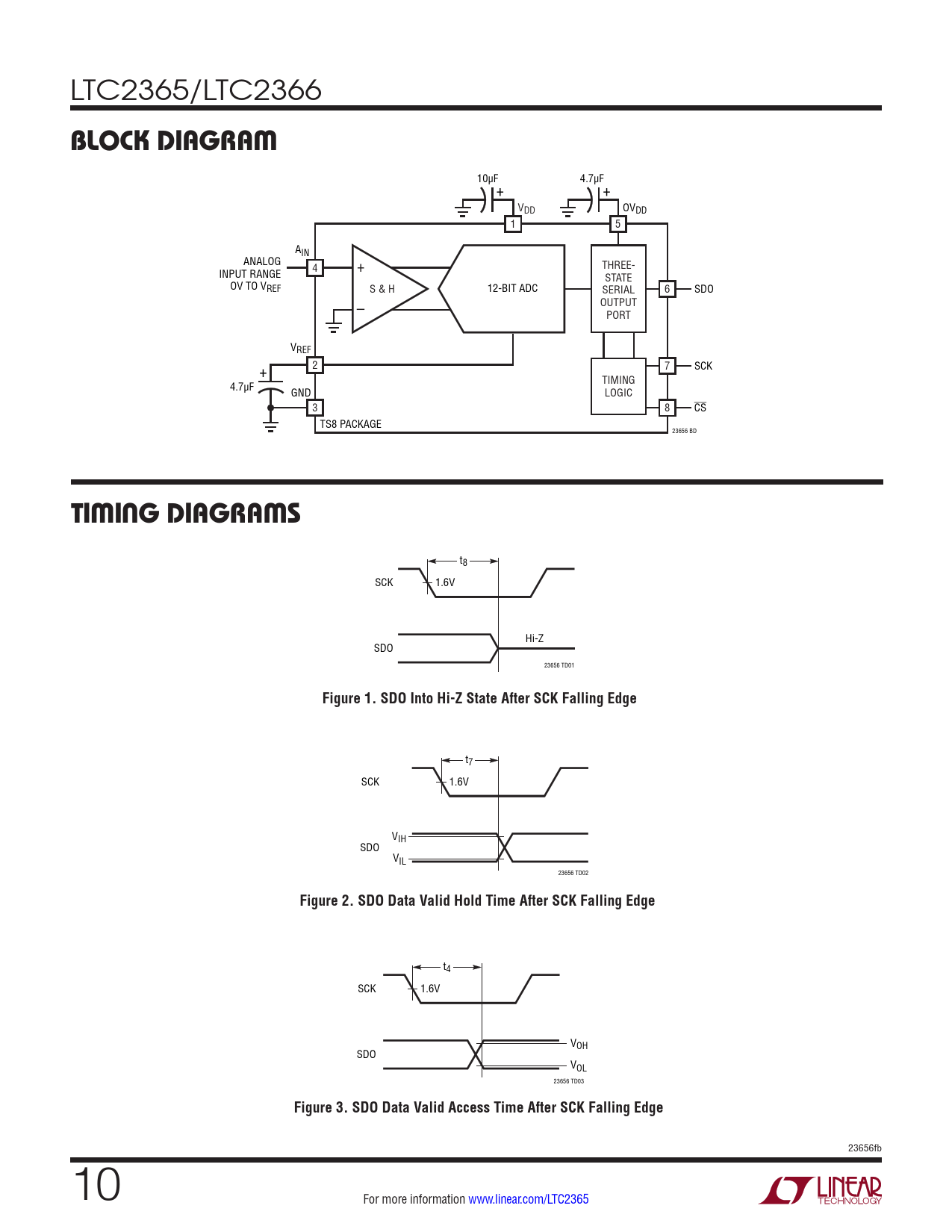

block DiagraM
10µF 4.7µF + + VDD OVDD 1 5 AIN ANALOG 4 + THREE- INPUT RANGE STATE OV TO VREF S & H 12-BIT ADC SERIAL 6 SDO – OUTPUT PORT VREF 2 7 SCK + TIMING 4.7µF GND LOGIC 3 8 CS TS8 PACKAGE 23656 BD
tiMing DiagraMs
t8 SCK 1.6V Hi-Z SDO 23656 TD01
Figure 1. SDO Into Hi-Z State After SCK Falling Edge
t7 SCK 1.6V VIH SDO VIL 23656 TD02
Figure 2. SDO Data Valid Hold Time After SCK Falling Edge
t4 SCK 1.6V VOH SDO VOL 23656 TD03
Figure 3. SDO Data Valid Access Time After SCK Falling Edge
23656fb 10 For more information www.linear.com/LTC2365 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Inputs Dynamic Accuracy Digital Inputs and Digital Outputs Power Requirement Timing Characteristics Typical Performance Characteristics Pin Functions Block Diagram Timing Diagrams Applications Information Package Description Revision History Related Parts
