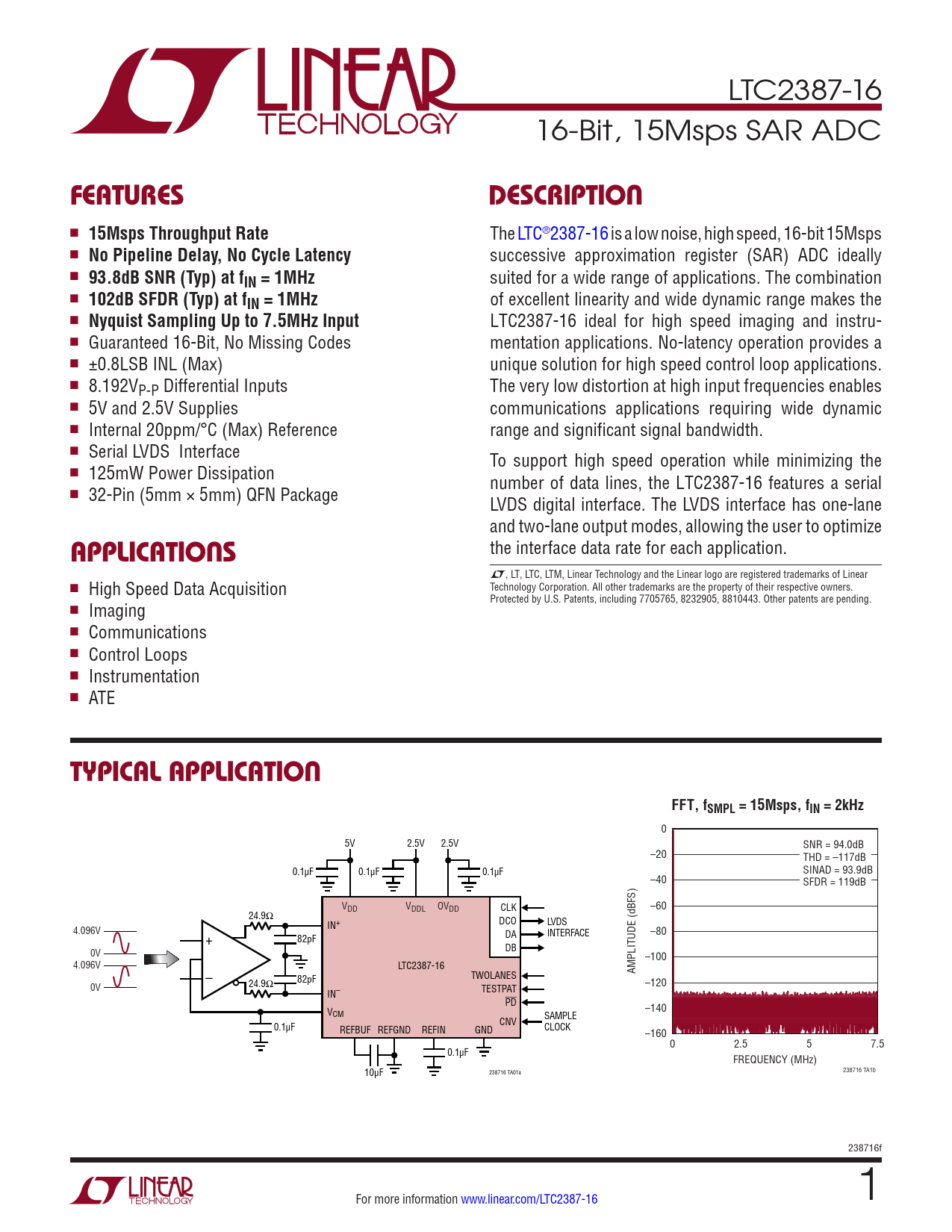

LTC2387-16 16-Bit, 15Msps SAR ADC
FEATURES DESCRIPTION
n
15Msps Throughput Rate
The LTC®2387-16 is a low noise, high speed, 16-bit 15Msps n
No Pipeline Delay, No Cycle Latency
successive approximation register (SAR) ADC ideally n
93.8dB SNR (Typ) at fIN = 1MHz
suited for a wide range of applications. The combination n
102dB SFDR (Typ) at fIN = 1MHz
of excellent linearity and wide dynamic range makes the n
Nyquist Sampling Up to 7.5MHz Input
LTC2387-16 ideal for high speed imaging and instru- n Guaranteed 16-Bit, No Missing Codes mentation applications. No-latency operation provides a n ±0.8LSB INL (Max) unique solution for high speed control loop applications. n 8.192VP-P Differential Inputs The very low distortion at high input frequencies enables n 5V and 2.5V Supplies communications applications requiring wide dynamic n Internal 20ppm/°C (Max) Reference range and significant signal bandwidth. n Serial LVDS Interface To support high speed operation while minimizing the n 125mW Power Dissipation number of data lines, the LTC2387-16 features a serial n 32-Pin (5mm × 5mm) QFN Package LVDS digital interface. The LVDS interface has one-lane and two-lane output modes, allowing the user to optimize the interface data rate for each application.
APPLICATIONS
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear n High Speed Data Acquisition Technology Corporation. All other trademarks are the property of their respective owners. Protected by U.S. Patents, including 7705765, 8232905, 8810443. Other patents are pending. n Imaging n Communications n Control Loops n Instrumentation n ATE
TYPICAL APPLICATION FFT, fSMPL = 15Msps, fIN = 2kHz IN
0 5V 2.5V 2.5V SNR = 94.0dB –20 THD = –117dB 0.1µF 0.1µF 0.1µF SINAD = 93.9dB –40 SFDR = 119dB VDD VDDL OVDD CLK –60 24.9Ω DCO LVDS IN+ 4.096V DA INTERFACE + –80 82pF DB 0V –100 4.096V LTC2387-16 – AMPLITUDE (dBFS) 24.9Ω 82pF TWOLANES 0V –120 IN– TESTPAT PD V –140 CM SAMPLE 0.1µF CNV CLOCK REFBUF REFGND REFIN GND –160 0 2.5 5 7.5 0.1µF FREQUENCY (MHz) 10µF 238716 TA01a 238716 TA1b 238716f For more information www.linear.com/LTC2387-16 1 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Reference Buffer Characteristics Digital Inputs and Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagram Applications Information Package Description Typical Application Related Parts
