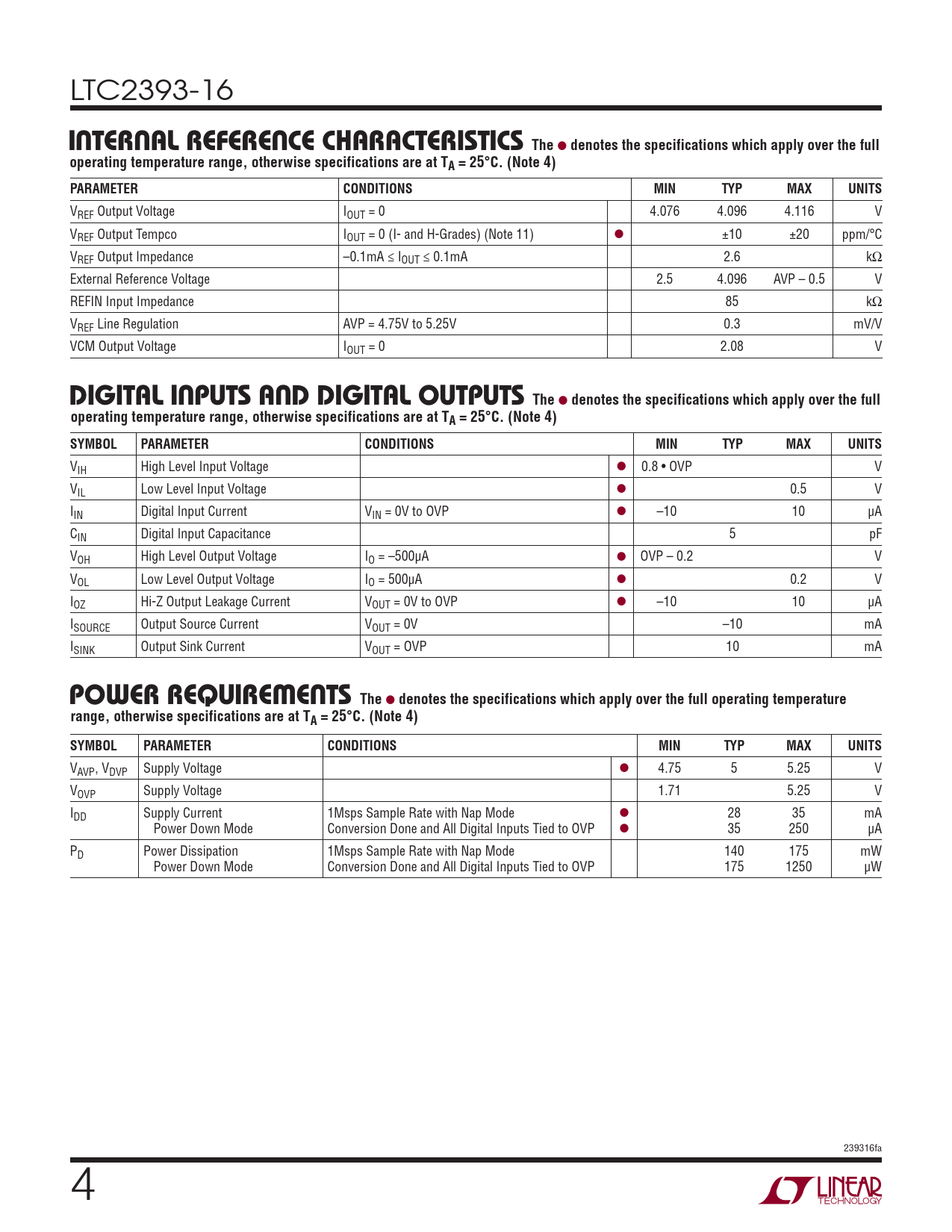

LTC2393-16
INTERNAL REFERENCE CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 4) PARAMETER CONDITIONS MIN TYP MAX UNITS
VREF Output Voltage IOUT = 0 4.076 4.096 4.116 V VREF Output Tempco IOUT = 0 (I- and H-Grades) (Note 11) l ±10 ±20 ppm/°C VREF Output Impedance –0.1mA ≤ IOUT ≤ 0.1mA 2.6 kΩ External Reference Voltage 2.5 4.096 AVP – 0.5 V REFIN Input Impedance 85 kΩ VREF Line Regulation AVP = 4.75V to 5.25V 0.3 mV/V VCM Output Voltage IOUT = 0 2.08 V
