Datasheet LTC2450 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Easy-to-Use, Ultra-Tiny 16-Bit ΔΣ ADC |
| Pages / Page | 20 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Conversion Mode Power Supply. … |
| File Format / Size | PDF / 207 Kb |
| Document Language | English |

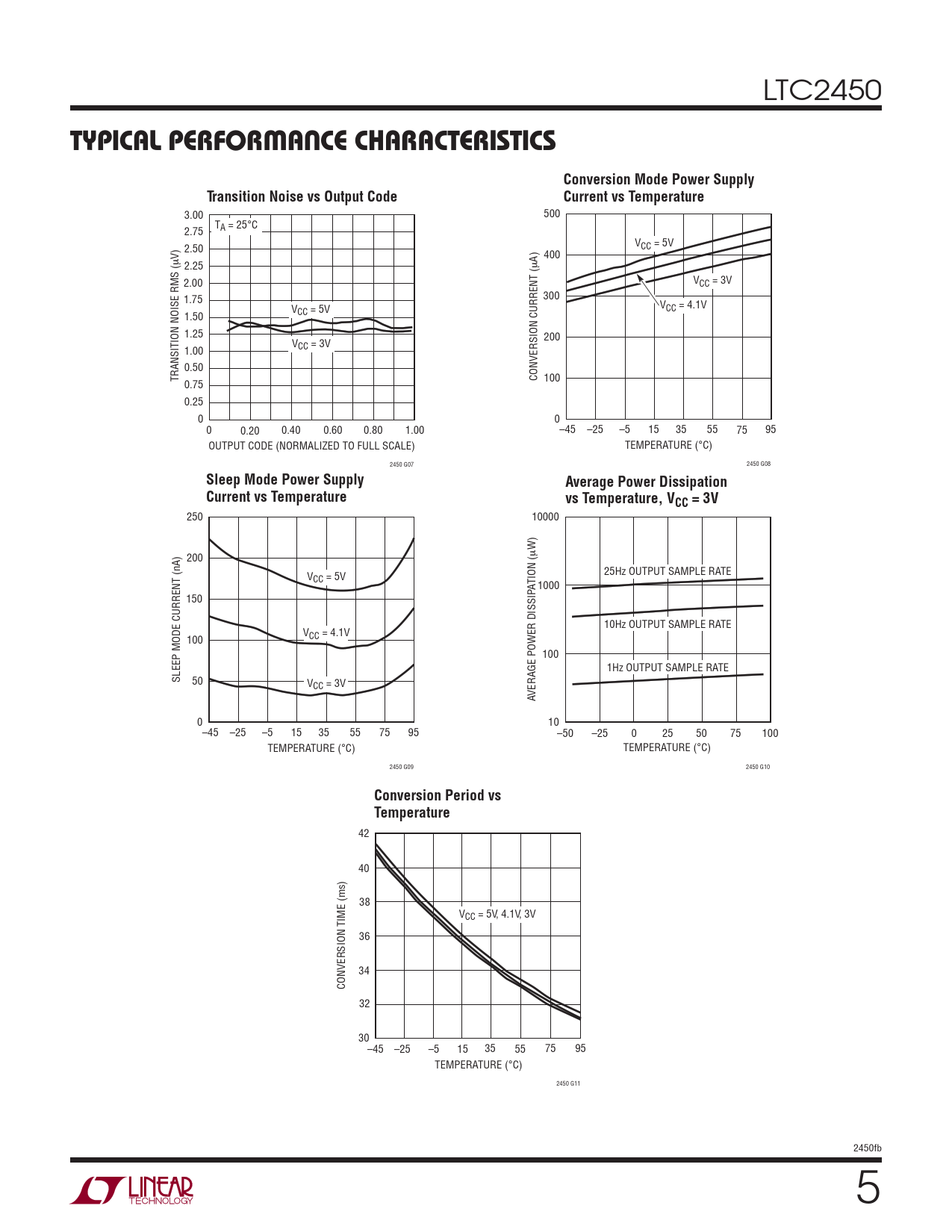

TYPICAL PERFORMANCE CHARACTERISTICS. Conversion Mode Power Supply. Transition Noise vs Output Code. Current vs Temperature
Model Line for this Datasheet
Text Version of Document
LTC2450
TYPICAL PERFORMANCE CHARACTERISTICS Conversion Mode Power Supply Transition Noise vs Output Code Current vs Temperature
3.00 500 T 2.75 A = 25°C V 2.50 CC = 5V V) 400 μ A) 2.25 μ 2.00 VCC = 3V 1.75 300 V V CC = 5V CC = 4.1V 1.50 1.25 200 V 1.00 CC = 3V 0.50 TRANSITION NOISE RMS ( CONVERSION CURRENT ( 100 0.75 0.25 0 0 0 0.20 0.40 0.60 0.80 1.00 –45 –25 –5 15 35 55 75 95 OUTPUT CODE (NORMALIZED TO FULL SCALE) TEMPERATURE (°C) 2450 G07 2450 G08
Sleep Mode Power Supply Average Power Dissipation Current vs Temperature vs Temperature, VCC = 3V
250 10000 W) 200 μ V 25Hz OUTPUT SAMPLE RATE CC = 5V TION ( A 1000 150 10Hz OUTPUT SAMPLE RATE V 100 CC = 4.1V 100 1Hz OUTPUT SAMPLE RATE SLEEP MODE CURRENT (nA) 50 VCC = 3V VERAGE POWER DISSIP A 0 10 –45 –25 –5 15 35 55 75 95 –50 –25 0 25 50 75 100 TEMPERATURE (°C) TEMPERATURE (°C) 2450 G09 2450 G10
Conversion Period vs Temperature
42 40 38 VCC = 5V, 4.1V, 3V 36 34 CONVERSION TIME (ms) 32 30 –45 –25 –5 15 35 55 75 95 TEMPERATURE (°C) 2450 G11 2450fb 5
