ANALOG INPUTS AND REFERENCES The. denotes the specifications which apply over the full
Model Line for this Datasheet
- LTC2453CDDB#PBF LTC2453CDDB#TRMPBF LTC2453CDDB#TRMPBF LTC2453CDDB#TRPBF LTC2453CDDB#TRPBF LTC2453CTS8#PBF LTC2453CTS8#TRMPBF LTC2453CTS8#TRMPBF LTC2453CTS8#TRPBF LTC2453CTS8#TRPBF LTC2453IDDB#PBF LTC2453IDDB#TRMPBF LTC2453IDDB#TRMPBF LTC2453IDDB#TRPBF LTC2453IDDB#TRPBF LTC2453ITS8#PBF LTC2453ITS8#TRMPBF LTC2453ITS8#TRMPBF LTC2453ITS8#TRPBF LTC2453ITS8#TRPBF
Text Version of Document
LTC2453
ANALOG INPUTS AND REFERENCES The
l

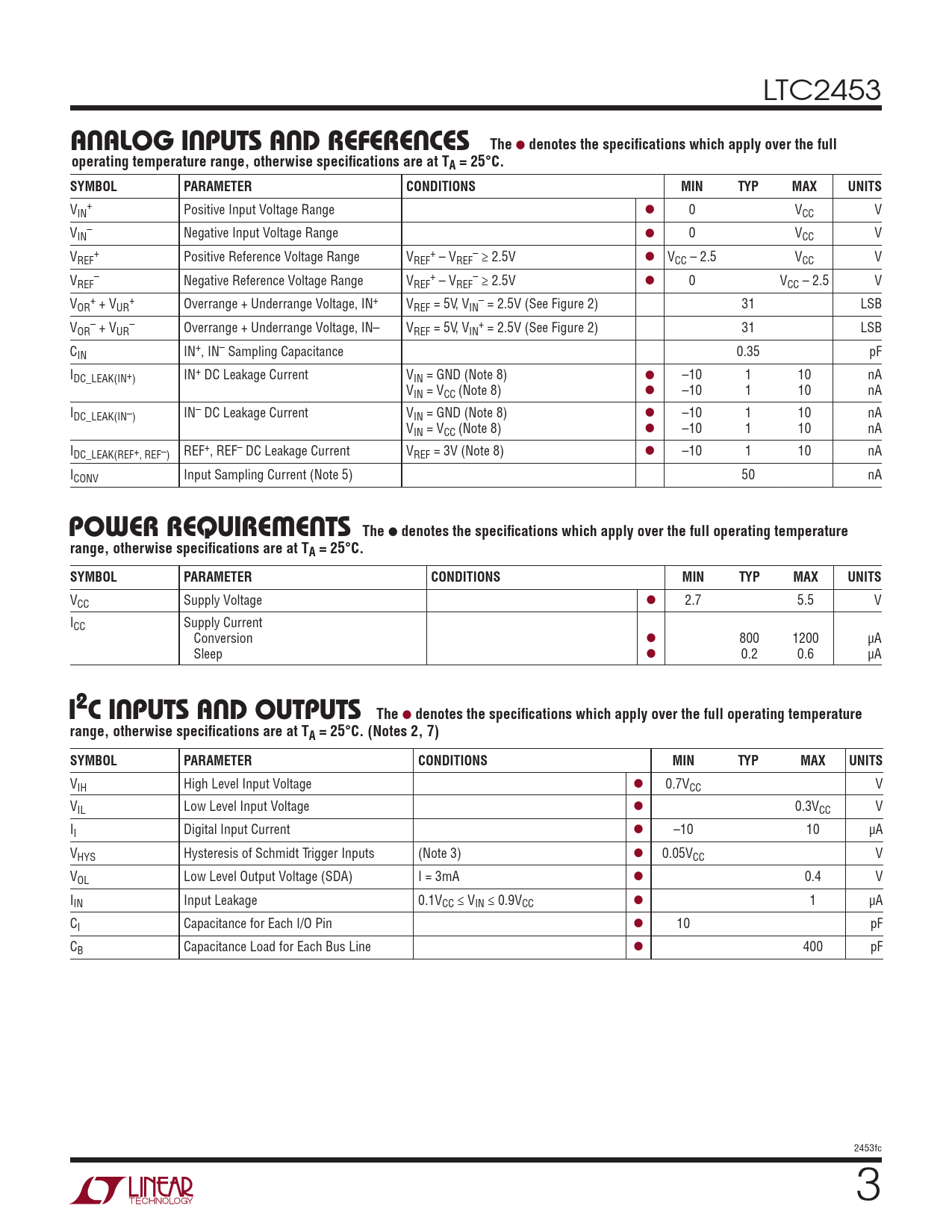

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
V + IN Positive Input Voltage Range l 0 VCC V V – IN Negative Input Voltage Range l 0 VCC V V + + – REF Positive Reference Voltage Range VREF – VREF ≥ 2.5V l VCC – 2.5 VCC V V – + – REF Negative Reference Voltage Range VREF – VREF ≥ 2.5V l 0 VCC – 2.5 V V + + – OR + VUR Overrange + Underrange Voltage, IN+ VREF = 5V, VIN = 2.5V (See Figure 2) 31 LSB V – – + OR + VUR Overrange + Underrange Voltage, IN– VREF = 5V, VIN = 2.5V (See Figure 2) 31 LSB CIN IN+, IN– Sampling Capacitance 0.35 pF IDC_LEAK(IN+) IN+ DC Leakage Current VIN = GND (Note 8) l –10 1 10 nA VIN = VCC (Note 8) l –10 1 10 nA IDC_LEAK(IN–) IN– DC Leakage Current VIN = GND (Note 8) l –10 1 10 nA VIN = VCC (Note 8) l –10 1 10 nA IDC_LEAK(REF+, REF–) REF+, REF– DC Leakage Current VREF = 3V (Note 8) l –10 1 10 nA ICONV Input Sampling Current (Note 5) 50 nA
POWER REQUIREMENTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VCC Supply Voltage l 2.7 5.5 V ICC Supply Current Conversion l 800 1200 µA Sleep l 0.2 0.6 µA
I2C INPUTS AND OUTPUTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Notes 2, 7) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
