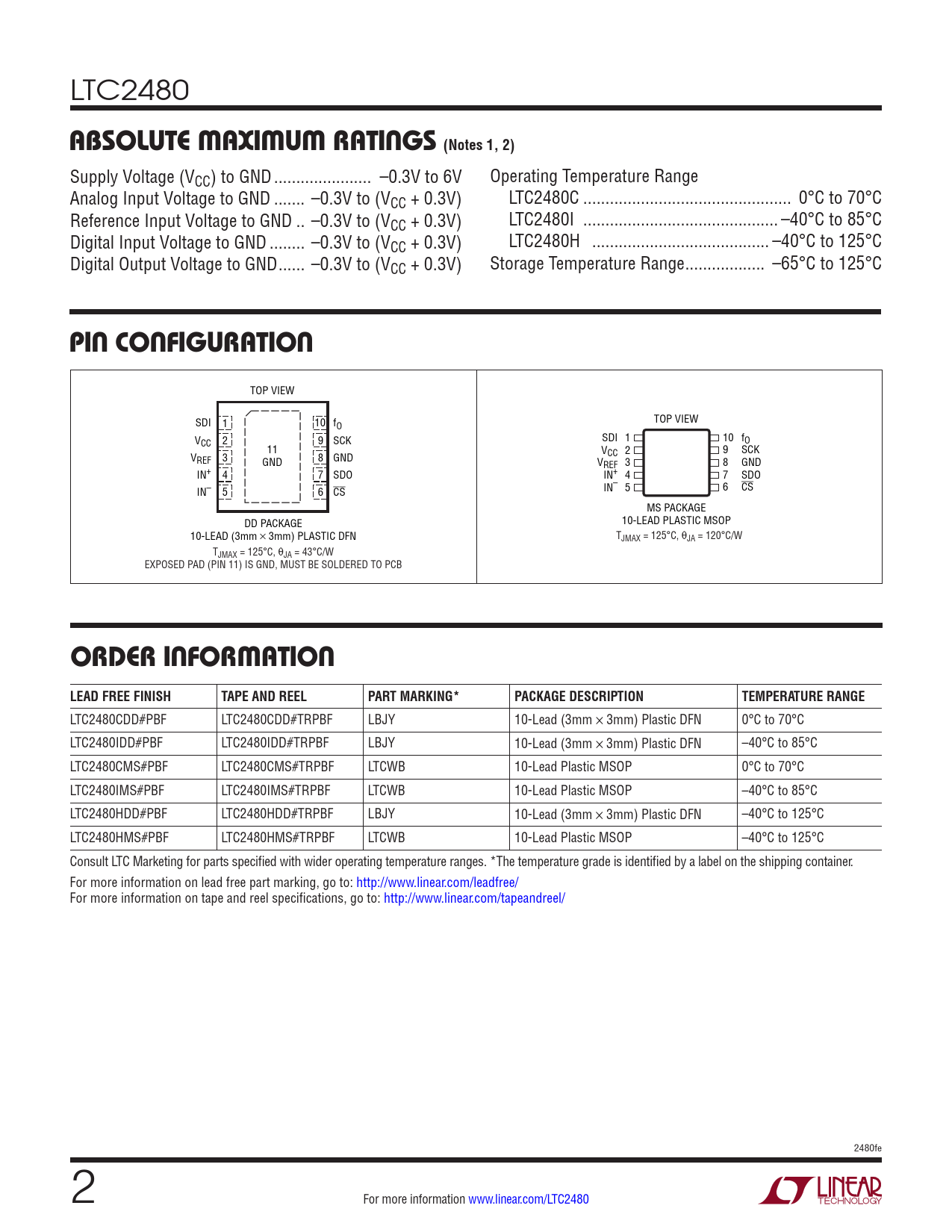

LTC2480
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VCC) to GND .. –0.3V to 6V Operating Temperature Range Analog Input Voltage to GND ... –0.3V to (VCC + 0.3V) LTC2480C ... 0°C to 70°C Reference Input Voltage to GND .. –0.3V to (VCC + 0.3V) LTC2480I .. –40°C to 85°C Digital Input Voltage to GND .. –0.3V to (VCC + 0.3V) LTC2480H .. –40°C to 125°C Digital Output Voltage to GND .. –0.3V to (VCC + 0.3V) Storage Temperature Range .. –65°C to 125°C
PIN CONFIGURATION
TOP VIEW SDI 1 10 f TOP VIEW O VCC 2 9 SCK SDI 1 10 fO 11 VCC 2 9 SCK VREF 3 GND 8 GND VREF 3 8 GND IN+ 4 7 SDO IN+ 4 7 SDO IN– 5 6 CS IN– 5 6 CS MS PACKAGE DD PACKAGE 10-LEAD PLASTIC MSOP 10-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 120°C/W TJMAX = 125°C, θJA = 43°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2480CDD#PBF LTC2480CDD#TRPBF LBJY 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC2480IDD#PBF LTC2480IDD#TRPBF LBJY 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC2480CMS#PBF LTC2480CMS#TRPBF LTCWB 10-Lead Plastic MSOP 0°C to 70°C LTC2480IMS#PBF LTC2480IMS#TRPBF LTCWB 10-Lead Plastic MSOP –40°C to 85°C LTC2480HDD#PBF LTC2480HDD#TRPBF LBJY 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC2480HMS#PBF LTC2480HMS#TRPBF LTCWB 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 2480fe 2 For more information www.linear.com/LTC2480 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics (Normal Speed) Electrical Characteristics (2X Speed) Converter Characteristics Analog Input and Reference Analog Inputs and Digital Outputs Power Requirements Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Test Circuits Timing Diagrams Applications Information Package Description Revision History Typical Application Related Parts
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
Supply Voltage (VCC) to GND .. –0.3V to 6V Operating Temperature Range Analog Input Voltage to GND ... –0.3V to (VCC + 0.3V) LTC2480C ... 0°C to 70°C Reference Input Voltage to GND .. –0.3V to (VCC + 0.3V) LTC2480I .. –40°C to 85°C Digital Input Voltage to GND .. –0.3V to (VCC + 0.3V) LTC2480H .. –40°C to 125°C Digital Output Voltage to GND .. –0.3V to (VCC + 0.3V) Storage Temperature Range .. –65°C to 125°C
PIN CONFIGURATION
TOP VIEW SDI 1 10 f TOP VIEW O VCC 2 9 SCK SDI 1 10 fO 11 VCC 2 9 SCK VREF 3 GND 8 GND VREF 3 8 GND IN+ 4 7 SDO IN+ 4 7 SDO IN– 5 6 CS IN– 5 6 CS MS PACKAGE DD PACKAGE 10-LEAD PLASTIC MSOP 10-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 120°C/W TJMAX = 125°C, θJA = 43°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
