Datasheet LTC2480 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 16-Bit ΔΣ ADC with Easy Drive Input Current Cancellation |
| Pages / Page | 42 / 10 — TYPICAL PERFORMANCE CHARACTERISTICS. Integral Nonlinearity (2x Speed. … |
| File Format / Size | PDF / 690 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Integral Nonlinearity (2x Speed. Noise Histogram. Mode; VCC = 5V, VREF = 2.5V)
Model Line for this Datasheet
- LTC2480CDD#PBF LTC2480CDD#PBF LTC2480CDD#TRPBF LTC2480CDD#TRPBF LTC2480CMS#PBF LTC2480CMS#PBF LTC2480CMS#TRPBF LTC2480CMS#TRPBF LTC2480HDD#PBF LTC2480HDD#PBF LTC2480HDD#TRPBF LTC2480HDD#TRPBF LTC2480HMS#PBF LTC2480HMS#PBF LTC2480HMS#TRPBF LTC2480HMS#TRPBF LTC2480IDD#PBF LTC2480IDD#PBF LTC2480IDD#TRPBF LTC2480IDD#TRPBF LTC2480IMS#PBF LTC2480IMS#PBF LTC2480IMS#TRPBF LTC2480IMS#TRPBF
Text Version of Document
LTC2480

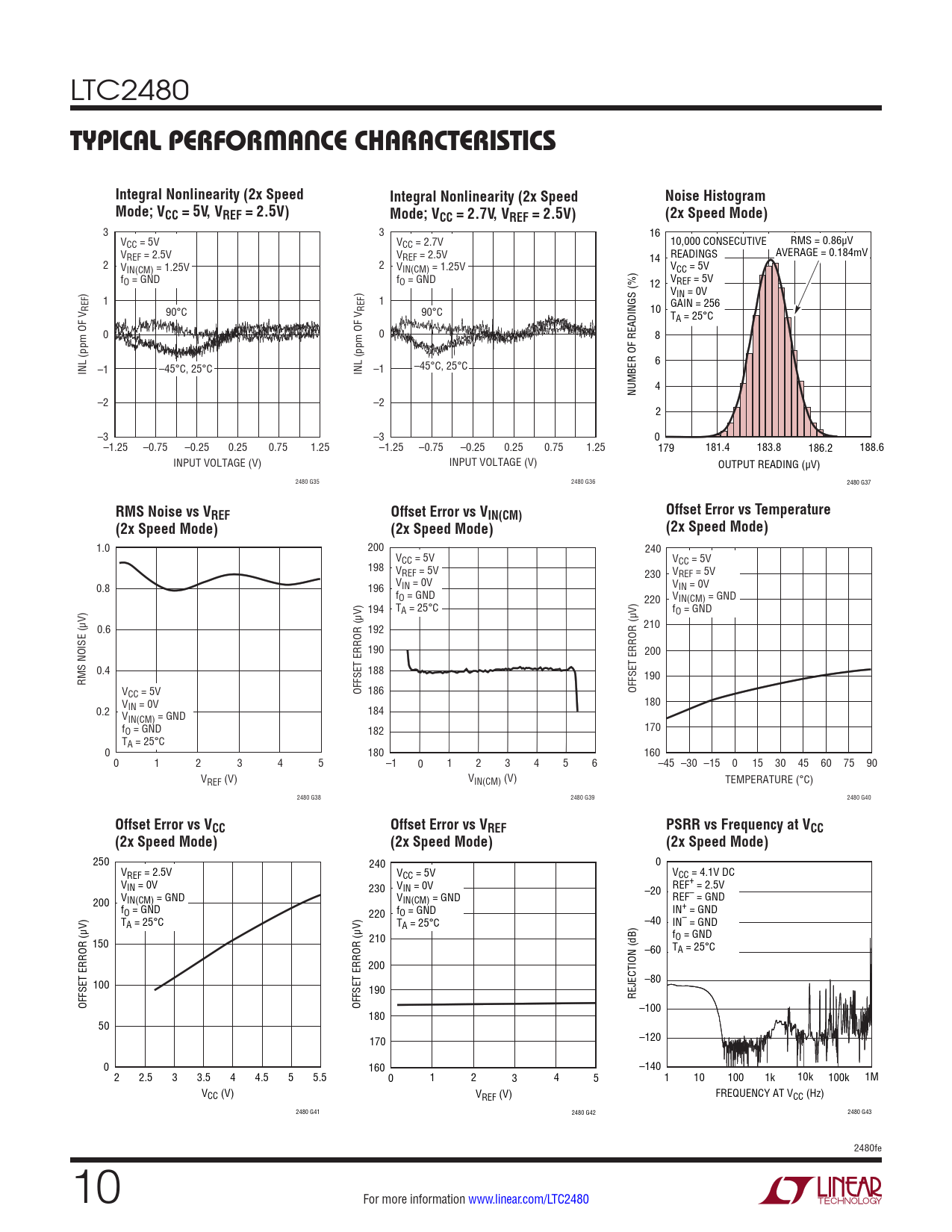

TYPICAL PERFORMANCE CHARACTERISTICS Integral Nonlinearity (2x Speed Integral Nonlinearity (2x Speed Noise Histogram Mode; VCC = 5V, VREF = 2.5V) Mode; VCC = 2.7V, VREF = 2.5V) (2x Speed Mode)
