| Manufacturer | Analog Devices |
| Description | 14-Bit Direct Conversion Receiver Subsystem |
| Pages / Page | 28 / 4 — Dyna. Mic accuracy The. denotes the specifications which apply over the … |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |

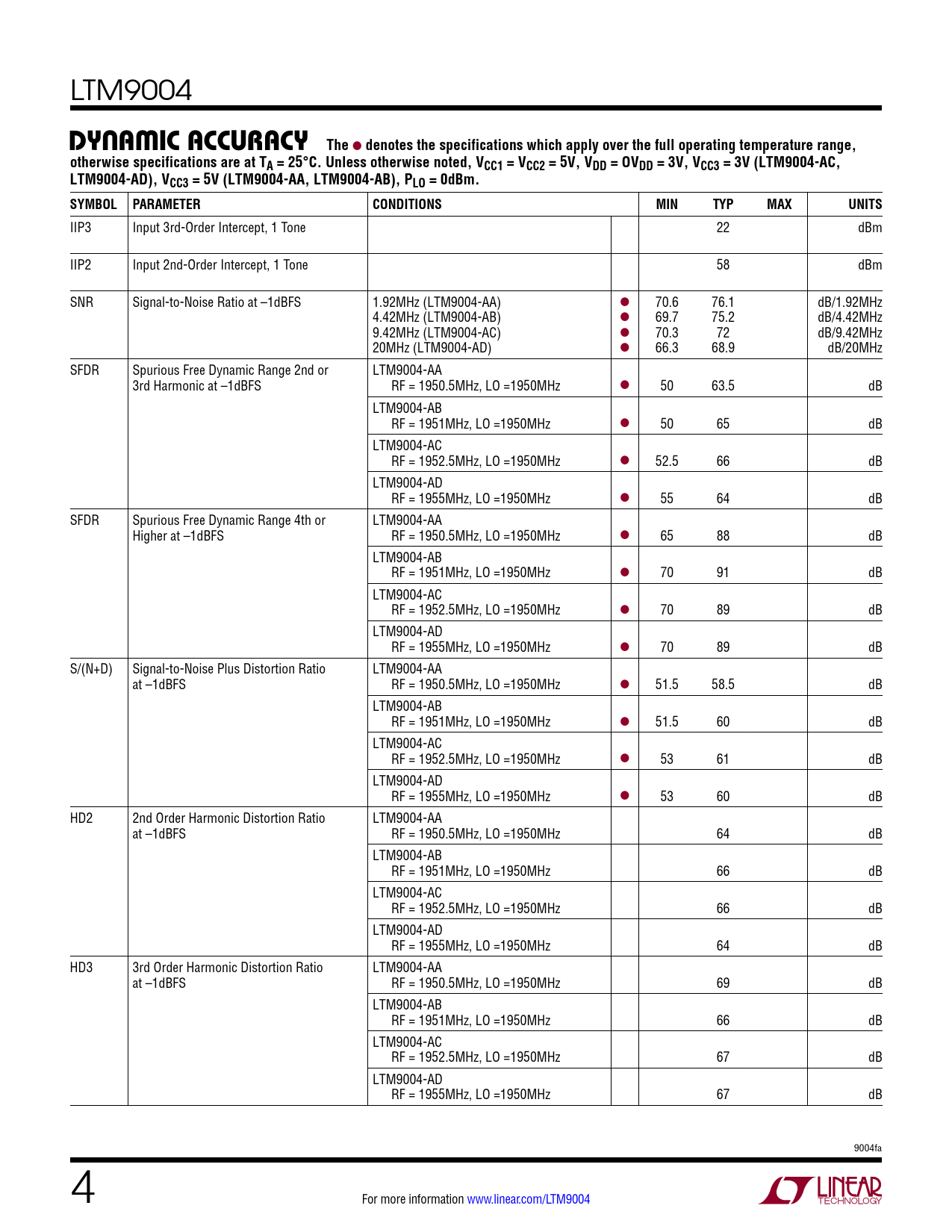

Dyna. Mic accuracy The. denotes the specifications which apply over the full operating temperature range,
Model Line for this Datasheet
Text Version of Document
LTM9004
Dyna Mic accuracy The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Unless otherwise noted, VCC1 = VCC2 = 5V, VDD = OVDD = 3V, VCC3 = 3V (LTM9004-AC, LTM9004-AD), VCC3 = 5V (LTM9004-AA, LTM9004-AB), PLO = 0dBm. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IIP3 Input 3rd-Order Intercept, 1 Tone 22 dBm IIP2 Input 2nd-Order Intercept, 1 Tone 58 dBm SNR Signal-to-Noise Ratio at –1dBFS 1.92MHz (LTM9004-AA) l 70.6 76.1 dB/1.92MHz 4.42MHz (LTM9004-AB) l 69.7 75.2 dB/4.42MHz 9.42MHz (LTM9004-AC) l 70.3 72 dB/9.42MHz 20MHz (LTM9004-AD) l 66.3 68.9 dB/20MHz SFDR Spurious Free Dynamic Range 2nd or LTM9004-AA 3rd Harmonic at –1dBFS RF = 1950.5MHz, LO =1950MHz l 50 63.5 dB LTM9004-AB RF = 1951MHz, LO =1950MHz l 50 65 dB LTM9004-AC RF = 1952.5MHz, LO =1950MHz l 52.5 66 dB LTM9004-AD RF = 1955MHz, LO =1950MHz l 55 64 dB SFDR Spurious Free Dynamic Range 4th or LTM9004-AA Higher at –1dBFS RF = 1950.5MHz, LO =1950MHz l 65 88 dB LTM9004-AB RF = 1951MHz, LO =1950MHz l 70 91 dB LTM9004-AC RF = 1952.5MHz, LO =1950MHz l 70 89 dB LTM9004-AD RF = 1955MHz, LO =1950MHz l 70 89 dB S/(N+D) Signal-to-Noise Plus Distortion Ratio LTM9004-AA at –1dBFS RF = 1950.5MHz, LO =1950MHz l 51.5 58.5 dB LTM9004-AB RF = 1951MHz, LO =1950MHz l 51.5 60 dB LTM9004-AC RF = 1952.5MHz, LO =1950MHz l 53 61 dB LTM9004-AD RF = 1955MHz, LO =1950MHz l 53 60 dB HD2 2nd Order Harmonic Distortion Ratio LTM9004-AA at –1dBFS RF = 1950.5MHz, LO =1950MHz 64 dB LTM9004-AB RF = 1951MHz, LO =1950MHz 66 dB LTM9004-AC RF = 1952.5MHz, LO =1950MHz 66 dB LTM9004-AD RF = 1955MHz, LO =1950MHz 64 dB HD3 3rd Order Harmonic Distortion Ratio LTM9004-AA at –1dBFS RF = 1950.5MHz, LO =1950MHz 69 dB LTM9004-AB RF = 1951MHz, LO =1950MHz 66 dB LTM9004-AC RF = 1952.5MHz, LO =1950MHz 67 dB LTM9004-AD RF = 1955MHz, LO =1950MHz 67 dB 9004fa 4 For more information www.linear.com/LTM9004 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Dynamic Accuracy Converter Characteristics Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
