Datasheet LTM9013 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 300MHz Wideband Receiver |
| Pages / Page | 38 / 3 — orDer inForMaTion LEAD FREE FINISH. TRAY. PART MARKING*. PACKAGE … |
| File Format / Size | PDF / 978 Kb |
| Document Language | English |

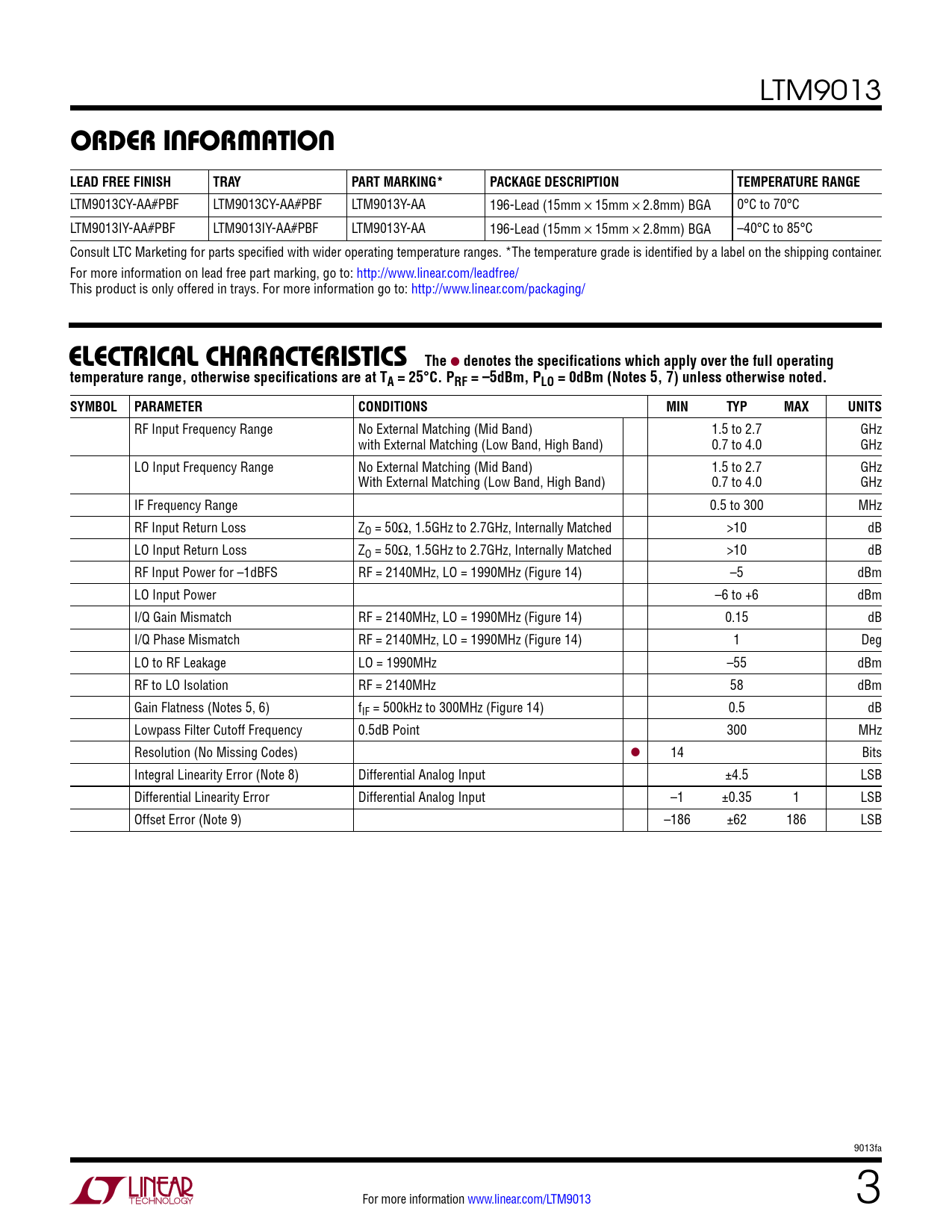

orDer inForMaTion LEAD FREE FINISH. TRAY. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE. elecTrical characTerisTics. The
Model Line for this Datasheet
Text Version of Document
LTM9013
orDer inForMaTion LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTM9013CY-AA#PBF LTM9013CY-AA#PBF LTM9013Y-AA 196-Lead (15mm × 15mm × 2.8mm) BGA 0°C to 70°C LTM9013IY-AA#PBF LTM9013IY-AA#PBF LTM9013Y-AA 196-Lead (15mm × 15mm × 2.8mm) BGA –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PRF = –5dBm, PLO = 0dBm (Notes 5, 7) unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
RF Input Frequency Range No External Matching (Mid Band) 1.5 to 2.7 GHz with External Matching (Low Band, High Band) 0.7 to 4.0 GHz LO Input Frequency Range No External Matching (Mid Band) 1.5 to 2.7 GHz With External Matching (Low Band, High Band) 0.7 to 4.0 GHz IF Frequency Range 0.5 to 300 MHz RF Input Return Loss ZO = 50Ω, 1.5GHz to 2.7GHz, Internally Matched >10 dB LO Input Return Loss ZO = 50Ω, 1.5GHz to 2.7GHz, Internally Matched >10 dB RF Input Power for –1dBFS RF = 2140MHz, LO = 1990MHz (Figure 14) –5 dBm LO Input Power –6 to +6 dBm I/Q Gain Mismatch RF = 2140MHz, LO = 1990MHz (Figure 14) 0.15 dB I/Q Phase Mismatch RF = 2140MHz, LO = 1990MHz (Figure 14) 1 Deg LO to RF Leakage LO = 1990MHz –55 dBm RF to LO Isolation RF = 2140MHz 58 dBm Gain Flatness (Notes 5, 6) fIF = 500kHz to 300MHz (Figure 14) 0.5 dB Lowpass Filter Cutoff Frequency 0.5dB Point 300 MHz Resolution (No Missing Codes) l 14 Bits Integral Linearity Error (Note 8) Differential Analog Input ±4.5 LSB Differential Linearity Error Differential Analog Input –1 ±0.35 1 LSB Offset Error (Note 9) –186 ±62 186 LSB 9013fa For more information www.linear.com/LTM9013 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Dynamic Accuracy Analog Inputs and Outputs Digital Inputs and Outputs Power Requirements Timing Characteristics Typical Performance Characteristics Pin Functions Block Diagram Timing Diagrams Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
