Datasheet LT1086 (Analog Devices) - 14
| Manufacturer | Analog Devices |
| Description | 1.5A Low Dropout Positive Regulators Adjustable and Fixed 2.85V, 3.3V, 3.6V, 5V, 12V |
| Pages / Page | 16 / 14 — TYPICAL APPLICATIONS. Battery Backed Up Regulated Supply. Improving … |
| File Format / Size | PDF / 227 Kb |
| Document Language | English |

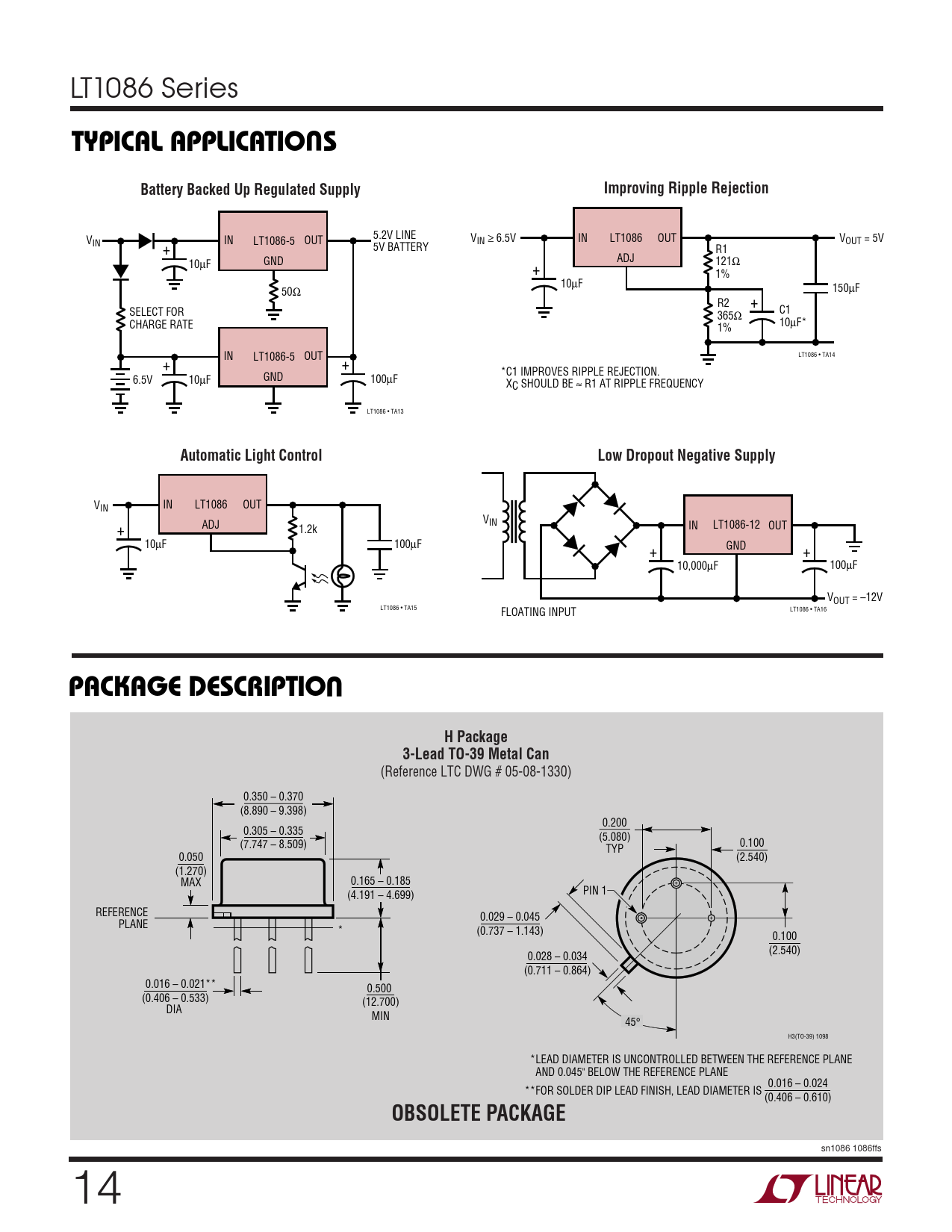

TYPICAL APPLICATIONS. Battery Backed Up Regulated Supply. Improving Ripple Rejection. Automatic Light Control
Model Line for this Datasheet
- LT1086CM#PBF LT1086CM#PBF LT1086CM#TRPBF LT1086CM#TRPBF LT1086CM-3.3#PBF LT1086CM-3.3#PBF LT1086CM-3.3#TRPBF LT1086CM-3.3#TRPBF LT1086CM-3.6#PBF LT1086CM-3.6#PBF LT1086CM-3.6#TRPBF LT1086CM-3.6#TRPBF LT1086CT#PBF LT1086CT#PBF LT1086CT-12#PBF LT1086CT-12#PBF LT1086CT-2.85#PBF LT1086CT-2.85#PBF LT1086CT-3.3#PBF LT1086CT-3.3#PBF LT1086CT-3.6#PBF LT1086CT-3.6#PBF LT1086CT-5#PBF LT1086CT-5#PBF LT1086IM#PBF LT1086IM#PBF LT1086IM#TRPBF LT1086IM#TRPBF LT1086IM-3.3#PBF LT1086IM-3.3#PBF LT1086IM-3.3#TRPBF LT1086IM-3.3#TRPBF LT1086IT#36PBF LT1086IT#36PBF LT1086IT#PBF LT1086IT#PBF LT1086IT-12#PBF LT1086IT-12#PBF LT1086IT-3.3#PBF LT1086IT-3.3#PBF LT1086IT-5#PBF LT1086IT-5#PBF
Text Version of Document
LT1086 Series
U TYPICAL APPLICATIONS Battery Backed Up Regulated Supply Improving Ripple Rejection
5.2V LINE V V IN OUT IN IN LT1086-5 OUT IN ≥ 6.5V LT1086 VOUT = 5V 5V BATTERY + R1 ADJ 10µF GND 121Ω + 1% 10µF 50Ω 150µF R2 + SELECT FOR C1 365Ω CHARGE RATE 10µF* 1% IN LT1086-5 OUT LT1086 • TA14 + + *C1 IMPROVES RIPPLE REJECTION. 6.5V 10µF GND 100µF XC SHOULD BE ≈ R1 AT RIPPLE FREQUENCY LT1086 • TA13
Automatic Light Control Low Dropout Negative Supply
V IN IN LT1086 OUT V ADJ IN 1.2k + IN LT1086-12 OUT 10µF 100µF GND + + 10,000µF 100µF VOUT = –12V LT1086 • TA15 LT1086 • TA16 FLOATING INPUT
