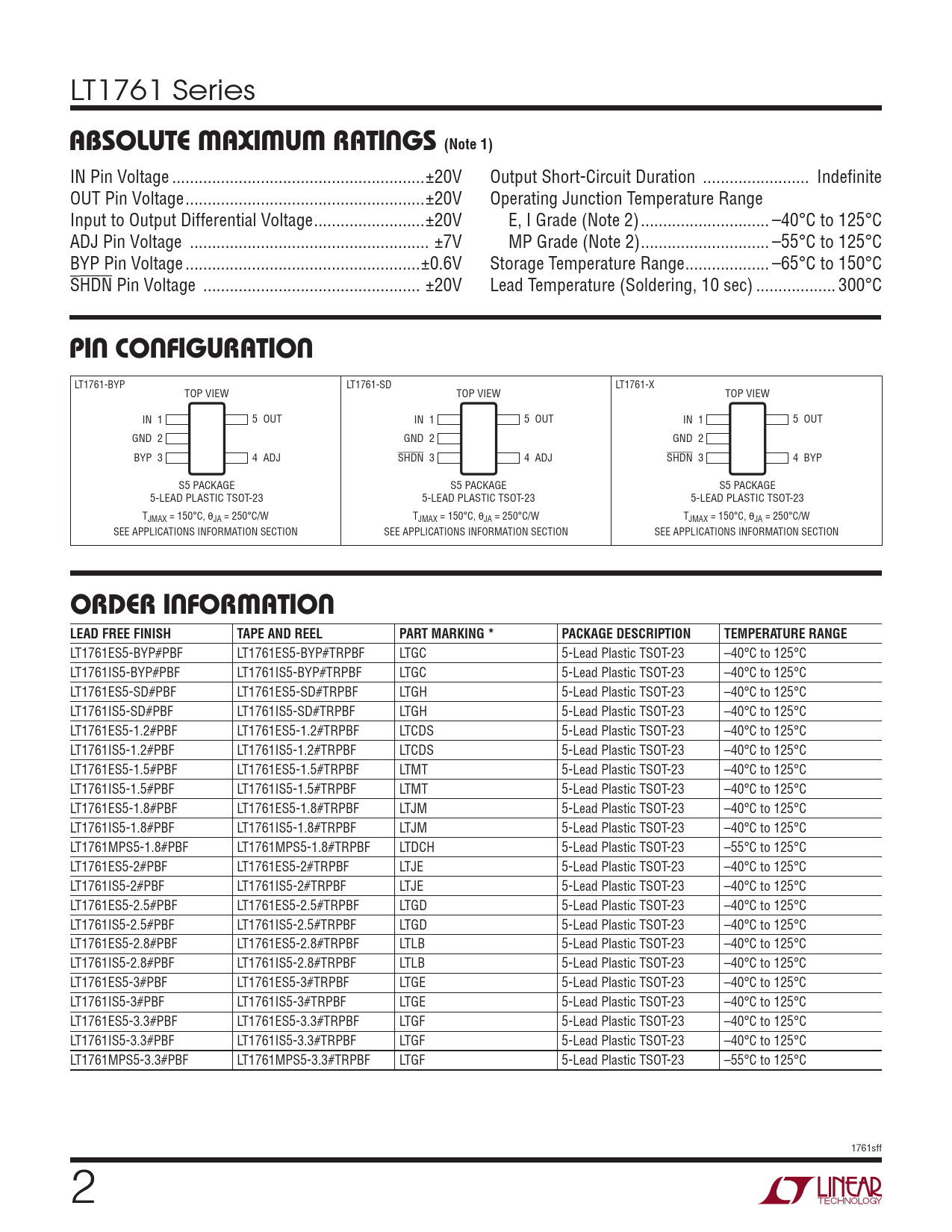

LT1761 Series
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage ...±20V Output Short-Circuit Duration .. Indefi nite OUT Pin Voltage ..±20V Operating Junction Temperature Range Input to Output Differential Voltage ...±20V E, I Grade (Note 2) ... –40°C to 125°C ADJ Pin Voltage .. ±7V MP Grade (Note 2) ... –55°C to 125°C BYP Pin Voltage ...±0.6V Storage Temperature Range ... –65°C to 150°C SHDN Pin Voltage ... ±20V Lead Temperature (Soldering, 10 sec) .. 300°C
PIN CONFIGURATION
LT1761-BYP LT1761-SD LT1761-X TOP VIEW TOP VIEW TOP VIEW IN 1 5 OUT IN 1 5 OUT IN 1 5 OUT GND 2 GND 2 GND 2 BYP 3 4 ADJ SHDN 3 4 ADJ SHDN 3 4 BYP S5 PACKAGE S5 PACKAGE S5 PACKAGE 5-LEAD PLASTIC TSOT-23 5-LEAD PLASTIC TSOT-23 5-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 250°C/W SEE APPLICATIONS INFORMATION SECTION SEE APPLICATIONS INFORMATION SECTION SEE APPLICATIONS INFORMATION SECTION
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING * PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1761ES5-BYP#PBF LT1761ES5-BYP#TRPBF LTGC 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-BYP#PBF LT1761IS5-BYP#TRPBF LTGC 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761ES5-SD#PBF LT1761ES5-SD#TRPBF LTGH 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-SD#PBF LT1761IS5-SD#TRPBF LTGH 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761ES5-1.2#PBF LT1761ES5-1.2#TRPBF LTCDS 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-1.2#PBF LT1761IS5-1.2#TRPBF LTCDS 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761ES5-1.5#PBF LT1761ES5-1.5#TRPBF LTMT 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-1.5#PBF LT1761IS5-1.5#TRPBF LTMT 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761ES5-1.8#PBF LT1761ES5-1.8#TRPBF LTJM 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-1.8#PBF LT1761IS5-1.8#TRPBF LTJM 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761MPS5-1.8#PBF LT1761MPS5-1.8#TRPBF LTDCH 5-Lead Plastic TSOT-23 –55°C to 125°C LT1761ES5-2#PBF LT1761ES5-2#TRPBF LTJE 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-2#PBF LT1761IS5-2#TRPBF LTJE 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761ES5-2.5#PBF LT1761ES5-2.5#TRPBF LTGD 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-2.5#PBF LT1761IS5-2.5#TRPBF LTGD 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761ES5-2.8#PBF LT1761ES5-2.8#TRPBF LTLB 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-2.8#PBF LT1761IS5-2.8#TRPBF LTLB 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761ES5-3#PBF LT1761ES5-3#TRPBF LTGE 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-3#PBF LT1761IS5-3#TRPBF LTGE 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761ES5-3.3#PBF LT1761ES5-3.3#TRPBF LTGF 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761IS5-3.3#PBF LT1761IS5-3.3#TRPBF LTGF 5-Lead Plastic TSOT-23 –40°C to 125°C LT1761MPS5-3.3#PBF LT1761MPS5-3.3#TRPBF LTGF 5-Lead Plastic TSOT-23 –55°C to 125°C 1761sff 2 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS APPLICATIONS INFORMATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
