Datasheet LT3008 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 3μA IQ, 20mA, 45V Low Dropout Linear Regulators |
| Pages / Page | 20 / 4 — ORDER INFORMATION. LEAD BASED FINISH. TAPE AND REEL. PART MARKING*. … |
| File Format / Size | PDF / 242 Kb |
| Document Language | English |
ORDER INFORMATION. LEAD BASED FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE
Model Line for this Datasheet
- LT3008EDC#PBF LT3008EDC#TRMPBF LT3008EDC#TRPBF LT3008EDC-1.2#PBF LT3008EDC-1.2#TRMPBF LT3008EDC-1.2#TRPBF LT3008EDC-1.5#PBF LT3008EDC-1.5#TRMPBF LT3008EDC-1.5#TRPBF LT3008EDC-1.8#PBF LT3008EDC-1.8#TRMPBF LT3008EDC-1.8#TRPBF LT3008EDC-2.5#PBF LT3008EDC-2.5#TRMPBF LT3008EDC-2.5#TRPBF LT3008EDC-3.3#PBF LT3008EDC-3.3#TRMPBF LT3008EDC-3.3#TRPBF LT3008EDC-5#PBF LT3008EDC-5#TRMPBF LT3008EDC-5#TRPBF LT3008ETS8#PBF LT3008ETS8#TRMPBF LT3008ETS8#TRPBF LT3008ETS8-1.2#PBF LT3008ETS8-1.2#TRMPBF LT3008ETS8-1.2#TRPBF LT3008ETS8-1.5#PBF LT3008ETS8-1.5#TRMPBF LT3008ETS8-1.5#TRPBF LT3008ETS8-1.8#PBF LT3008ETS8-1.8#TRMPBF LT3008ETS8-1.8#TRPBF LT3008ETS8-2.5#PBF LT3008ETS8-2.5#TRMPBF LT3008ETS8-2.5#TRPBF LT3008ETS8-3.3#PBF LT3008ETS8-3.3#TRMPBF LT3008ETS8-3.3#TRPBF LT3008ETS8-5#PBF LT3008ETS8-5#TRMPBF LT3008ETS8-5#TRPBF LT3008IDC#PBF LT3008IDC#TRMPBF LT3008IDC#TRPBF LT3008IDC-1.2#PBF LT3008IDC-1.2#TRMPBF LT3008IDC-1.2#TRPBF LT3008IDC-1.5#PBF LT3008IDC-1.5#TRMPBF LT3008IDC-1.5#TRPBF LT3008IDC-1.8#PBF LT3008IDC-1.8#TRMPBF LT3008IDC-1.8#TRPBF LT3008IDC-2.5#PBF LT3008IDC-2.5#TRMPBF LT3008IDC-2.5#TRPBF LT3008IDC-3.3#PBF LT3008IDC-3.3#TRMPBF LT3008IDC-3.3#TRPBF LT3008IDC-5#PBF LT3008IDC-5#TRMPBF LT3008IDC-5#TRPBF LT3008ITS8#PBF LT3008ITS8#TRMPBF LT3008ITS8#TRPBF LT3008ITS8-1.2#PBF LT3008ITS8-1.2#TRMPBF LT3008ITS8-1.2#TRPBF LT3008ITS8-1.5#PBF LT3008ITS8-1.5#TRMPBF LT3008ITS8-1.5#TRPBF LT3008ITS8-1.8#PBF LT3008ITS8-1.8#TRMPBF LT3008ITS8-1.8#TRPBF LT3008ITS8-2.5#PBF LT3008ITS8-2.5#TRMPBF LT3008ITS8-2.5#TRPBF LT3008ITS8-3.3#PBF LT3008ITS8-3.3#TRMPBF LT3008ITS8-3.3#TRPBF LT3008ITS8-5#PBF LT3008ITS8-5#TRMPBF LT3008ITS8-5#TRPBF LT3008MPTS8 LT3008MPTS8#PBF LT3008MPTS8#TR LT3008MPTS8#TRM LT3008MPTS8#TRMPBF LT3008MPTS8#TRPBF LT3008MPTS8-1.2#PBF LT3008MPTS8-1.2#TRMPBF LT3008MPTS8-1.2#TRPBF LT3008MPTS8-1.5#PBF LT3008MPTS8-1.5#TRMPBF LT3008MPTS8-1.5#TRPBF LT3008MPTS8-1.8#PBF LT3008MPTS8-1.8#TRMPBF LT3008MPTS8-1.8#TRPBF LT3008MPTS8-2.5#PBF LT3008MPTS8-2.5#TRMPBF LT3008MPTS8-2.5#TRPBF LT3008MPTS8-3.3 LT3008MPTS8-3.3#PBF LT3008MPTS8-3.3#TRM LT3008MPTS8-3.3#TRMPBF LT3008MPTS8-3.3#TRPBF LT3008MPTS8-5#PBF LT3008MPTS8-5#TRMPBF LT3008MPTS8-5#TRPBF
- LT3008EDC#TRMPBF LT3008EDC#TRPBF LT3008EDC-1.2#TRMPBF LT3008EDC-1.2#TRPBF LT3008EDC-1.5#TRMPBF LT3008EDC-1.5#TRPBF LT3008EDC-1.8#TRMPBF LT3008EDC-1.8#TRPBF LT3008EDC-2.5#TRMPBF LT3008EDC-2.5#TRPBF LT3008EDC-3.3#TRMPBF LT3008EDC-3.3#TRPBF LT3008EDC-5#TRMPBF LT3008EDC-5#TRPBF LT3008ETS8#TRMPBF LT3008ETS8#TRPBF LT3008ETS8-1.2#TRMPBF LT3008ETS8-1.2#TRPBF LT3008ETS8-1.5#TRMPBF LT3008ETS8-1.5#TRPBF LT3008ETS8-1.8#TRMPBF LT3008ETS8-1.8#TRPBF LT3008ETS8-2.5#TRMPBF LT3008ETS8-2.5#TRPBF LT3008ETS8-3.3#TRMPBF LT3008ETS8-3.3#TRPBF LT3008ETS8-5#TRMPBF LT3008ETS8-5#TRPBF LT3008IDC#TRMPBF LT3008IDC#TRPBF LT3008IDC-1.2#TRMPBF LT3008IDC-1.2#TRPBF LT3008IDC-1.5#TRMPBF LT3008IDC-1.5#TRPBF LT3008IDC-1.8#TRMPBF LT3008IDC-1.8#TRPBF LT3008IDC-2.5#TRMPBF LT3008IDC-2.5#TRPBF LT3008IDC-3.3#TRMPBF LT3008IDC-3.3#TRPBF LT3008IDC-5#TRMPBF LT3008IDC-5#TRPBF LT3008ITS8#TRMPBF LT3008ITS8#TRPBF LT3008ITS8-1.2#TRMPBF LT3008ITS8-1.2#TRPBF LT3008ITS8-1.5#TRMPBF LT3008ITS8-1.5#TRPBF LT3008ITS8-1.8#TRMPBF LT3008ITS8-1.8#TRPBF LT3008ITS8-2.5#TRMPBF LT3008ITS8-2.5#TRPBF LT3008ITS8-3.3#TRMPBF LT3008ITS8-3.3#TRPBF LT3008ITS8-5#TRMPBF LT3008ITS8-5#TRPBF LT3008MPTS8#TRMPBF LT3008MPTS8#TRPBF LT3008MPTS8-1.2#TRMPBF LT3008MPTS8-1.2#TRPBF LT3008MPTS8-1.5#TRMPBF LT3008MPTS8-1.5#TRPBF LT3008MPTS8-1.8#TRMPBF LT3008MPTS8-1.8#TRPBF LT3008MPTS8-2.5#TRMPBF LT3008MPTS8-2.5#TRPBF LT3008MPTS8-3.3#TRMPBF LT3008MPTS8-3.3#TRPBF LT3008MPTS8-5#TRMPBF LT3008MPTS8-5#TRPBF
Text Version of Document
LT3008 Series

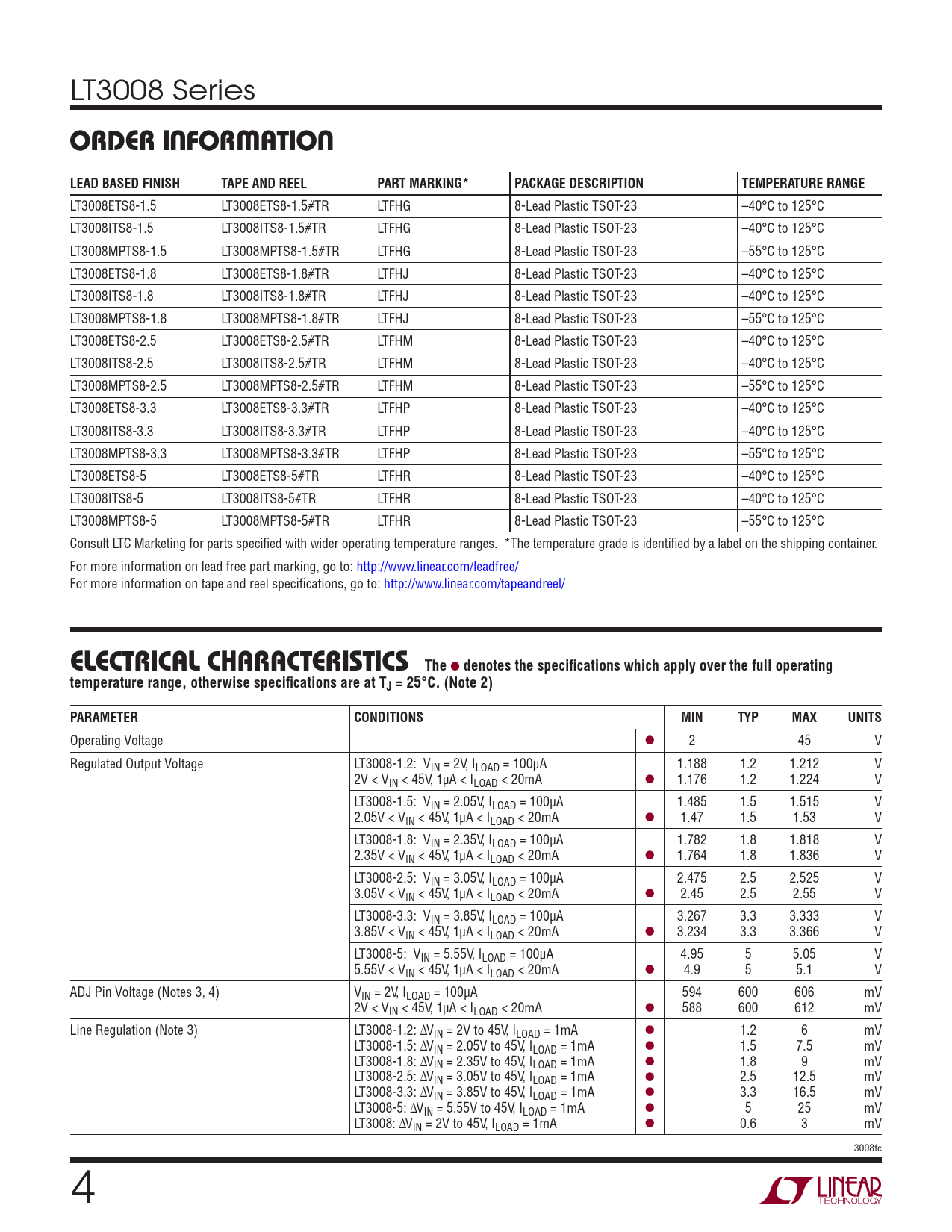

ORDER INFORMATION LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3008ETS8-1.5 LT3008ETS8-1.5#TR LTFHG 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-1.5 LT3008ITS8-1.5#TR LTFHG 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-1.5 LT3008MPTS8-1.5#TR LTFHG 8-Lead Plastic TSOT-23 –55°C to 125°C LT3008ETS8-1.8 LT3008ETS8-1.8#TR LTFHJ 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-1.8 LT3008ITS8-1.8#TR LTFHJ 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-1.8 LT3008MPTS8-1.8#TR LTFHJ 8-Lead Plastic TSOT-23 –55°C to 125°C LT3008ETS8-2.5 LT3008ETS8-2.5#TR LTFHM 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-2.5 LT3008ITS8-2.5#TR LTFHM 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-2.5 LT3008MPTS8-2.5#TR LTFHM 8-Lead Plastic TSOT-23 –55°C to 125°C LT3008ETS8-3.3 LT3008ETS8-3.3#TR LTFHP 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-3.3 LT3008ITS8-3.3#TR LTFHP 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-3.3 LT3008MPTS8-3.3#TR LTFHP 8-Lead Plastic TSOT-23 –55°C to 125°C LT3008ETS8-5 LT3008ETS8-5#TR LTFHR 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-5 LT3008ITS8-5#TR LTFHR 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-5 LT3008MPTS8-5#TR LTFHR 8-Lead Plastic TSOT-23 –55°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TJ = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Operating Voltage l 2 45 V Regulated Output Voltage LT3008-1.2: VIN = 2V, ILOAD = 100μA 1.188 1.2 1.212 V 2V < VIN < 45V, 1μA < ILOAD < 20mA l 1.176 1.2 1.224 V LT3008-1.5: VIN = 2.05V, ILOAD = 100μA 1.485 1.5 1.515 V 2.05V < VIN < 45V, 1μA < ILOAD < 20mA l 1.47 1.5 1.53 V LT3008-1.8: VIN = 2.35V, ILOAD = 100μA 1.782 1.8 1.818 V 2.35V < VIN < 45V, 1μA < ILOAD < 20mA l 1.764 1.8 1.836 V LT3008-2.5: VIN = 3.05V, ILOAD = 100μA 2.475 2.5 2.525 V 3.05V < VIN < 45V, 1μA < ILOAD < 20mA l 2.45 2.5 2.55 V LT3008-3.3: VIN = 3.85V, ILOAD = 100μA 3.267 3.3 3.333 V 3.85V < VIN < 45V, 1μA < ILOAD < 20mA l 3.234 3.3 3.366 V LT3008-5: VIN = 5.55V, ILOAD = 100μA 4.95 5 5.05 V 5.55V < VIN < 45V, 1μA < ILOAD < 20mA l 4.9 5 5.1 V ADJ Pin Voltage (Notes 3, 4) VIN = 2V, ILOAD = 100μA 594 600 606 mV 2V < VIN < 45V, 1μA < ILOAD < 20mA l 588 600 612 mV Line Regulation (Note 3) LT3008-1.2: ΔVIN = 2V to 45V, ILOAD = 1mA l 1.2 6 mV LT3008-1.5: ΔVIN = 2.05V to 45V, ILOAD = 1mA l 1.5 7.5 mV LT3008-1.8: ΔVIN = 2.35V to 45V, ILOAD = 1mA l 1.8 9 mV LT3008-2.5: ΔVIN = 3.05V to 45V, ILOAD = 1mA l 2.5 12.5 mV LT3008-3.3: ΔVIN = 3.85V to 45V, ILOAD = 1mA l 3.3 16.5 mV LT3008-5: ΔVIN = 5.55V to 45V, ILOAD = 1mA l 5 25 mV LT3008: ΔVIN = 2V to 45V, ILOAD = 1mA l 0.6 3 mV 3008fc 4
ORDER INFORMATION LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3008ETS8-1.5 LT3008ETS8-1.5#TR LTFHG 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-1.5 LT3008ITS8-1.5#TR LTFHG 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-1.5 LT3008MPTS8-1.5#TR LTFHG 8-Lead Plastic TSOT-23 –55°C to 125°C LT3008ETS8-1.8 LT3008ETS8-1.8#TR LTFHJ 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-1.8 LT3008ITS8-1.8#TR LTFHJ 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-1.8 LT3008MPTS8-1.8#TR LTFHJ 8-Lead Plastic TSOT-23 –55°C to 125°C LT3008ETS8-2.5 LT3008ETS8-2.5#TR LTFHM 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-2.5 LT3008ITS8-2.5#TR LTFHM 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-2.5 LT3008MPTS8-2.5#TR LTFHM 8-Lead Plastic TSOT-23 –55°C to 125°C LT3008ETS8-3.3 LT3008ETS8-3.3#TR LTFHP 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-3.3 LT3008ITS8-3.3#TR LTFHP 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-3.3 LT3008MPTS8-3.3#TR LTFHP 8-Lead Plastic TSOT-23 –55°C to 125°C LT3008ETS8-5 LT3008ETS8-5#TR LTFHR 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008ITS8-5 LT3008ITS8-5#TR LTFHR 8-Lead Plastic TSOT-23 –40°C to 125°C LT3008MPTS8-5 LT3008MPTS8-5#TR LTFHR 8-Lead Plastic TSOT-23 –55°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TJ = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Operating Voltage l 2 45 V Regulated Output Voltage LT3008-1.2: VIN = 2V, ILOAD = 100μA 1.188 1.2 1.212 V 2V < VIN < 45V, 1μA < ILOAD < 20mA l 1.176 1.2 1.224 V LT3008-1.5: VIN = 2.05V, ILOAD = 100μA 1.485 1.5 1.515 V 2.05V < VIN < 45V, 1μA < ILOAD < 20mA l 1.47 1.5 1.53 V LT3008-1.8: VIN = 2.35V, ILOAD = 100μA 1.782 1.8 1.818 V 2.35V < VIN < 45V, 1μA < ILOAD < 20mA l 1.764 1.8 1.836 V LT3008-2.5: VIN = 3.05V, ILOAD = 100μA 2.475 2.5 2.525 V 3.05V < VIN < 45V, 1μA < ILOAD < 20mA l 2.45 2.5 2.55 V LT3008-3.3: VIN = 3.85V, ILOAD = 100μA 3.267 3.3 3.333 V 3.85V < VIN < 45V, 1μA < ILOAD < 20mA l 3.234 3.3 3.366 V LT3008-5: VIN = 5.55V, ILOAD = 100μA 4.95 5 5.05 V 5.55V < VIN < 45V, 1μA < ILOAD < 20mA l 4.9 5 5.1 V ADJ Pin Voltage (Notes 3, 4) VIN = 2V, ILOAD = 100μA 594 600 606 mV 2V < VIN < 45V, 1μA < ILOAD < 20mA l 588 600 612 mV Line Regulation (Note 3) LT3008-1.2: ΔVIN = 2V to 45V, ILOAD = 1mA l 1.2 6 mV LT3008-1.5: ΔVIN = 2.05V to 45V, ILOAD = 1mA l 1.5 7.5 mV LT3008-1.8: ΔVIN = 2.35V to 45V, ILOAD = 1mA l 1.8 9 mV LT3008-2.5: ΔVIN = 3.05V to 45V, ILOAD = 1mA l 2.5 12.5 mV LT3008-3.3: ΔVIN = 3.85V to 45V, ILOAD = 1mA l 3.3 16.5 mV LT3008-5: ΔVIN = 5.55V to 45V, ILOAD = 1mA l 5 25 mV LT3008: ΔVIN = 2V to 45V, ILOAD = 1mA l 0.6 3 mV 3008fc 4
