Datasheet LT3010, LT3010-5 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 50mA, 3V to 80V Low Dropout Micropower Linear Regulator |
| Pages / Page | 18 / 3 — ELECTRICAL CHARACTERISTICS. (LT3010E, LT3010MP) The. denotes the … |
| File Format / Size | PDF / 415 Kb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS. (LT3010E, LT3010MP) The. denotes the specifications which apply over
Model Line for this Datasheet
- LT3010EMS8E#PBF LT3010EMS8E#PBF LT3010EMS8E#TRPBF LT3010EMS8E#TRPBF LT3010EMS8E-5#PBF LT3010EMS8E-5#TRPBF LT3010HMS8E#PBF LT3010HMS8E#PBF LT3010HMS8E#TRPBF LT3010HMS8E#TRPBF LT3010HMS8E-5#PBF LT3010HMS8E-5#TRPBF LT3010MPMS8E LT3010MPMS8E#PBF LT3010MPMS8E#PBF LT3010MPMS8E#TR LT3010MPMS8E#TRPBF LT3010MPMS8E#TRPBF LT3010MPMS8E-5#PBF LT3010MPMS8E-5#TRPBF
Text Version of Document
LT3010/LT3010-5

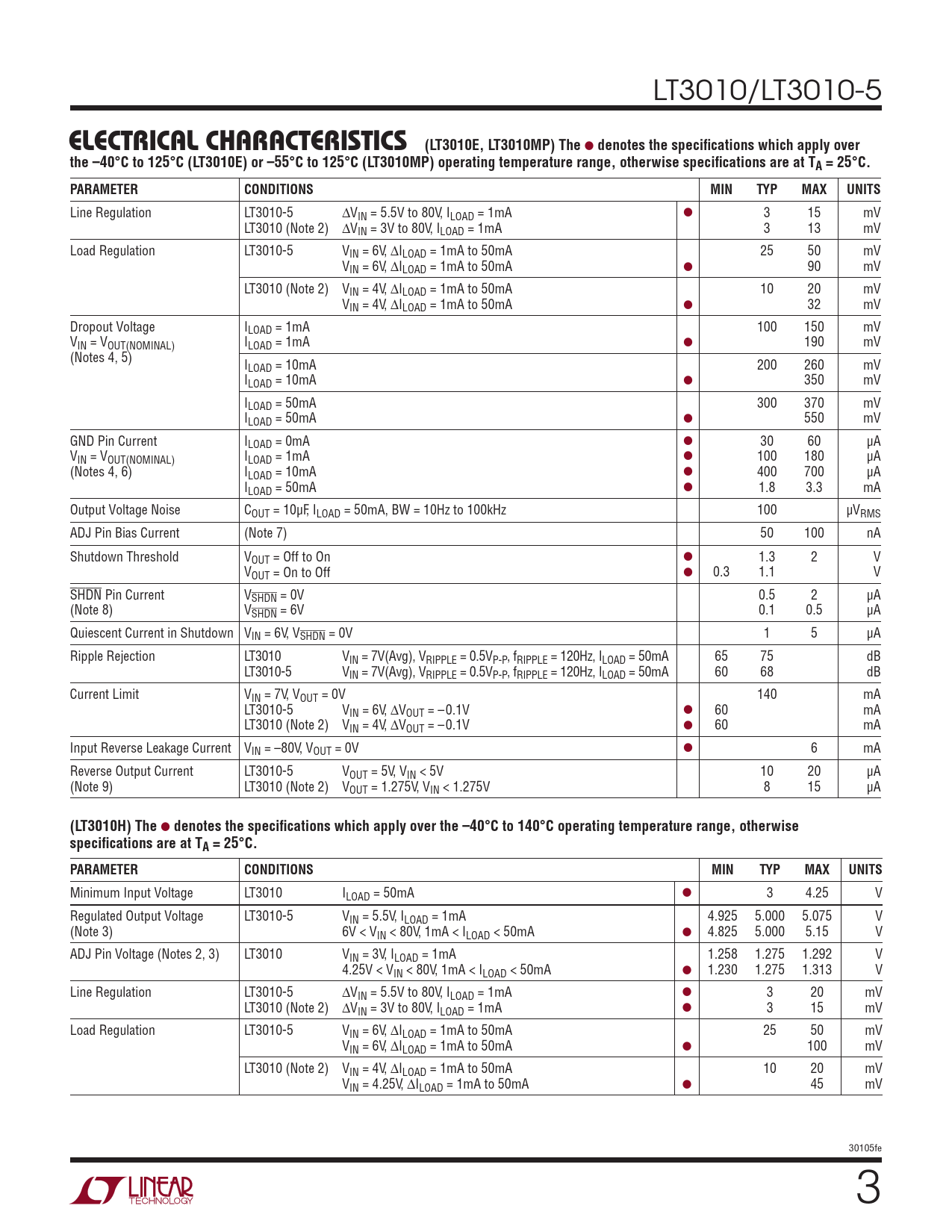

ELECTRICAL CHARACTERISTICS (LT3010E, LT3010MP) The
l
denotes the specifications which apply over the –40°C to 125°C (LT3010E) or –55°C to 125°C (LT3010MP) operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Line Regulation LT3010-5 ΔVIN = 5.5V to 80V, ILOAD = 1mA l 3 15 mV LT3010 (Note 2) ΔVIN = 3V to 80V, ILOAD = 1mA 3 13 mV Load Regulation LT3010-5 VIN = 6V, ΔILOAD = 1mA to 50mA 25 50 mV VIN = 6V, ΔILOAD = 1mA to 50mA l 90 mV LT3010 (Note 2) VIN = 4V, ΔILOAD = 1mA to 50mA 10 20 mV VIN = 4V, ΔILOAD = 1mA to 50mA l 32 mV Dropout Voltage ILOAD = 1mA 100 150 mV VIN = VOUT(NOMINAL) ILOAD = 1mA l 190 mV (Notes 4, 5) ILOAD = 10mA 200 260 mV ILOAD = 10mA l 350 mV ILOAD = 50mA 300 370 mV ILOAD = 50mA l 550 mV GND Pin Current ILOAD = 0mA l 30 60 µA VIN = VOUT(NOMINAL) ILOAD = 1mA l 100 180 µA (Notes 4, 6) ILOAD = 10mA l 400 700 µA ILOAD = 50mA l 1.8 3.3 mA Output Voltage Noise COUT = 10µF, ILOAD = 50mA, BW = 10Hz to 100kHz 100 µVRMS ADJ Pin Bias Current (Note 7) 50 100 nA Shutdown Threshold VOUT = Off to On l 1.3 2 V VOUT = On to Off l 0.3 1.1 V SHDN Pin Current VSHDN = 0V 0.5 2 µA (Note 8) VSHDN = 6V 0.1 0.5 µA Quiescent Current in Shutdown VIN = 6V, VSHDN = 0V 1 5 µA Ripple Rejection LT3010 VIN = 7V(Avg), VRIPPLE = 0.5VP-P, fRIPPLE = 120Hz, ILOAD = 50mA 65 75 dB LT3010-5 VIN = 7V(Avg), VRIPPLE = 0.5VP-P, fRIPPLE = 120Hz, ILOAD = 50mA 60 68 dB Current Limit VIN = 7V, VOUT = 0V 140 mA LT3010-5 VIN = 6V, ΔVOUT = –0.1V l 60 mA LT3010 (Note 2) VIN = 4V, ΔVOUT = –0.1V l 60 mA Input Reverse Leakage Current VIN = –80V, VOUT = 0V l 6 mA Reverse Output Current LT3010-5 VOUT = 5V, VIN < 5V 10 20 µA (Note 9) LT3010 (Note 2) VOUT = 1.275V, VIN < 1.275V 8 15 µA
(LT3010H) The
l
denotes the specifications which apply over the –40°C to 140°C operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage LT3010 ILOAD = 50mA l 3 4.25 V Regulated Output Voltage LT3010-5 VIN = 5.5V, ILOAD = 1mA 4.925 5.000 5.075 V (Note 3) 6V < VIN < 80V, 1mA < ILOAD < 50mA l 4.825 5.000 5.15 V ADJ Pin Voltage (Notes 2, 3) LT3010 VIN = 3V, ILOAD = 1mA 1.258 1.275 1.292 V 4.25V < VIN < 80V, 1mA < ILOAD < 50mA l 1.230 1.275 1.313 V Line Regulation LT3010-5 ΔVIN = 5.5V to 80V, ILOAD = 1mA l 3 20 mV LT3010 (Note 2) ΔVIN = 3V to 80V, ILOAD = 1mA l 3 15 mV Load Regulation LT3010-5 VIN = 6V, ΔILOAD = 1mA to 50mA 25 50 mV VIN = 6V, ΔILOAD = 1mA to 50mA l 100 mV LT3010 (Note 2) VIN = 4V, ΔILOAD = 1mA to 50mA 10 20 mV VIN = 4.25V, ΔILOAD = 1mA to 50mA l 45 mV 30105fe 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
