Datasheet LT3013 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 250mA, 4V to 80V Low Dropout Micropower Linear Regulator with PWRGD |
| Pages / Page | 20 / 7 — TYPICAL PERFORMANCE CHARACTERISTICS. SHDN Pin Threshold. SHDN Pin … |
| File Format / Size | PDF / 233 Kb |
| Document Language | English |

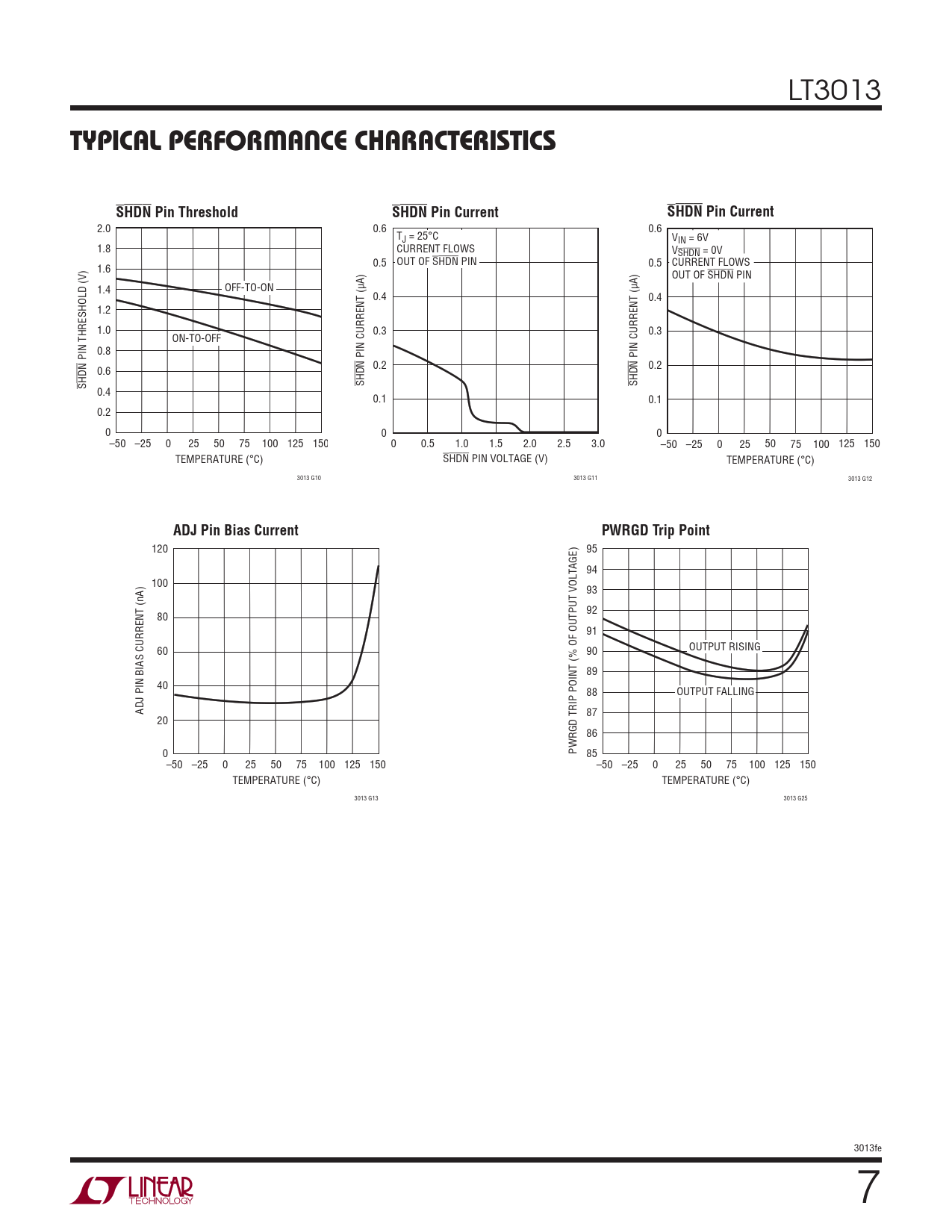

TYPICAL PERFORMANCE CHARACTERISTICS. SHDN Pin Threshold. SHDN Pin Current. ADJ Pin Bias Current. PWRGD Trip Point
Model Line for this Datasheet
Text Version of Document
LT3013
TYPICAL PERFORMANCE CHARACTERISTICS SHDN Pin Threshold SHDN Pin Current SHDN Pin Current
2.0 0.6 0.6 TJ = 25°C VIN = 6V 1.8 CURRENT FLOWS VSHDN = 0V 0.5 OUT OF SHDN PIN 0.5 CURRENT FLOWS 1.6 OUT OF SHDN PIN 1.4 OFF-TO-ON 0.4 0.4 1.2 1.0 0.3 0.3 ON-TO-OFF 0.8 PIN THRESHOLD (V) PIN CURRENT (μA) PIN CURRENT (μA) 0.2 0.2 0.6 SHDN SHDN SHDN 0.4 0.1 0.1 0.2 0 0 0 –50 –25 0 25 50 75 100 125 150 0 0.5 1.0 1.5 2.0 2.5 3.0 –50 –25 0 25 50 75 100 125 150 TEMPERATURE (°C) SHDN PIN VOLTAGE (V) TEMPERATURE (°C) 3013 G10 3013 G11 3013 G12
ADJ Pin Bias Current PWRGD Trip Point
120 95 94 100 93 92 80 91 60 90 OUTPUT RISING 89 40 88 OUTPUT FALLING ADJ PIN BIAS CURRENT (nA) 87 20 86 0 PWRGD TRIP POINT (% OF OUTPUT VOLTAGE) 85 –50 –25 0 25 50 75 100 125 150 –50 –25 0 25 50 75 100 125 150 TEMPERATURE (°C) TEMPERATURE (°C) 3013 G13 3013 G25 3013fe 7
