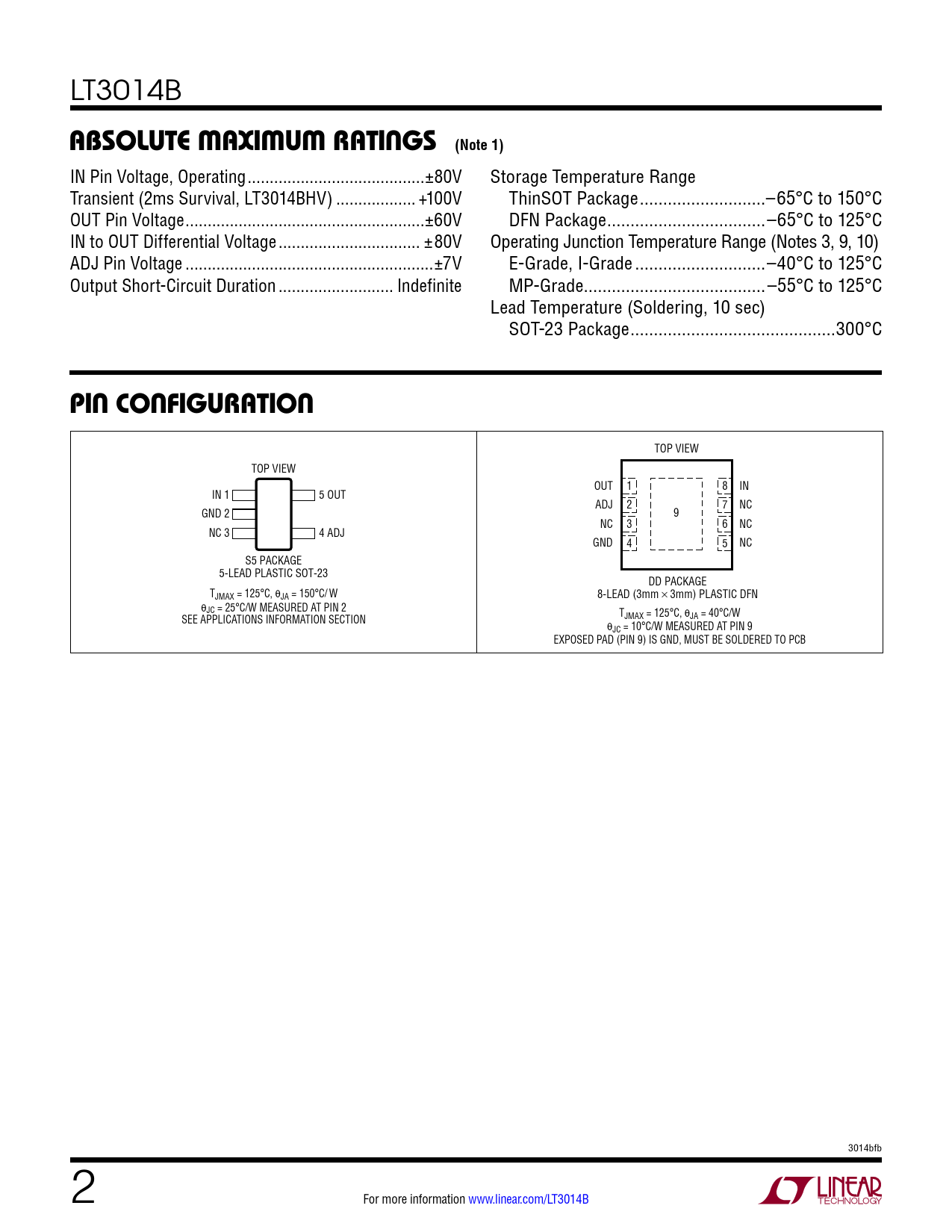

LT3014B
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage, Operating ..±80V Storage Temperature Range Transient (2ms Survival, LT3014BHV) .. +100V ThinSOT Package ...–65°C to 150°C OUT Pin Voltage ..±60V DFN Package ..–65°C to 125°C IN to OUT Differential Voltage .. ±80V Operating Junction Temperature Range (Notes 3, 9, 10) ADJ Pin Voltage ..±7V E-Grade, I-Grade ..–40°C to 125°C Output Short-Circuit Duration .. Indefinite MP-Grade ...–55°C to 125°C Lead Temperature (Soldering, 10 sec) SOT-23 Package ..300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT 1 8 IN IN 1 5 OUT ADJ 2 7 NC GND 2 9 NC 3 6 NC NC 3 4 ADJ GND 4 5 NC S5 PACKAGE 5-LEAD PLASTIC SOT-23 DD PACKAGE TJMAX = 125°C, θJA = 150°C/ W 8-LEAD (3mm × 3mm) PLASTIC DFN θJC = 25°C/W MEASURED AT PIN 2 SEE APPLICATIONS INFORMATION SECTION TJMAX = 125°C, θJA = 40°C/W θJC = 10°C/W MEASURED AT PIN 9 EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB 3014bfb 2 For more information www.linear.com/LT3014B Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information
