| Manufacturer | Analog Devices |
| Description | Dual 3A Boost/Inverting/SEPIC DC/DC Converter with Fault Protection |
| Pages / Page | 36 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| File Format / Size | PDF / 460 Kb |
| Document Language | English |

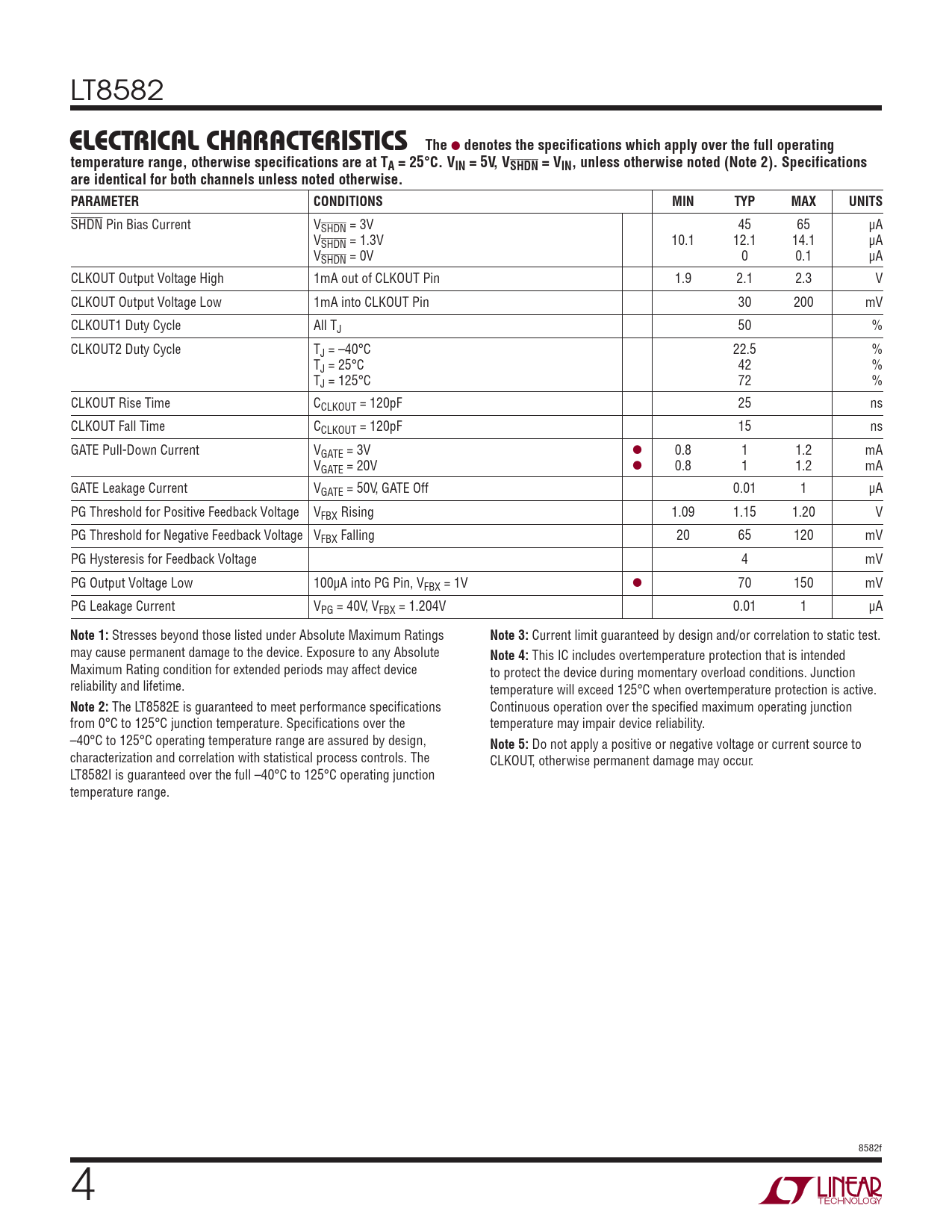

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT8582
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 5V, VSHDN = VIN, unless otherwise noted (Note 2). Specifications are identical for both channels unless noted otherwise. PARAMETER CONDITIONS MIN TYP MAX UNITS
SHDN Pin Bias Current VSHDN = 3V 45 65 μA VSHDN = 1.3V 10.1 12.1 14.1 μA VSHDN = 0V 0 0.1 μA CLKOUT Output Voltage High 1mA out of CLKOUT Pin 1.9 2.1 2.3 V CLKOUT Output Voltage Low 1mA into CLKOUT Pin 30 200 mV CLKOUT1 Duty Cycle All TJ 50 % CLKOUT2 Duty Cycle TJ = –40°C 22.5 % TJ = 25°C 42 % TJ = 125°C 72 % CLKOUT Rise Time CCLKOUT = 120pF 25 ns CLKOUT Fall Time CCLKOUT = 120pF 15 ns GATE Pull-Down Current VGATE = 3V l 0.8 1 1.2 mA VGATE = 20V l 0.8 1 1.2 mA GATE Leakage Current VGATE = 50V, GATE Off 0.01 1 μA PG Threshold for Positive Feedback Voltage VFBX Rising 1.09 1.15 1.20 V PG Threshold for Negative Feedback Voltage VFBX Falling 20 65 120 mV PG Hysteresis for Feedback Voltage 4 mV PG Output Voltage Low 100μA into PG Pin, VFBX = 1V l 70 150 mV PG Leakage Current VPG = 40V, VFBX = 1.204V 0.01 1 μA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
Current limit guaranteed by design and/or correlation to static test. may cause permanent damage to the device. Exposure to any Absolute
Note 4:
This IC includes overtemperature protection that is intended Maximum Rating condition for extended periods may affect device to protect the device during momentary overload conditions. Junction reliability and lifetime. temperature will exceed 125°C when overtemperature protection is active.
Note 2:
The LT8582E is guaranteed to meet performance specifications Continuous operation over the specified maximum operating junction from 0°C to 125°C junction temperature. Specifications over the temperature may impair device reliability. –40°C to 125°C operating temperature range are assured by design,
Note 5:
Do not apply a positive or negative voltage or current source to characterization and correlation with statistical process controls. The CLKOUT, otherwise permanent damage may occur. LT8582I is guaranteed over the full –40°C to 125°C operating junction temperature range. 8582f 4 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM STATE DIAGRAM OPERATION APPLICATIONS INFORMATION APPENDIX TYPICAL APPLICATIONS PACKAGE DESCRIPTION TYPICAL APPLICATION RELATED PARTS
