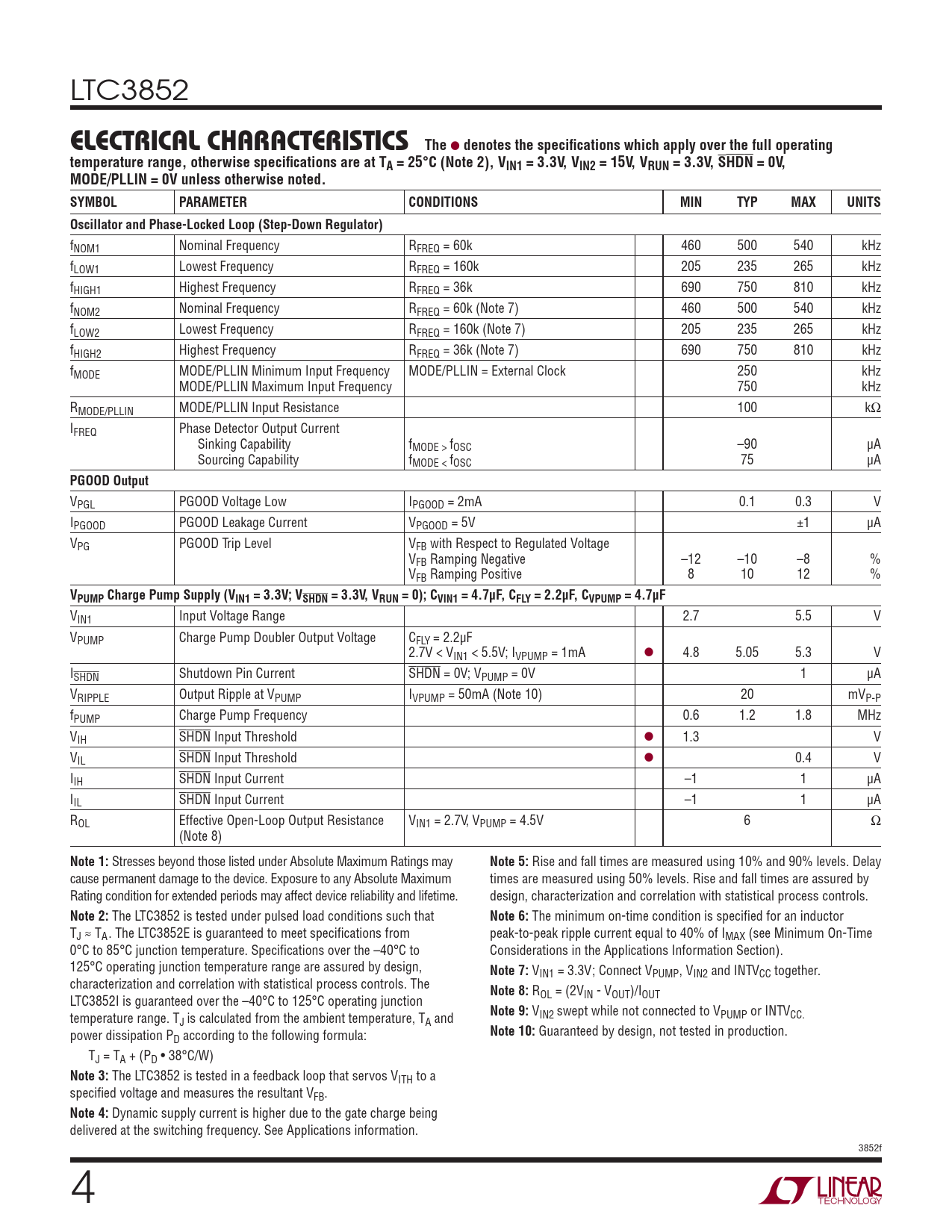

LTC3852
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C (Note 2), VIN1 = 3.3V, VIN2 = 15V, VRUN = 3.3V, SHDN = 0V, MODE/PLLIN = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Oscillator and Phase-Locked Loop (Step-Down Regulator)
fNOM1 Nominal Frequency RFREQ = 60k 460 500 540 kHz fLOW1 Lowest Frequency RFREQ = 160k 205 235 265 kHz fHIGH1 Highest Frequency RFREQ = 36k 690 750 810 kHz fNOM2 Nominal Frequency RFREQ = 60k (Note 7) 460 500 540 kHz fLOW2 Lowest Frequency RFREQ = 160k (Note 7) 205 235 265 kHz fHIGH2 Highest Frequency RFREQ = 36k (Note 7) 690 750 810 kHz fMODE MODE/PLLIN Minimum Input Frequency MODE/PLLIN = External Clock 250 kHz MODE/PLLIN Maximum Input Frequency 750 kHz RMODE/PLLIN MODE/PLLIN Input Resistance 100 kΩ IFREQ Phase Detector Output Current Sinking Capability fMODE > fOSC –90 μA Sourcing Capability fMODE < fOSC 75 μA
PGOOD Output
VPGL PGOOD Voltage Low IPGOOD = 2mA 0.1 0.3 V IPGOOD PGOOD Leakage Current VPGOOD = 5V ±1 μA VPG PGOOD Trip Level VFB with Respect to Regulated Voltage VFB Ramping Negative –12 –10 –8 % VFB Ramping Positive 8 10 12 %
VPUMP Charge Pump Supply (VIN1 = 3.3V; VSHDN = 3.3V, VRUN = 0); CVIN1 = 4.7μF, CFLY = 2.2μF, CVPUMP = 4.7μF
VIN1 Input Voltage Range 2.7 5.5 V VPUMP Charge Pump Doubler Output Voltage CFLY = 2.2μF 2.7V < VIN1 < 5.5V; IVPUMP = 1mA l 4.8 5.05 5.3 V ISHDN Shutdown Pin Current SHDN = 0V; VPUMP = 0V 1 μA VRIPPLE Output Ripple at VPUMP IVPUMP = 50mA (Note 10) 20 mVP-P fPUMP Charge Pump Frequency 0.6 1.2 1.8 MHz VIH SHDN Input Threshold l 1.3 V VIL SHDN Input Threshold l 0.4 V IIH SHDN Input Current –1 1 μA IIL SHDN Input Current –1 1 μA ROL Effective Open-Loop Output Resistance VIN1 = 2.7V, VPUMP = 4.5V 6 Ω (Note 8)
