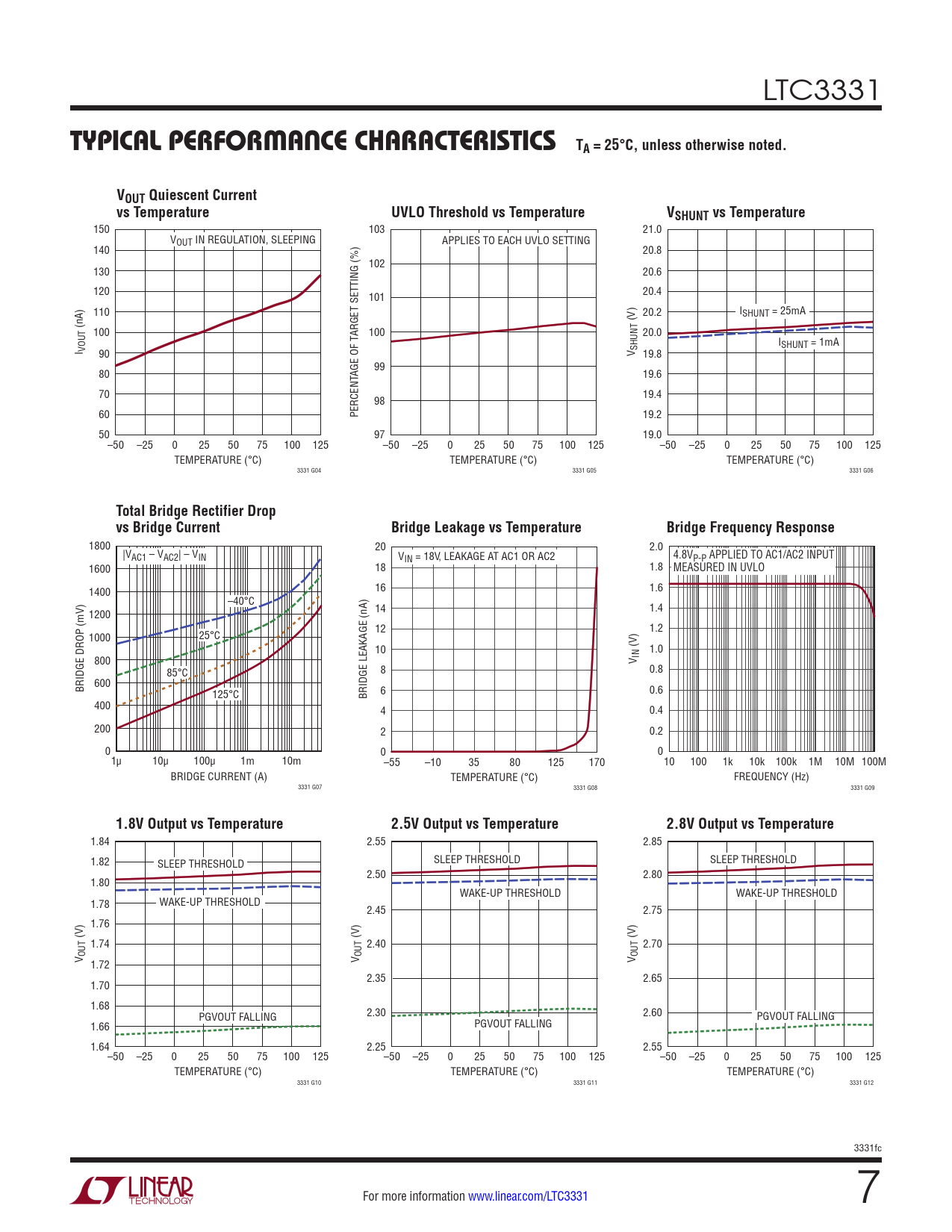

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. VOUT Quiescent Current. vs Temperature
