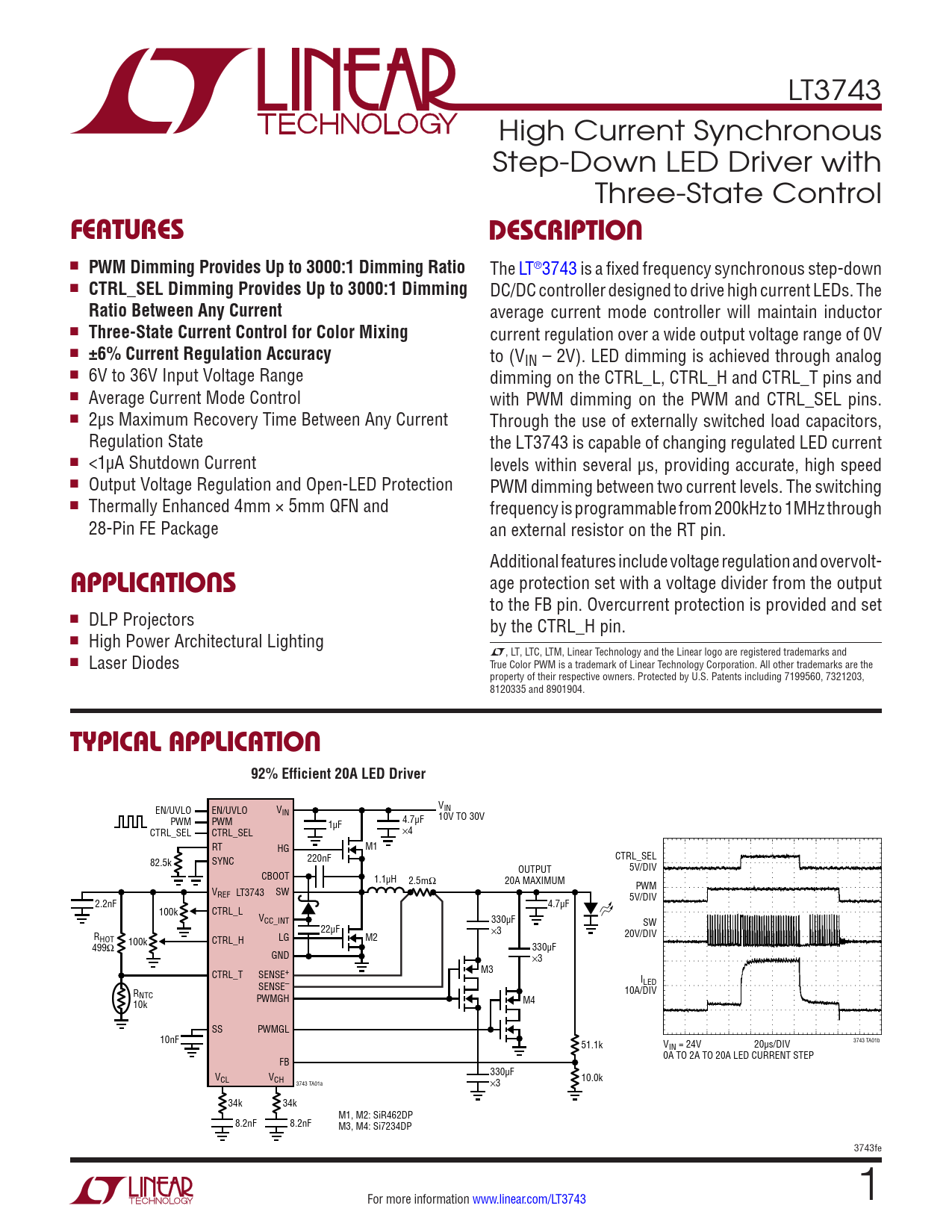

LT3743 High Current Synchronous Step-Down LED Driver with Three-State Control
FEATURES DESCRIPTION
n
PWM Dimming Provides Up to 3000:1 Dimming Ratio
The LT®3743 is a fixed frequency synchronous step-down n
CTRL_SEL Dimming Provides Up to 3000:1 Dimming
DC/DC controller designed to drive high current LEDs. The
Ratio Between Any Current
average current mode controller will maintain inductor n
Three-State Current Control for Color Mixing
current regulation over a wide output voltage range of 0V n
±6% Current Regulation Accuracy
to (VIN – 2V). LED dimming is achieved through analog n 6V to 36V Input Voltage Range dimming on the CTRL_L, CTRL_H and CTRL_T pins and n Average Current Mode Control with PWM dimming on the PWM and CTRL_SEL pins. n 2µs Maximum Recovery Time Between Any Current Through the use of externally switched load capacitors, Regulation State the LT3743 is capable of changing regulated LED current n <1µA Shutdown Current levels within several µs, providing accurate, high speed n Output Voltage Regulation and Open-LED Protection PWM dimming between two current levels. The switching n Thermally Enhanced 4mm × 5mm QFN and frequency is programmable from 200kHz to 1MHz through 28-Pin FE Package an external resistor on the RT pin. Additional features include voltage regulation and overvolt-
APPLICATIONS
age protection set with a voltage divider from the output to the FB pin. Overcurrent protection is provided and set n DLP Projectors by the CTRL_H pin. n High Power Architectural Lighting L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and n Laser Diodes True Color PWM is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners. Protected by U.S. Patents including 7199560, 7321203, 8120335 and 8901904.
TYPICAL APPLICATION 92% Efficient 20A LED Driver
