Datasheet AD7981 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | High Temperature, 16-Bit, 600 kSPS PulSAR ADC |
| Pages / Page | 26 / 6 — AD7981. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. … |
| Revision | B |
| File Format / Size | PDF / 2.1 Mb |
| Document Language | English |
AD7981. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 16

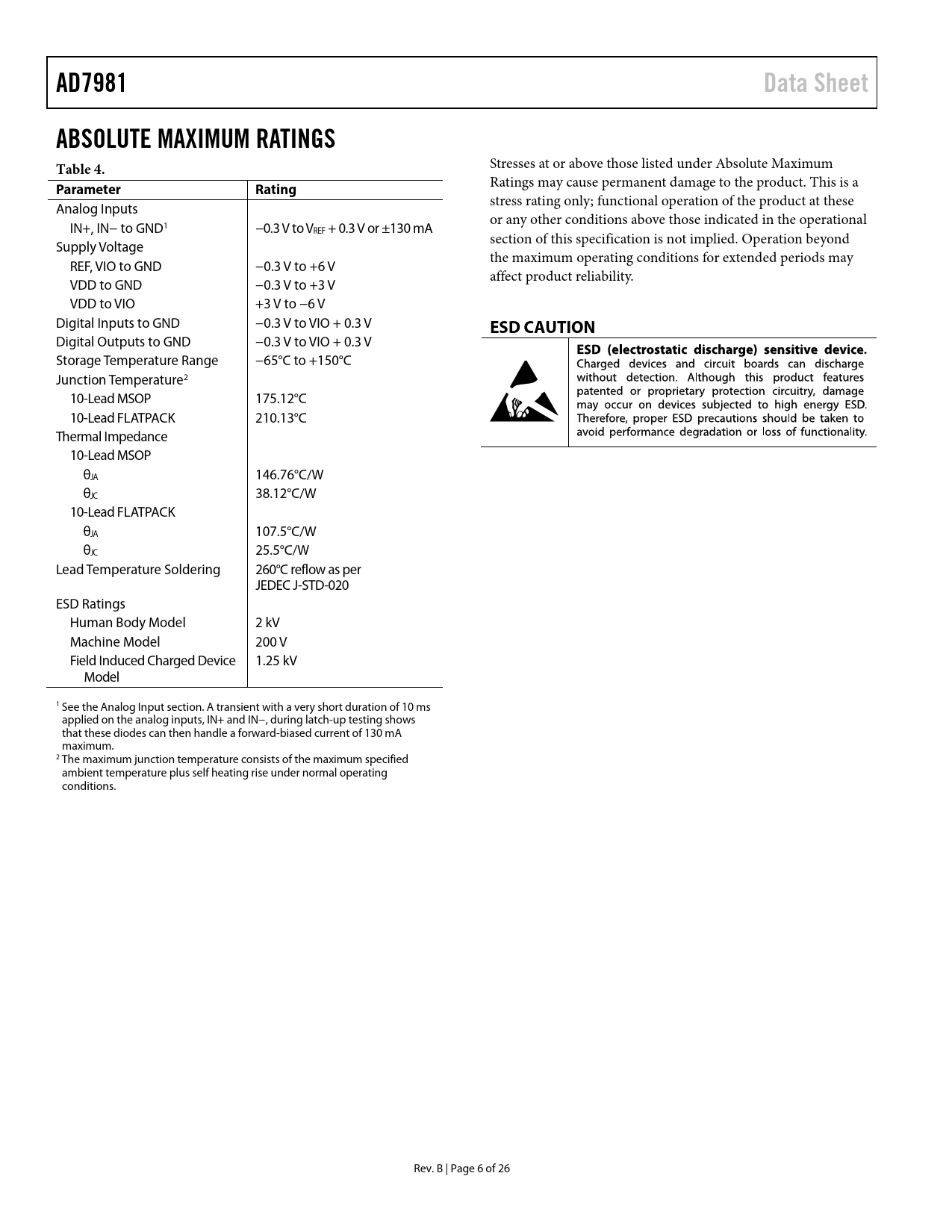

AD7981 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Analog Inputs or any other conditions above those indicated in the operational IN+, IN− to GND1 −0.3 V to VREF + 0.3 V or ±130 mA section of this specification is not implied. Operation beyond Supply Voltage the maximum operating conditions for extended periods may REF, VIO to GND −0.3 V to +6 V affect product reliability. VDD to GND −0.3 V to +3 V VDD to VIO +3 V to −6 V Digital Inputs to GND −0.3 V to VIO + 0.3 V
ESD CAUTION
Digital Outputs to GND −0.3 V to VIO + 0.3 V Storage Temperature Range −65°C to +150°C Junction Temperature2 10-Lead MSOP 175.12°C 10-Lead FLATPACK 210.13°C Thermal Impedance 10-Lead MSOP θJA 146.76°C/W θ JC 38.12°C/W 10-Lead FLATPACK θJA 107.5°C/W θJC 25.5°C/W Lead Temperature Soldering 260°C reflow as per JEDEC J-STD-020 ESD Ratings Human Body Model 2 kV Machine Model 200 V Field Induced Charged Device 1.25 kV Model 1 See the Analog Input section. A transient with a very short duration of 10 ms applied on the analog inputs, IN+ and IN−, during latch-up testing shows that these diodes can then handle a forward-biased current of 130 mA maximum. 2 The maximum junction temperature consists of the maximum specified ambient temperature plus self heating rise under normal operating conditions. Rev. B | Page 6 of 26 Document Outline FEATURES APPLICATIONS TYPICAL APPLICATION CIRCUIT GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION Transfer Functions TYPICAL CONNECTION DIAGRAM ANALOG INPUT DRIVER AMPLIFIER CHOICE VOLTAGE REFERENCE INPUT POWER SUPPLY DIGITAL INTERFACE \CS MODE, 3-WIRE WITHOUT A BUSY INDICATOR \CS MODE, 3-WIRE WITH A BUSY INDICATOR \CS MODE, 4-WIRE WITHOUT A BUSY INDICATOR \CS MODE, 4-WIRE WITH A BUSY INDICATOR CHAIN MODE WITHOUT A BUSY INDICATOR CHAIN MODE WITH A BUSY INDICATOR APPLICATIONS INFORMATION PRINTED CIRCUIT BOARD (PCB) LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE
