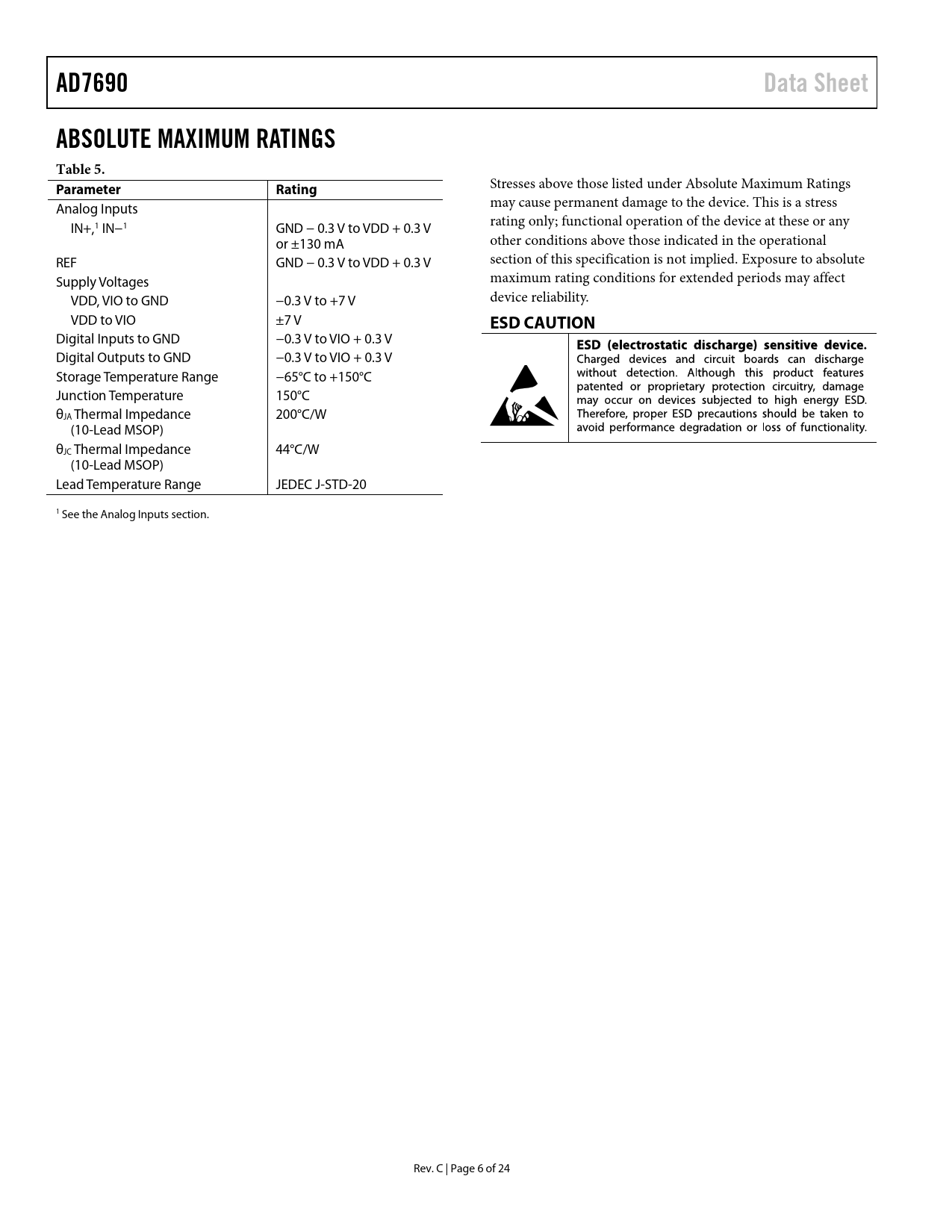

AD7690 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 5. Parameter Rating
Stresses above those listed under Absolute Maximum Ratings Analog Inputs may cause permanent damage to the device. This is a stress IN+,1 IN−1 GND − 0.3 V to VDD + 0.3 V rating only; functional operation of the device at these or any or ±130 mA other conditions above those indicated in the operational REF GND − 0.3 V to VDD + 0.3 V section of this specification is not implied. Exposure to absolute Supply Voltages maximum rating conditions for extended periods may affect VDD, VIO to GND −0.3 V to +7 V device reliability. VDD to VIO ±7 V
ESD CAUTION
Digital Inputs to GND −0.3 V to VIO + 0.3 V Digital Outputs to GND −0.3 V to VIO + 0.3 V Storage Temperature Range −65°C to +150°C Junction Temperature 150°C θJA Thermal Impedance 200°C/W (10-Lead MSOP) θJC Thermal Impedance 44°C/W (10-Lead MSOP) Lead Temperature Range JEDEC J-STD-20 1 See the Analog Inputs section. Rev. C | Page 6 of 24 Document Outline FEATURES APPLICATIONS APPLICATION EXAMPLE GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION Transfer Functions TYPICAL CONNECTION DIAGRAM ANALOG INPUTS DRIVER AMPLIFIER CHOICE SINGLE-TO-DIFFERENTIAL DRIVER VOLTAGE REFERENCE INPUT POWER SUPPLY SUPPLYING THE ADC FROM THE REFERENCE DIGITAL INTERFACE CS MODE, 3-WIRE WITHOUT BUSY INDICATOR CS MODE, 3-WIRE WITH BUSY INDICATOR CS MODE, 4-WIRE WITHOUT BUSY INDICATOR CS MODE, 4-WIRE WITH BUSY INDICATOR CHAIN MODE WITHOUT BUSY INDICATOR CHAIN MODE WITH BUSY INDICATOR APPLICATION HINTS LAYOUT EVALUATING THE AD7690 PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE
