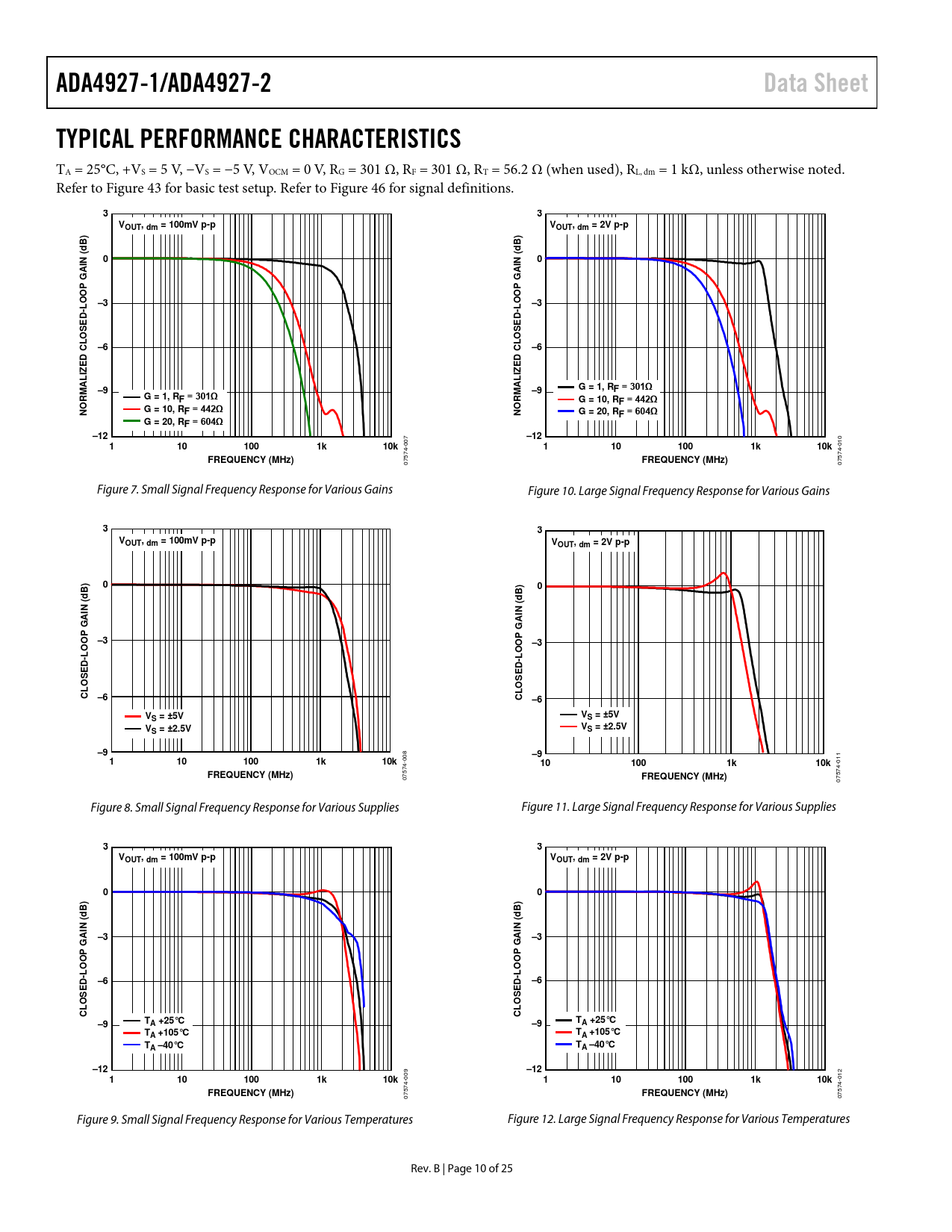

ADA4927-1/ADA4927-2 Data Sheet TYPICAL PERFORMANCE CHARACTERISTICS
TA = 25°C, +VS = 5 V, −VS = −5 V, VOCM = 0 V, RG = 301 Ω, RF = 301 Ω, RT = 56.2 Ω (when used), RL, dm = 1 kΩ, unless otherwise noted. Refer to Figure 43 for basic test setup. Refer to Figure 46 for signal definitions.
